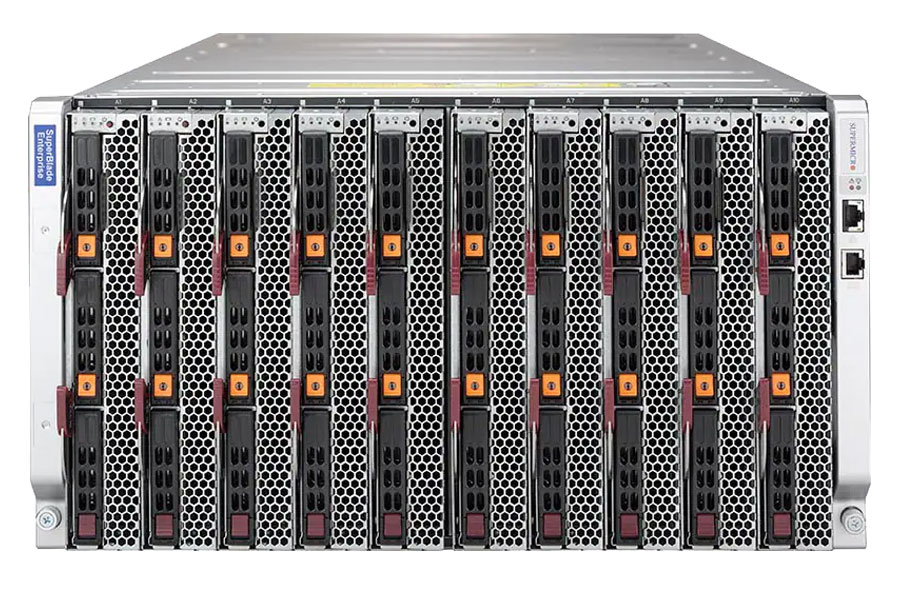

SBE-610J

Supermicro SuperBlade 6U up to 10 Hot-Plug Processor Blade Enclosure

Available Models:
SBE-610J-822 - Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

SBE-610J-622 - Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies + 2 cooling fans

SBE-610J-422 - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4 cooling fans

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

Quantity Range: 10

WARRANTY ▼

Qty / Pick	Option	Price
	*1 Year Parts Replacement Warranty
	3 Year Parts Replacement Warranty - Server Value $500 to $2000
	3 Year Parts Replacement Warranty - Server Value $2001 to $4000
	3 Year Parts Replacement Warranty - Server Value $4001 to $7000
	3 Year Parts Replacement Warranty - Server Value $7001 to $10000
	3 Year Parts Replacement Warranty - Server Value Over $10000

Blade ▼

Qty / Pick	Option	Price
	*Please contact our sales for more blade options
	SBI-610P-1T2N
	SBI-610P-1C2N
	SBI-620P-1C3N
	SBI-620P-1T3N
	SBI-611E-1C2N
	SBI-611E-1T2N
	SBI-621E-1C3N
	SBI-621E-1T3N

Technical Specifications

Detailed Specification	Processor Blade: Up to 10x 1-socket blade servers Up to 10x 2-socket blade servers LED: Power LED, Fault LED Networking: Ethernet Switch – Up to 4x modules For compatibility, see the Blade Matrix or contact your Supermicro representative Switch Modules must be purchased separately Management Module: 2 CMMs for remote system management with software Management Module(s) must be purchased separately Power Supplies: Up to 8 hot-plug 2200W Titanium power supplies Cooling Design: Up to 8 cooling fans in PWS modules Dimensions (HxWxD): 10.5" x 17.6" x 32" Available Models: SBE-610J-822 - Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies SBE-610J-622 - Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies + 2 cooling fans SBE-610J-422 - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4 cooling fans

Detailed Specification

Processor Blade:
Up to 10x 1-socket blade servers
Up to 10x 2-socket blade servers

LED:
Power LED, Fault LED

Networking:
Ethernet Switch – Up to 4x modules
For compatibility, see the Blade Matrix or contact your Supermicro representative
Switch Modules must be purchased separately

Management Module:
2 CMMs for remote system management with software
Management Module(s) must be purchased separately

Power Supplies:
Up to 8 hot-plug 2200W Titanium power supplies

Cooling Design:
Up to 8 cooling fans in PWS modules

Dimensions (HxWxD):
10.5" x 17.6" x 32"

Available Models:
SBE-610J-822 - Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

SBE-610J-622 - Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies + 2 cooling fans

SBE-610J-422 - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4 cooling fans
