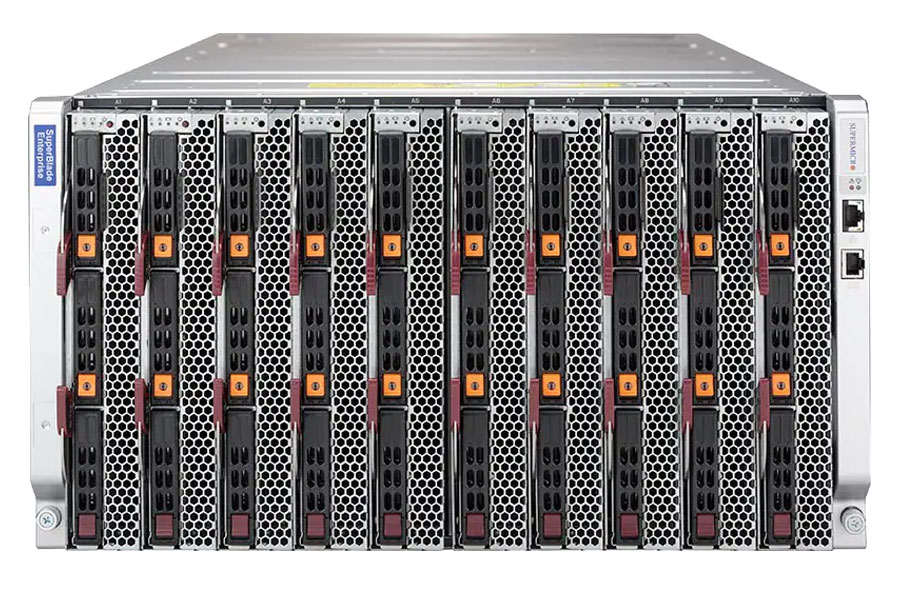

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Detailed Specification | Processor Blade:
Up to 10 hot-swappable full-height single-width 1-socket or 2-socket blade servers Up to 5 hot-swappable full-height double-width 1-socket or 2-socket blade servers LED: Power LED, Fault LED Networking: Ethernet Switch – Up to 4x modules For compatibility, see the Blade Matrix or contact your Supermicro representative Switch Modules must be purchased separately Management Module: 2 CMMs for remote system management with software Management Module(s) must be purchased separately Power Supplies: Up to 8 hot-plug 2200/3000W Titanium power supplies Cooling Design: Up to 8 cooling fans in PWS modules Dimensions (HxWxD): 10.5" x 17.6" x 32" Available Models: SBE-610J2-430 - Up to 4 hot-swappable 3000W Titanium (96% efficiency) power supplies SBE-610J2-630 - Up to 6 hot-swappable 3000W Titanium (96% efficiency) power supplies SBE-610J2-830 - Up to 8 hot-swappable 3000W Titanium (96% efficiency) power supplies SBE-610J2-422 - Up to 4 hot-swappable 2200W Titanium (96% efficiency) power supplies SBE-610J2-622 - Up to 6 hot-swappable 2200W Titanium (96% efficiency) power supplies SBE-610J2-822 - Up to 8 hot-swappable 2200W Titanium (96% efficiency) power supplies |
|---|
