SBE-820J2

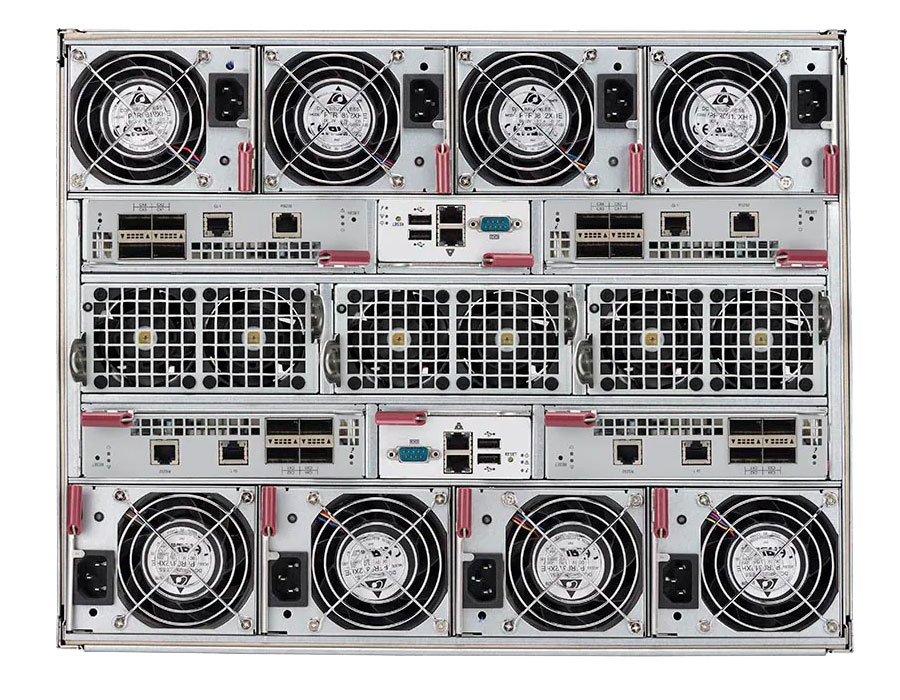

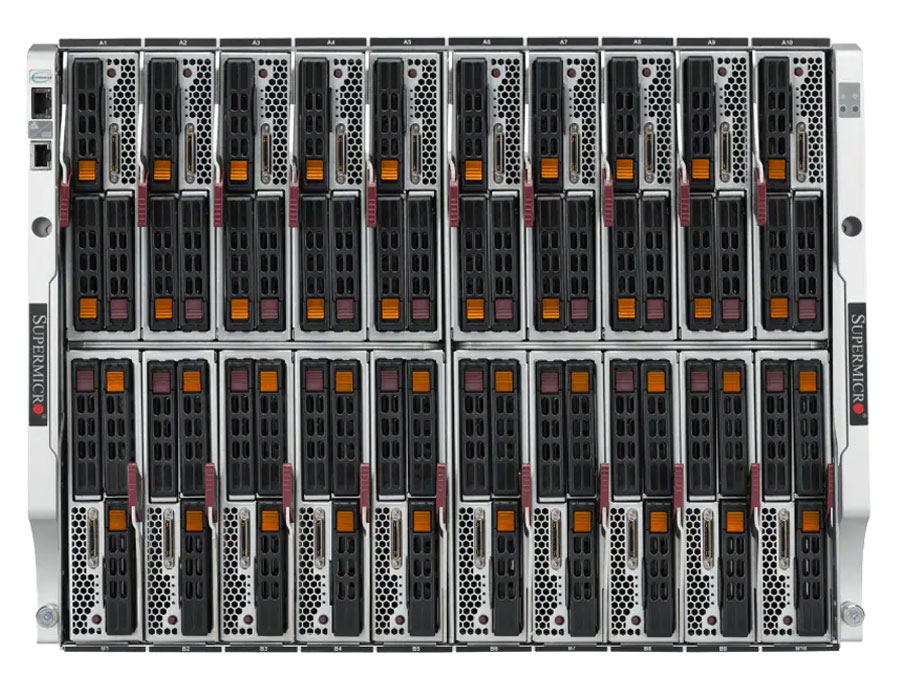

Supermicro Superblade up to 20 Hot-Plug Twin Processor Blade Enclosure

Available Models:
SBE-820J2-630 - Up to 6 hot-swappable 3000W Titanium (96% efficiency) power supplies
SBE-820J2-830 - Up to 8 hot-swappable 3000W Titanium (96% efficiency) power supplies
SBE-820J2-422 - Up to 4 hot-swappable 2200W Titanium (96% efficiency) power supplies
SBE-820J2-622 - Up to 6 hot-swappable 2200W Titanium (96% efficiency) power supplies
SBE-820J2-822 - Up to 8 hot-swappable 2200W Titanium (96% efficiency) power supplies

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

Quantity Range: 20

WARRANTY ▼

Qty / Pick	Option	Price
	*1 Year Parts Replacement Warranty
	3 Year Parts Replacement Warranty - Server Value $500 to $2000
	3 Year Parts Replacement Warranty - Server Value $2001 to $4000
	3 Year Parts Replacement Warranty - Server Value $4001 to $7000
	3 Year Parts Replacement Warranty - Server Value $7001 to $10000
	3 Year Parts Replacement Warranty - Server Value Over $10000

Blade ▼

Qty / Pick	Option	Price
	*Please contact our sales for more blade options
	SBI-421E-1T3N
	SBI-411E-1G

Technical Specifications

Detailed Specification	Processor Blade: Up to 20 half-height 2-socket blade servers Up to 10 full-height 4-socket blade servers Mixed blade servers in a single enclosure LED: Power LED, Fault LED Networking: Ethernet Switch – Up to 4x modules For compatibility, see the Blade Matrix or contact your Supermicro representative Switch Modules must be purchased separately Management Module: Up to 2 CMMs for remote system management with software Management Module(s) must be purchased separately Power Supplies: Up to 8 hot-plug 2200/3000W Titanium power supplies Cooling Design: Up to 8 cooling fans in PWS modules 3 optional cooling fan modules (PWS-DF005-2F) Dimensions (HxWxD): 14" x 17.6" x 32" Available Models: SBE-820J2-630 - Up to 6 hot-swappable 3000W Titanium (96% efficiency) power supplies SBE-820J2-830 - Up to 8 hot-swappable 3000W Titanium (96% efficiency) power supplies SBE-820J2-422 - Up to 4 hot-swappable 2200W Titanium (96% efficiency) power supplies SBE-820J2-622 - Up to 6 hot-swappable 2200W Titanium (96% efficiency) power supplies SBE-820J2-822 - Up to 8 hot-swappable 2200W Titanium (96% efficiency) power supplies

Detailed Specification

Processor Blade:
Up to 20 half-height 2-socket blade servers
Up to 10 full-height 4-socket blade servers
Mixed blade servers in a single enclosure

LED:
Power LED, Fault LED

Networking:
Ethernet Switch – Up to 4x modules
For compatibility, see the Blade Matrix or contact your Supermicro representative
Switch Modules must be purchased separately

Management Module:
Up to 2 CMMs for remote system management with software
Management Module(s) must be purchased separately

Power Supplies:
Up to 8 hot-plug 2200/3000W Titanium power supplies

Cooling Design:
Up to 8 cooling fans in PWS modules
3 optional cooling fan modules (PWS-DF005-2F)

Dimensions (HxWxD):
14" x 17.6" x 32"
