1124US-TNRP

1124US-TNRP

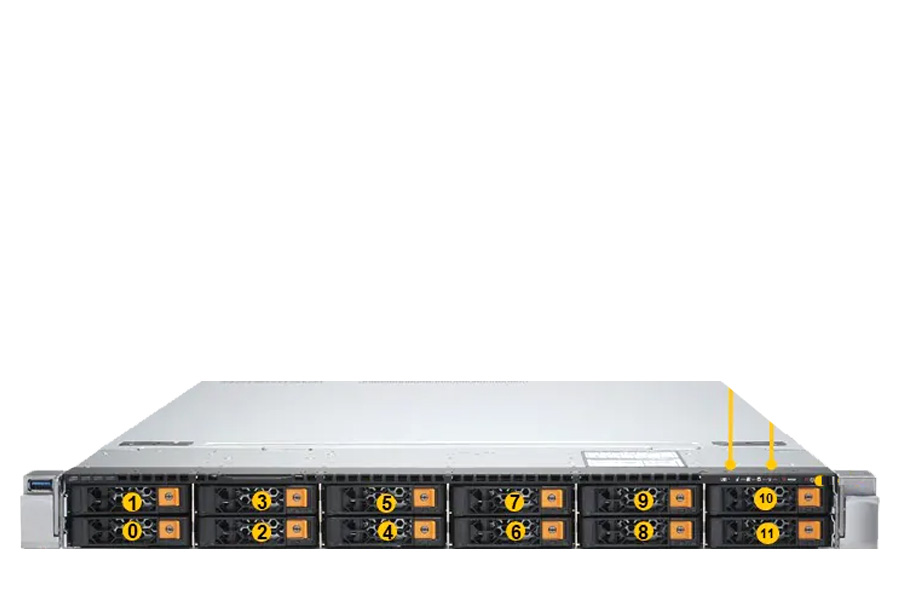

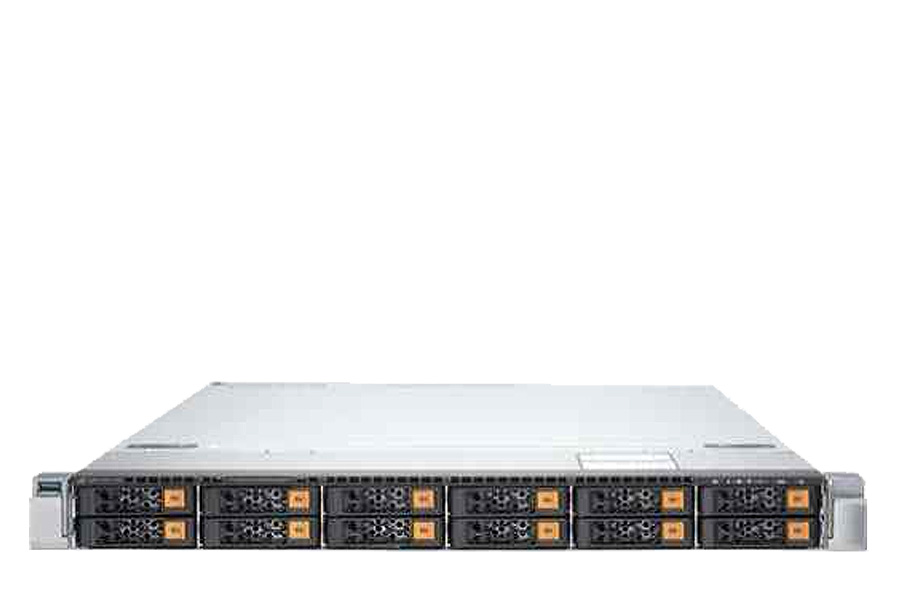

Supermicro 1U 12Bays Dual AMD Processor Rackmount Server

  • Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
  • Expansion slots: 2 PCI-E 4.0 x16 (FH, 9.5"L), 1 PCI-E 4.0 x16 (LP), 1 PCI-E 4.0 x16 (internal proprietary LP slot)
  • Integrated IPMI 2.0 + KVM with dedicated LAN, Software Out of Band License, key (SFT-OOB-LIC) included for OOB BIOS management
  • Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel X710-TM4
  • Drive Bays: 12 Hot-swap 2.5" U.2 NVMe drive bays or SATA3/SAS3 (via optional SAS kit)
  • 1200W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)
  • Virtualization, Cloud Computing, High End Enterprise Server

Storage configuration notice:
External:
12x 2.5" Hot-swap U.2 Drive Bays

To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs & at least 24/32 cores per CPU is recommended). Minimum requirement is 2 CPUs, 4 DIMMs, 1 storage drive.

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

CPU ▼
Qty / Pick Option Price
AMD EPYC 3rd Gen MILAN 7713 64 Core 2.00GHz
AMD ROME EPYC™ 7252 Processor (3.1Ghz,120W)
AMD ROME EPYC™ 7262 Processor (3.2Ghz,155W)
AMD ROME EPYC™ 7272 Processor (2.9Ghz,120W)
AMD ROME EPYC™ 7282 Processor (2.8Ghz,120W)
AMD ROME EPYC™ 7302 Processor (3.0Ghz,155W)
AMD ROME EPYC™ 7302P Processor (3.0Ghz,155W)
AMD ROME EPYC™ 7352 Processor (2.3Ghz,155W)
AMD ROME EPYC™ 7402 Processor (2.8Ghz,180W)
AMD ROME EPYC™ 7402P Processor (2.8Ghz,180W)
AMD ROME EPYC™ 7452 Processor (2.35Ghz,155W)
AMD ROME EPYC™ 7502 Processor (2.5Ghz,180W)
AMD ROME EPYC™ 7502P Processor (2.5Ghz,180W)
AMD ROME EPYC™ 7542 Processor (2.9Ghz,225W)
AMD ROME EPYC™ 7552 Processor (2.2Ghz,200W)
AMD ROME EPYC™ 7642 Processor (2.3Ghz,225W)
AMD ROME EPYC™ 7702 Processor (2.0Ghz,200W)
AMD ROME EPYC™ 7702P Processor (2.0Ghz,200W)
AMD EPYC 3rd Gen MILAN 7763 64 Core 2.45GHz
AMD EPYC 3rd Gen MILAN 7713P 64 Core 2.00GHz
AMD EPYC 3rd Gen MILAN 7663 56 Core 2.00GHz
AMD EPYC 3rd Gen MILAN 7643 48 Core 2.30GHz
AMD EPYC 3rd Gen MILAN 75F3 32 Core 2.95GHz
AMD EPYC 3rd Gen MILAN 7543 32 Core 2.80GHz
AMD EPYC 3rd Gen MILAN 7543P 32 Core 2.80GHz
AMD EPYC 3rd Gen MILAN 7513 32 Core 2.60GHz
AMD EPYC 3rd Gen MILAN 74F3 24 Core 3.20GHz
AMD EPYC 3rd Gen MILAN 7453 28 Core 2.75GHz
AMD EPYC 3rd Gen MILAN 7443 24 Core 2.85GHz
AMD EPYC 3rd Gen MILAN 7443P 24 Core 2.85GHz
AMD EPYC 3rd Gen MILAN 7413 24 Core 2.65GHz
AMD EPYC 3rd Gen MILAN 73F3 16 Core 3.50GHz
AMD EPYC 3rd Gen MILAN 7343 16 Core 3.20GHz
AMD EPYC 3rd Gen MILAN 7313 16 Core 3.00GHz
AMD EPYC 3rd Gen MILAN 7313P 16 Core 3.00GHz
AMD EPYC 3rd Gen MILAN 72F3 8 Core 3.70GHz
MEMORY ▼
No options configured for this category.
NETWORK CARD ▼
Qty / Pick Option Price
*No Network Card
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
OPERATING SYSTEM ▼
Qty / Pick Option Price
*Please contact our sales for more operating system options
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Microsoft Windows Server 2025 Standard 64-bit-1User
WARRANTY ▼
Qty / Pick Option Price
*1 Year Parts Replacement Warranty
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
RAID CONTROLLER CARD ▼
Qty / Pick Option Price
*Please contact our sales rep for special requirements
GRAID SupremeRAID SR-1000 card
NVMe U.2/U.3 ▼
Qty / Pick Option Price
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

Technical Specifications

Processor
CPU：
Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
Socket SP3
Supports CPU TDP up to 280W

Cores：
Up to 64 Cores

Note：
Certain CPUs with high TDP may be supported only under specific conditions. Please contact Technical Support for additional information about specialized system optimization
Memory
Memory Capacity：
32 DIMM slots
Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM
8-channel memory bus

Memory Type：
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs

DIMM Sizes：
4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage：
1.2V

Error Detection：
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chassis
1U Rackmount Chassis
Dimensions
Height:
1.7" (43mm)
Width:
17.2" (437mm)
Depth:
29.1" (739mm)
Drive Bays
Hot-swap:
12 Hot-swap 2.5" U.2 NVMe drive bays

HDD Backplane:
Supports 12 NVMe or 12 SAS3 HDD or 12 SATA3
Expansion Slots
2x PCI-E 4.0 x16 (FH/HL, 9.5"L)
1x PCI-E 4.0 x16 (LP)
1x PCI-E 4.0 x16 (internal proprietary LP slot)
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
Power Supply
1200W Redundant Power Supplies with PMBus
Total Output Power:
800W: 100 – 127Vac
1200W: 200 – 240Vac
1200W: 200 -240Vdc (for CCC only)
Dimension (W x H x L):
73.5 x 40 x 203 mm
Input:
100-127Vac / 9.8 - 7A / 50-60Hz
200-240Vac / 7.5 - 6A / 50-60Hz
200-240Vdc / 7.5 - 6A (for CCC only)
+12V:
Max: 66.7A / Min: 0A (100-127Vac)
Max: 100A / Min: 0A (200-240Vac)
Max: 100A / Min: 0A (200-240Vdc)
+12Vsb:
Max: 2.1A / Min: 0A
Output Type:
25 Pairs Gold Finger Connector
Certification:
Titanium Level
Onboard Devices
Chipset:
System on Chip (SoC)

SATA:
SATA3 (6Gbps)

Network Connectivity:
Networking options provided via Ultra Riser card

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics:
ASPEED AST2500 BMC
Front Panel
Buttons:
Power On/Off button
System UID button
LEDs:
Power LED
Hard drive activity LED
Network activity LEDs
UID LED
Input / Output
NVMe:
12 NVMe ports (default)

LAN:
Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel X710-TM4
1 RJ45 Dedicated IPMI LAN port

USB:
4 USB 3.0 ports
(2 rear + 1 Type A + 1 front)

VGA:
1 VGA port

SAS:
12 SAS3 ports support via optional SAS kit

SATA:
12 SATA3 ports support via optional kits

Others:
1 COM port (rear)
2 SATA DOM power connectors
TPM 2.0 header
Cooling
Fans:
8 Heavy duty fans with optimal fan speed control
Air Shroud:
1 Air Shroud
BIOS
BIOS Type:
AMI 128Mb SPI Flash EEPROM
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
10°C ~ 30°C (50°F ~ 86°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
Detailed Specification
PC Health Monitoring
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator

FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
