2024US-TRT

2024US-TRT

Supermicro 2U 12Bays Dual Processor Rackmount Server

  • Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
  • 3.Expansion slots:2 PCI-E 4.0 x16 (FH, 10.5" L) slots, 1 PCI-E 4.0 x16 (FH, 9.5" L) slot, 1 PCI-E 4.0 x16 (LP) slot, 1 PCI-E 4.0 x8 (FH, 9.5" L, in x16) slot, 1 PCI-E 4.0 x8 (internal proprietary LP in x16) slot
  • 4.Integrated IPMI 2.0 + KVM with dedicated LAN, Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
  • Dual 10GBase-T LAN ports via Intel® X710-AT2
  • 12 hot-swap 3.5" Drive Bays: 12 SATA3 by default or 8 SATA3 + 4 NVMe via optional tray or 12 SAS3 via optional SAS kit
  • 1600W Redundant Power Supplies
  • Titanium Level (96%+)(Full redundancy based on configuration and application load)
  • Virtualization, Cloud Computing, High End Enterprise Server, Hyperconverged Storage, Flexible Networking Options

Storage configuration notice:
External:

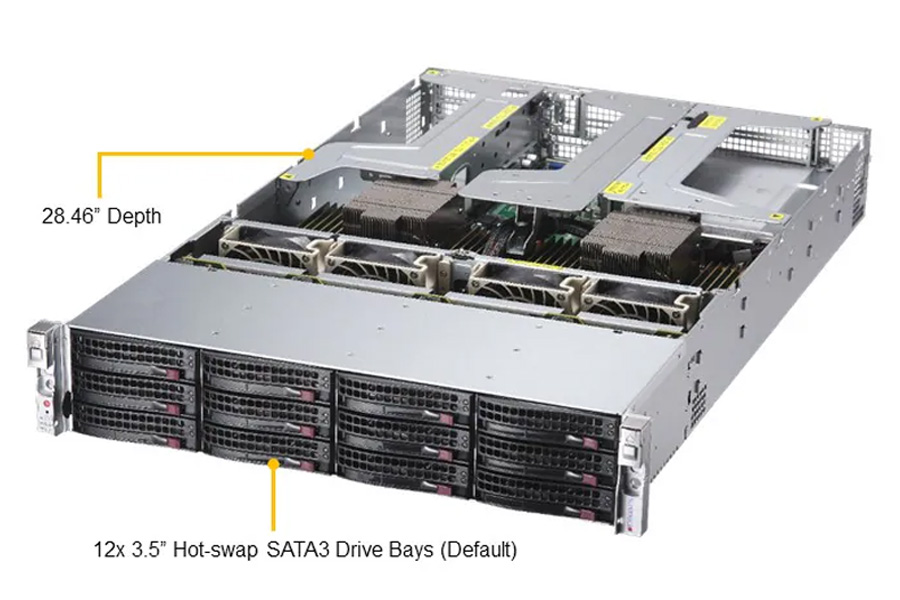

12x 3.5" Hot-swap Drive Bays

To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs is recommended). Minimum requirement is 2 CPUs, 4 DIMMs, 1 HDD/NVMe.

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

CPU ▼
Qty / Pick Option Price
AMD EPYC 3rd Gen MILAN 7713 64 Core 2.00GHz
AMD ROME EPYC™ 7252 Processor (3.1Ghz,120W)
AMD ROME EPYC™ 7262 Processor (3.2Ghz,155W)
AMD ROME EPYC™ 7272 Processor (2.9Ghz,120W)
AMD ROME EPYC™ 7282 Processor (2.8Ghz,120W)
AMD ROME EPYC™ 7302 Processor (3.0Ghz,155W)
AMD ROME EPYC™ 7302P Processor (3.0Ghz,155W)
AMD ROME EPYC™ 7352 Processor (2.3Ghz,155W)
AMD ROME EPYC™ 7402 Processor (2.8Ghz,180W)
AMD ROME EPYC™ 7402P Processor (2.8Ghz,180W)
AMD ROME EPYC™ 7452 Processor (2.35Ghz,155W)
AMD ROME EPYC™ 7502 Processor (2.5Ghz,180W)
AMD ROME EPYC™ 7502P Processor (2.5Ghz,180W)
AMD ROME EPYC™ 7542 Processor (2.9Ghz,225W)
AMD ROME EPYC™ 7552 Processor (2.2Ghz,200W)
AMD ROME EPYC™ 7642 Processor (2.3Ghz,225W)
AMD ROME EPYC™ 7702 Processor (2.0Ghz,200W)
AMD ROME EPYC™ 7702P Processor (2.0Ghz,200W)
AMD EPYC 3rd Gen MILAN 7763 64 Core 2.45GHz
AMD EPYC 3rd Gen MILAN 7713P 64 Core 2.00GHz
AMD EPYC 3rd Gen MILAN 7663 56 Core 2.00GHz
AMD EPYC 3rd Gen MILAN 7643 48 Core 2.30GHz
AMD EPYC 3rd Gen MILAN 75F3 32 Core 2.95GHz
AMD EPYC 3rd Gen MILAN 7543 32 Core 2.80GHz
AMD EPYC 3rd Gen MILAN 7543P 32 Core 2.80GHz
AMD EPYC 3rd Gen MILAN 7513 32 Core 2.60GHz
AMD EPYC 3rd Gen MILAN 74F3 24 Core 3.20GHz
AMD EPYC 3rd Gen MILAN 7453 28 Core 2.75GHz
AMD EPYC 3rd Gen MILAN 7443 24 Core 2.85GHz
AMD EPYC 3rd Gen MILAN 7443P 24 Core 2.85GHz
AMD EPYC 3rd Gen MILAN 7413 24 Core 2.65GHz
AMD EPYC 3rd Gen MILAN 73F3 16 Core 3.50GHz
AMD EPYC 3rd Gen MILAN 7343 16 Core 3.20GHz
AMD EPYC 3rd Gen MILAN 7313 16 Core 3.00GHz
AMD EPYC 3rd Gen MILAN 7313P 16 Core 3.00GHz
AMD EPYC 3rd Gen MILAN 72F3 8 Core 3.70GHz
MEMORY ▼
No options configured for this category.
Enterprise-Class HDD/SSD ▼
Qty / Pick Option Price
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
NETWORK CARD ▼
Qty / Pick Option Price
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
OPERATING SYSTEM ▼
Qty / Pick Option Price
*Please contact our sales for more operating system options
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Microsoft Windows Server 2025 Standard 64-bit-1User
WARRANTY ▼
Qty / Pick Option Price
*1 Year Parts Replacement Warranty
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000

Technical Specifications

Processor
CPU:
Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
Socket SP3
Supports CPU TDP up to 280W

Cores:
Up to 64 Cores

Chipset:
System on Chip (SoC)

Note:
Certain CPUs with high TDP higher than 225W may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
Memory
Memory Capacity:
32 DIMM slots
Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM
8-channel memory bus

Memory Type:
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs

DIMM Sizes:
4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage:
1.2V

Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chassis
2U Rackmount chassis
Dimensions
Height:
3.5" (89mm)
Width:
17.2" (437mm)
Depth:
28.46" (723mm)

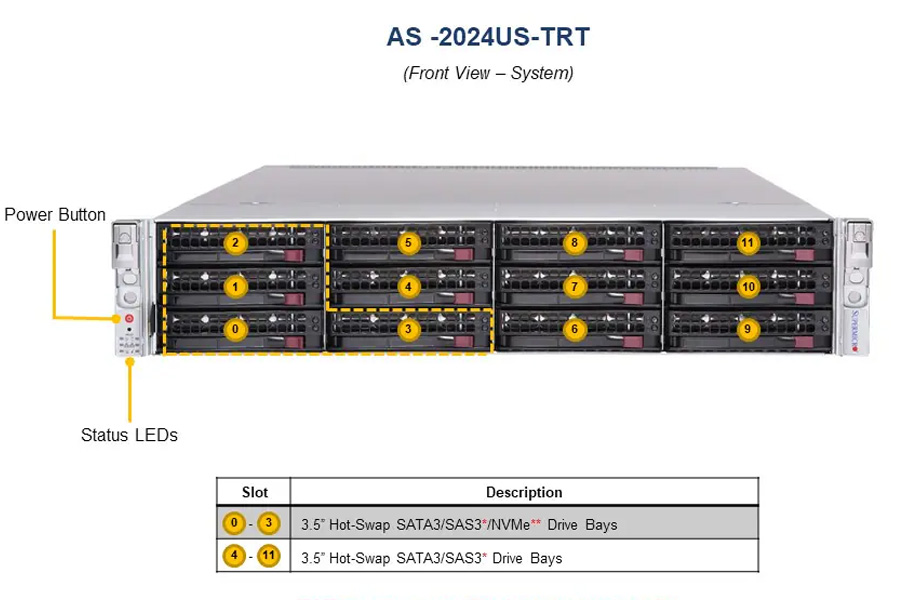

Drive Bays
Hot-swap:
12 hot-swap 3.5" Drive Bays:
12 SATA3 by default
or 8 SATA3 + 4 NVMe via optional kit
or 12 SAS3 via optional SAS kit
Expansion Slots
2 PCI-E 4.0 x16 (FH, 10.5" L) slots
1 PCI-E 4.0 x16 (FH, 9.5" L) slot
1 PCI-E 4.0 x16 (LP) slot
1 PCI-E 4.0 x8 (FH, 9.5" L, in x16) slot
1 PCI-E 4.0 x8 (internal proprietary LP in x16) slot
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers.)
Power Supply
1600W Redundant Power Supplies with PMBus
Total Output Power:
1600W/1000W

Dimension (W x H x L):
73.5 x 40 x 203 mm

Input:
100-127Vac / 13 - 9A / 50-60Hz
200-240Vac / 10 - 8A / 50-60Hz

+12V:
Max: 83.3A / Min: 0A (100-127Vac)
Max: 133A / Min: 0A (200-240Vac)

12Vsb:
Max: 2.1A / Min: 0A

Output Type:
25 Pairs Gold Finger Connector

Certification:
Titanium Level
Onboard Devices
SATA:
SATA3 (6 Gbps)
Graphics:
ASPEED AST2500 BMC
Front Panel
Buttons:
Power On/Off button
System Reset button

LEDs:
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED
Input / Output
SATA:
12 SATA3 (6 Gbps) ports

LAN:
Dual 10GBase-T LAN ports via Intel® X710-AT2
1 RJ45 Dedicated IPMI LAN port

USB:
3 USB 3.0 ports (2 rear + 1 Type A)

VGA:
1 VGA port

SAS:
12 SAS3 ports support via optional SAS kit

NVMe:
4 NVMe support via optional tray

Others:
1 COM port (rear)
2 SATA DOM power connector
TPM 1.2 header
Cooling
4 heavy-duty PWM fans with optimal fan speed control
BIOS
BIOS Type:
AMI 128Mb SPI Flash EEPROM

BIOS Features:
Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 5.1
USB Keyboard Support
SMBIOS 3.1.1
Operating Environment
RoHS:
RoHS Compliant

Environmental Spec.:
Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)

Note:
Support for operating 35°C is available in certain system configurations. Contact sales rep or Technical Support for more details.
Detailed Specification
PC Health Monitoring
CPU:
Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
CPU switching voltage regulator

FAN:
Up to 8-fan status tachometer monitoring
Up to eight 4-pin fan headers
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature:
Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 8x Fan connectors
I²C Temperature Sensing Logic

LED:
CPU / System Overheat LED
Other Features
Chassis Intrusion Detection
Chassis Intrusion Header
