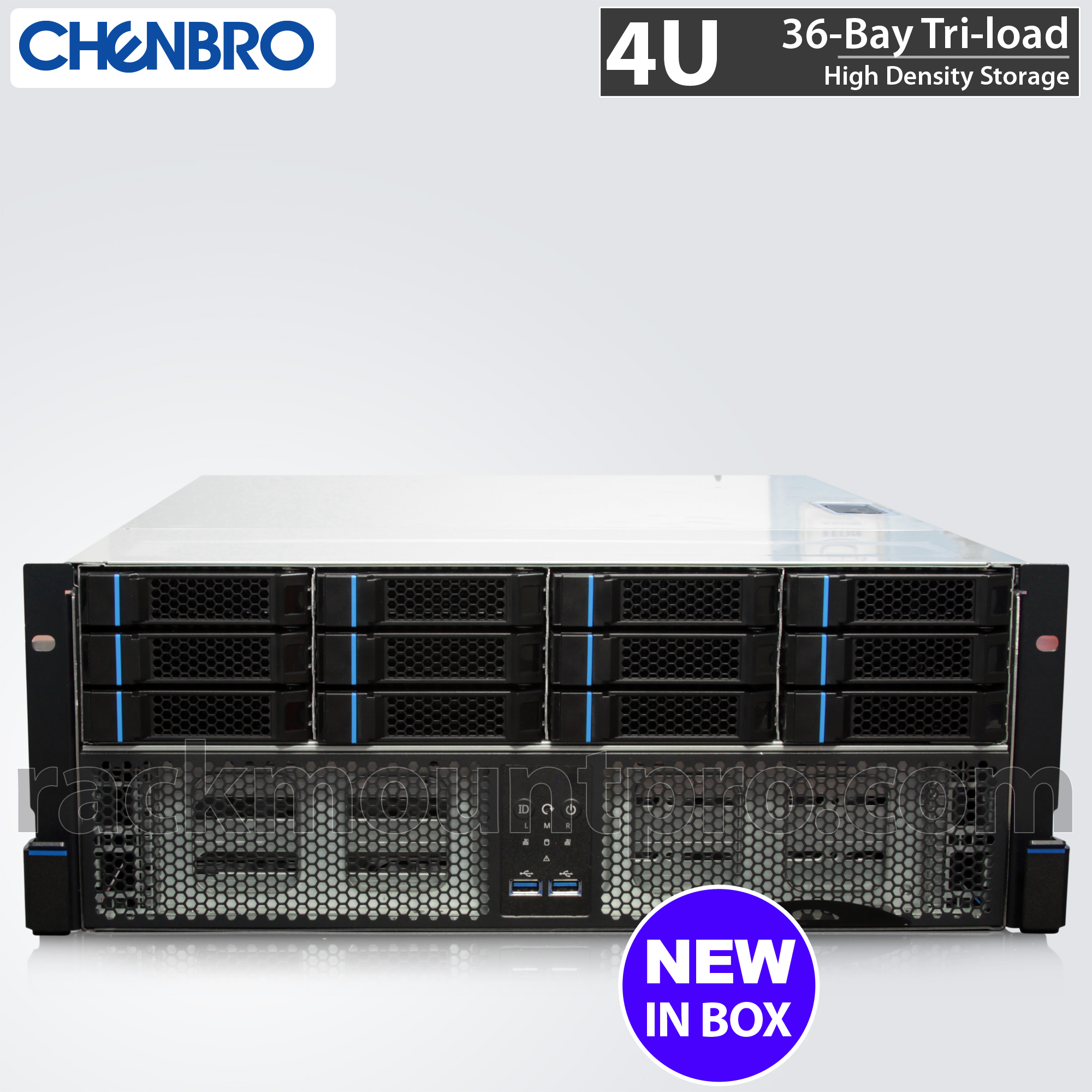

Chenbro RM43736 4U 36-Bay Tri-load High Density Storage Server Chassis New

  • Ultra-dense 4U storage server chassis optimized for warm and cold data tiering

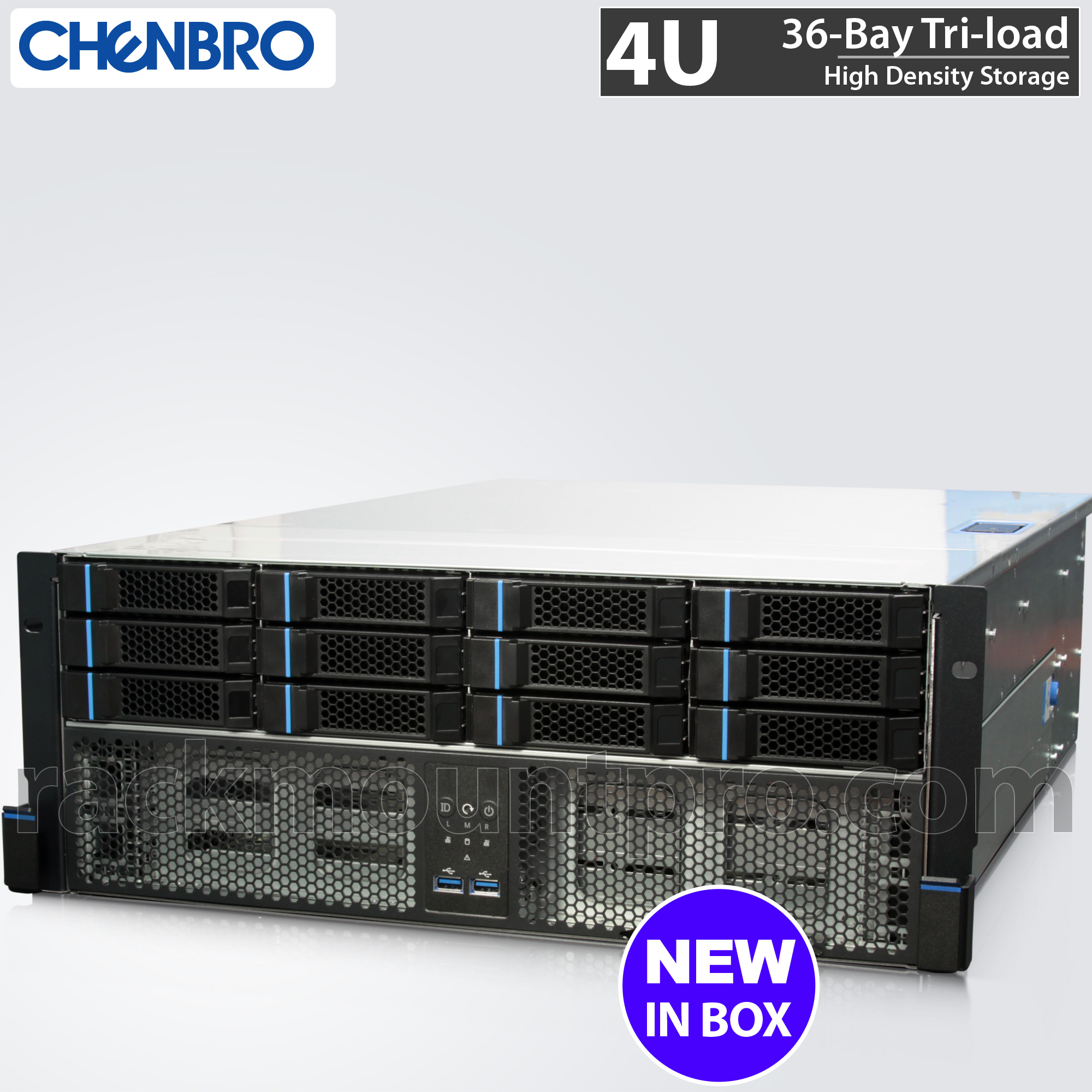

  • Innovative Tri-load design for 24 x 3.5” side access and 12 x 3.5” front access hot-swap HDDs
  • Front storage up to eight SAS/SATA/NVMe Gen 4 drives and rear optional two-bay NVMe Gen 4 SSD module
  • Flexible motherboard support to EATX, ATX, microATX
  • 4+4 Redundant 80mm fan module support hot-swappable

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

No configuration menus found for this product.

Technical Specifications

Detailed Specification
MB Form Factor:
EATX(12" x 13 "), ATX (12" x 9.6"), mATX (9.6" x 9.6“)
(MB not included)

Dimension (D x W x H):
660mm x 438mm x 175mm ; 26’’ x 17.2’’ x 6.9"

Drive Bay:
12 Bay 3.5" HDD hot swap module, front / left / right：3
Option: 2 Bay 2.5" HDD hot swap module, rear
(HDDs not included)

Storage Backplane:
12 port 12Gbps SAS Expander Backplane, front / left / right
12 port 8T4S Gen 4 Backplane, front
Option:
-2 Port 12Gbps SAS/SATA, rear
-2 Port NVMe Gen3, rear
-2 Port NVMe Gen4, rear

PSU Form Factor:

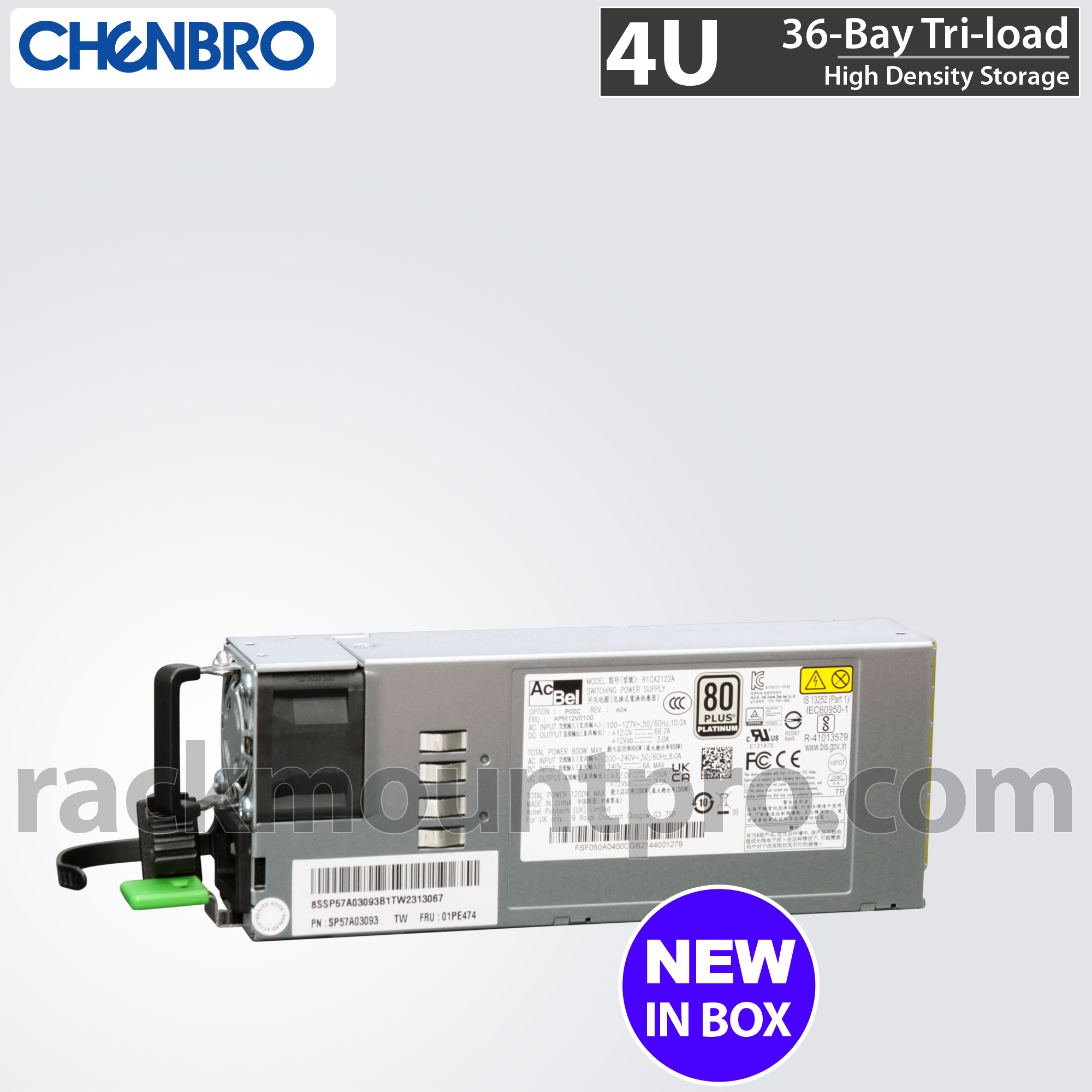

Redundant CRPS (1+1), 1200W(80+Platinum)

Indicator:
1 x Power Status, 2 x LAN Activity, 1 x UID,1 x HDD Activity, 3 x HDD Status (L/M/R), 1 x System Status

Front Control:
1 x Power On/Off, 1 x System Reset, 1 x UID, 2 x USB 3.0

Cooling Fan:
Middle: 80mm (T:38mm) fan module with fan bar
-Performance: 4 x 14400RPM, PWM, Hot-swap
-Mainstream: 3 x 11000RPM, PWM, Hot-swap

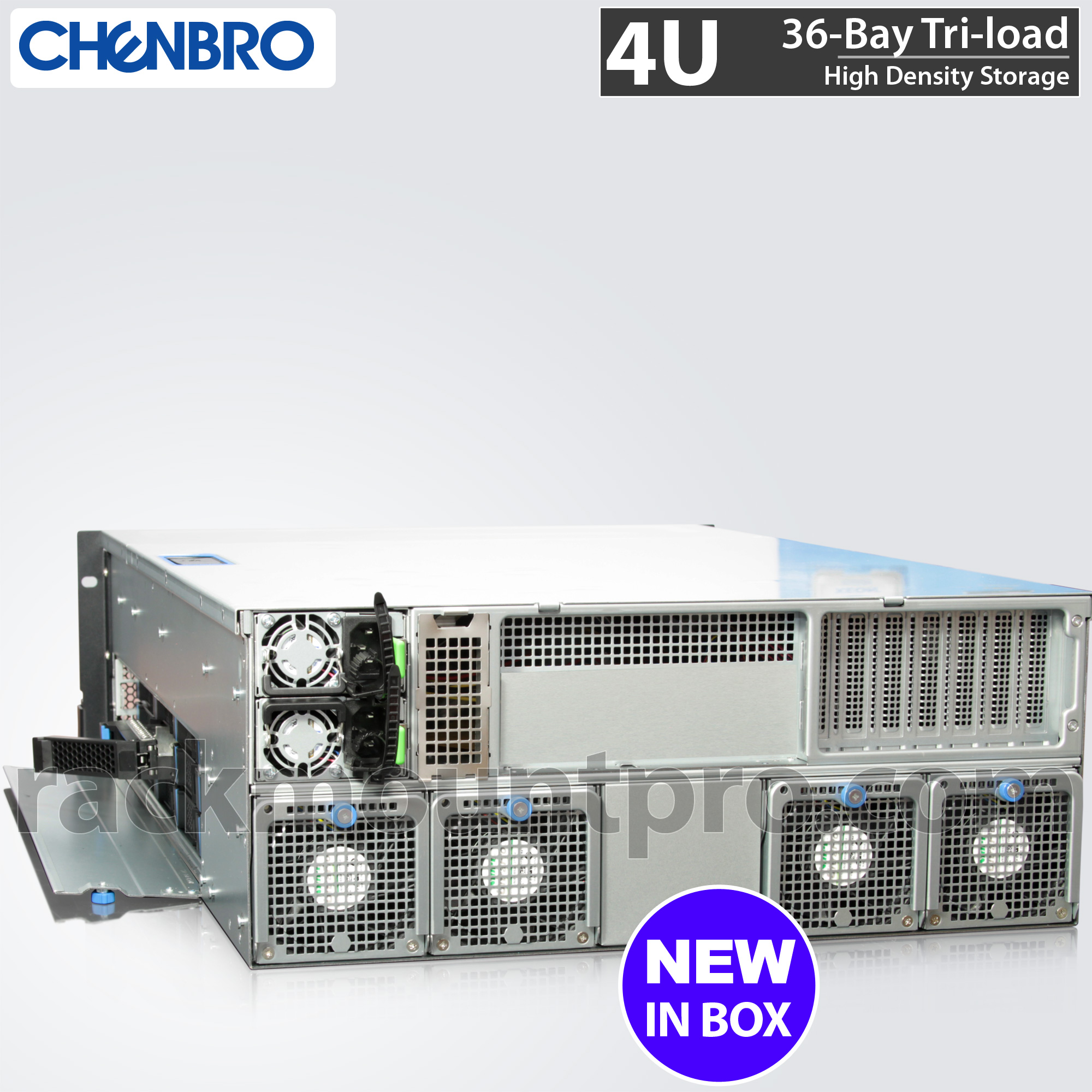

Rear: 80mm (T:38mm) fan module, 4 x 11000 RPM, PWM, Hot-swap

System Security:
Intrusion Switch

Expansion Slot Opening:
7 x Low Profile or 3 x Full Height (Option)

Condition:
New in Box with all HDD trays
