SSG-640SP-E1CR90

SSG-640SP-E1CR90

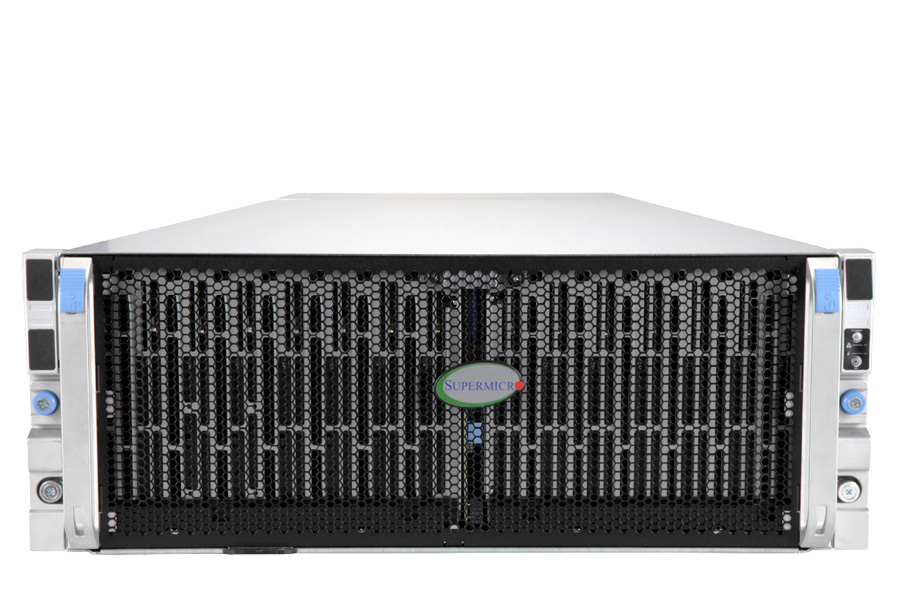

Supermicro 4U 90Bays Dual Processor Rackmount Server

  • Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores
  • 16 ECC DDR4-3200: LRDIMM/RDIMM
  • 3 x PCIe 4.0 x16 HHHL PCIe slots
  • 90 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Fixed slim SATA SSD, 2x NVMe M.2 (form factor: 2280 and 22110)
  • 6 x 8cm hot-swap counter-rotate redundant PWM cooling fans
  • 2600W Redundant Power Supplies Titanium Level (96%)
  • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  • Drive Controller support via Broadcom® 3916 or 3616
  • Big Data & Analytics, Data Lake, HPC and AI/ML Workloads, Telco & Cloud Service Providers, Financial Services & Healthcare Image Archives, Content Repositories, Government Data Protection

Storage configuration notice:
90x 3.5" HDD Drive
2x rear 2.5" HDD Bays
4x rear U.2 HDD Bays

2x M.2 drive
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs, 22 storage Device in Main/Toploading Bays).

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

CPU ▼
Qty / Pick Option Price
Intel® Xeon® Scalable 3rd Gen Gold Processor 5315Y (3.20 Ghz 140W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5317 (3.00 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318Y (2.10 Ghz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318H (2.50 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318N (2.10 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318S (2.10 Ghz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320 (2.20 Ghz 185W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320H (2.40 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320T (2.30 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330 (2.00 Ghz 205W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330N (2.20 Ghz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330H (2.00 Ghz 150W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6334 (3.60 Ghz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6336Y (2.40 GHz 185W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338 (2.00 GHz 205W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338N (2.20 GHz 185W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338T (2.10 GHz 165W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6342 (2.80 GHz 230W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6346 (3.10 GHz 205W)
Intel® Xeon® Scalable 3rd Gen Gold Processor 6348H (2.30 GHz 165W)
Intel® Xeon® Scalable 3rd Gen Silver Processor 4310 (2.10 GHz 120W)
Intel® Xeon® Scalable 3rd Gen Silver Processor 4314 (2.40 GHz 135W)
Intel® Xeon® Scalable 3rd Gen Silver Processor 4316 (2.30 GHz 150W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352V (2.10 GHz 195W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352M (2.30 GHz 185W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352S (2.30 GHz 185W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352Y (2.20 GHz 205W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8353H (2.50 GHz 150W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8354H (3.10 GHz 205W)
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8356H (3.90 GHz 190W)
MEMORY ▼
No options configured for this category.
Enterprise-Class HDD/SSD ▼
Qty / Pick Option Price
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
NETWORK CARD ▼
Qty / Pick Option Price
*No Network Card
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
OPERATING SYSTEM ▼
Qty / Pick Option Price
*Please contact our sales for more operating system options
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Microsoft Windows Server 2025 Standard 64-bit-1User
WARRANTY ▼
Qty / Pick Option Price
*1 Year Parts Replacement Warranty
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
RAID CONTROLLER CARD ▼
Qty / Pick Option Price
*NO RAID Controller Card
LSI 9560-16I TRI MODE NVMe RAID CONTROLLER
Areca ARC-1886-16i 16 Ports SAS/SATA/NVMe RAID Controller Card
(Optional) Enterprise-Class HDD/SSD ▼
Qty / Pick Option Price
*No Hard Drive
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
NVMe M.2 ▼
Qty / Pick Option Price
*No NVMe M.2 Drives
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB
Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB
Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB
Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB
NVMe U.2/U.3 ▼
Qty / Pick Option Price
*No NVMe U.2/U.3 Drives
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

Technical Specifications

Processor
CPU:
Dual Socket P+ (LGA-4189)
3rd Gen Intel® Xeon® Scalable processors

Core Count:
Up to 36C/72T; Up to 54MB Cache per CPU

Note:
Supports 120W - 205W TDP CPUs (Air Cooled)
Memory
Memory:
Slot Count: 16 DIMM slots
Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Memory Voltage:
1.2V
Chassis
4U Rackmount Chassis
Dimensions
Height:
7"
Width:
17.6"
Depth:
42.1"
Drive Bays
Drive Bays Configuration:
Default: Total 96 bay(s)

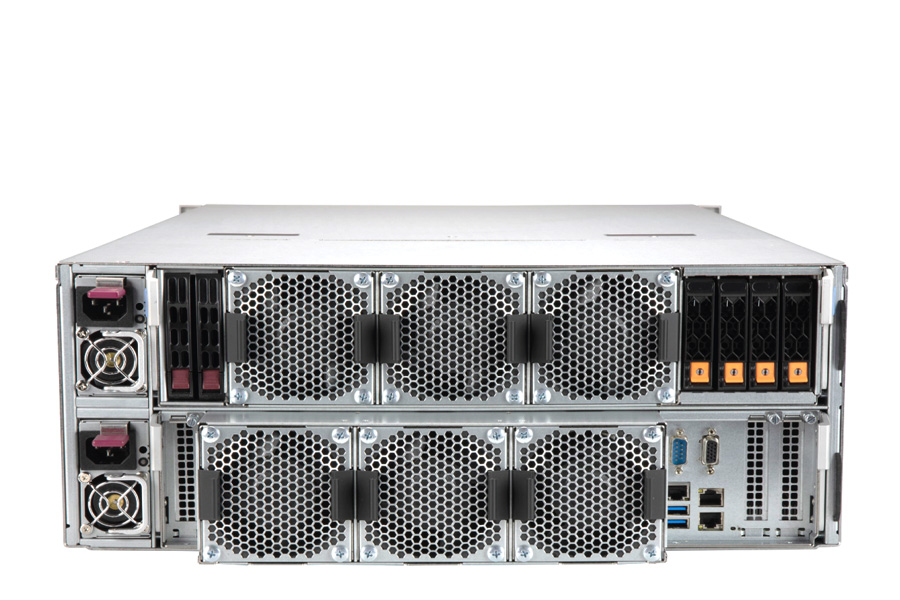

2 rear hot-swap 2.5" SATA drive bay(s)
4 rear hot-swap 2.5" NVMe drive bay(s)

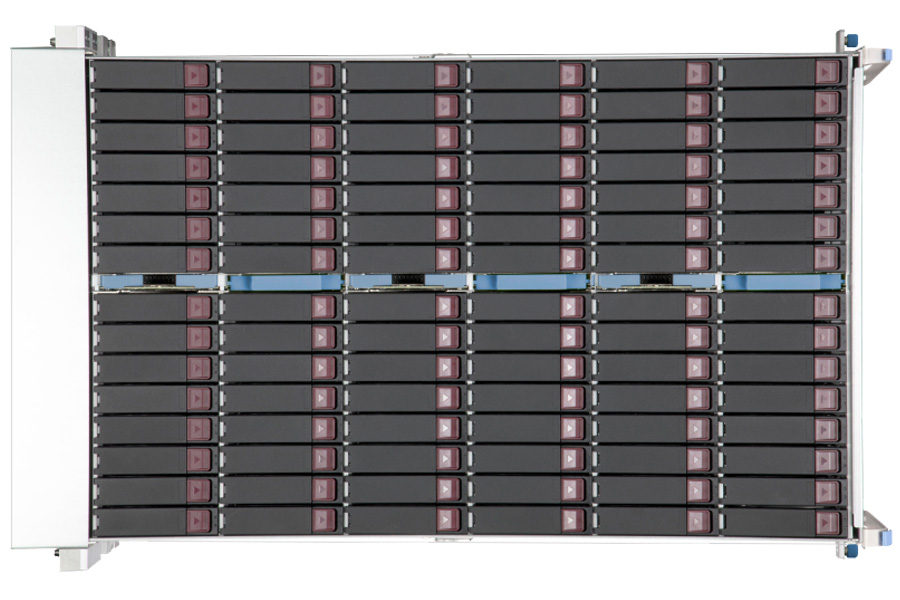

90 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bay(s)
(NVMe support may require additional storage controller and/or cables)

M.2:
2 M.2 NVMe slot(s) (M-key)
Expansion Slots
PCI-Express (PCIe) Configuration:
Default
3 PCIe 4.0 x16 LP slot(s)
Power Supply
1x 2600W Redundant Titanium Level power supply
Dimension (WxHxL):
73.5 x 40 x 265 mm

+12V:
Max: 216A / Min: 0A (200Vac-240Vac)

12V SB:
Max: 3.5A

AC Input:
2600W: 200-240Vdc / 50-60Hz (for CQC only)

Output Type:
Backplanes (gold finger)
Onboard Devices

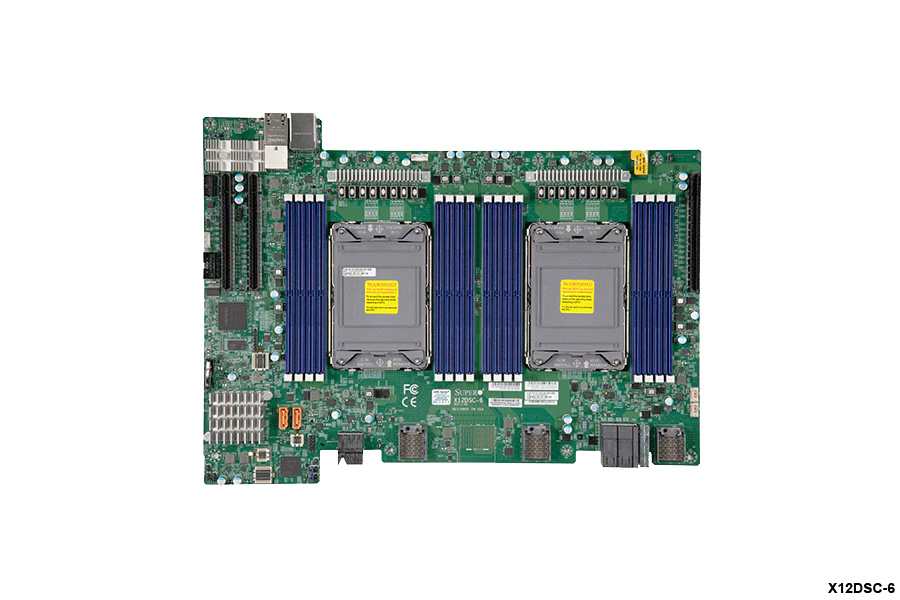

Chipset:
Intel® C621A

Network Connectivity:
2 RJ45 10GBASE-T

NVMe
Input / Output
LAN:
1 RJ45 1 GbE Dedicated IPMI LAN port(s)
2 RJ45 10 GBASE-T LAN port(s)

USB:
2 USB 3.0 port(s) (rear)

Video:
1 VGA port(s)

DOM:
2 SuperDOM (Disk on Module) port(s)
Cooling
6 Heavy Duty 8cm Fan(s)
BIOS
BIOS Type:
AMI 128MB SPI Flash EEPROM
Operating Environment
ROHS:
RoHS Compliant

Environmental Spec.:
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

Frequently Asked Questions

Yes. Spectrum Servers offers custom configurations for all server products. Use the Configure Options section above to select processors, memory, storage and other components, or request a custom quote.

All products sold by Spectrum Servers include the manufacturer's standard warranty. Extended warranty options are available. Contact our sales team at sales@spectrumservers.com or call +1 (626) 956-0100 for details.

Lead times vary by product and configuration. In-stock items typically ship within 1–3 business days. Custom configured systems may take 5–15 business days. Contact us for specific availability and lead time information.

Yes. Spectrum Servers provides technical support for all products sold. Our engineers are available Monday–Friday 8:30AM–5:30PM PST. Reach us at +1 (800) 526-8650 or email sales@spectrumservers.com.

Yes. Volume discounts are available for orders of 5 or more units. Please request a quote or contact our sales team directly for pricing on larger orders.
← Back to Product List
