J2012-04-04X

J2012-04-04X

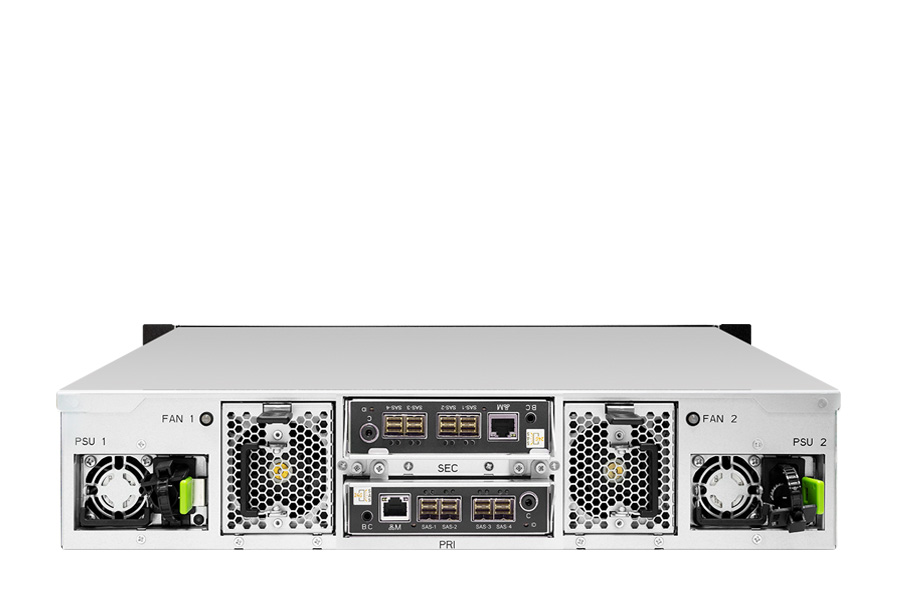

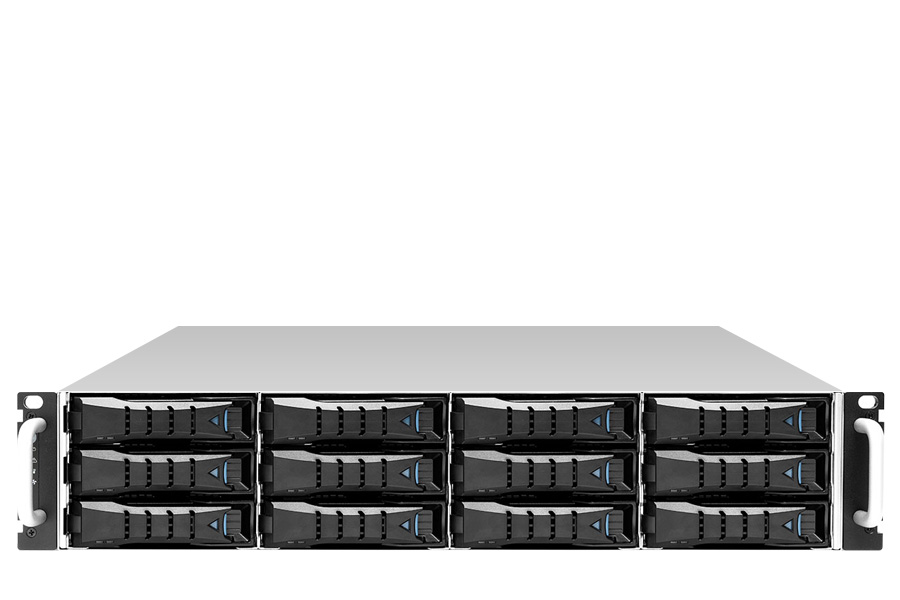

AIC 2U 12Bays Single SAS Expander JBOD

  • Ruggedized design (Internal board to board connection)
  • Short-depth
  • Tool-less design
  • Hot-swap expander modules, drives, PSU, fans
  • Clear front panel LED indicators
  • Optimized thermal solution
  • BMC onboard

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

Enterprise-Class HDD/SSD ▼
Qty / Pick Option Price
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
WARRANTY ▼
Qty / Pick Option Price
*1 Year Parts Replacement Warranty
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
Server Optional Parts ▼
Qty / Pick Option Price
SFF-8644-8644 2m/6ft DATA Cable

Technical Specifications

Detailed Specification
General
Number of Expander:
Single
Dual(Optional)
Expander Chip:
LSI SAS4X40
Host/Expansion Interface :
4 x Mini SAS HD (SFF-8674) per expander module (backward compatible with SFF-8644 SAS12G)

Drives Supported
Drive Interface:
24Gb & 12Gb SAS if using dual expanders
24Gb & 12Gb SAS + 6Gb SAS/SATA if using single expander
Form Factor:
3.5"

Administration / Management
Admin/Firmware Upgrade:
In-band & Serial port interface
IEM port
LED Indicators, Audible Alarm: Yes

Hot swap & Redundancy
Drive Bays:
12 x hot swap
Cooling:
2 x 60x56mm hot swap fans
Power Supply:
550W 1+1 hot swap redundant power supply 80+ Platinum
800W 1+1 hot swap redundant power supply 80+ Titanium(Optional)
Power Entry:
Dual AC Inlet
Expander Modules:
Dual expanders (Optional)

Electrical & Environment
Platinum:
100~127V~, 50/60Hz, 7.0A
200~240V~, 50/60Hz, 3.5A
Titanium:
100-127V~,50/60Hz,10A
200-240V~,50/60Hz, 5A
Operating Environment:
Temperature : 0ºC to 35ºC
Relative humidity : 20% to 80%
Non-operating Environment:
Storage temperature : -20° ~ 60°C
System relative humidity : 10% - 90%

Dimensions (W x D x H):
mm: 438 x 385.45 x 88.2
inches: 17.2 x 15.2 x 3.5
