Home / Products / J2024-07-04X
$2,470.00

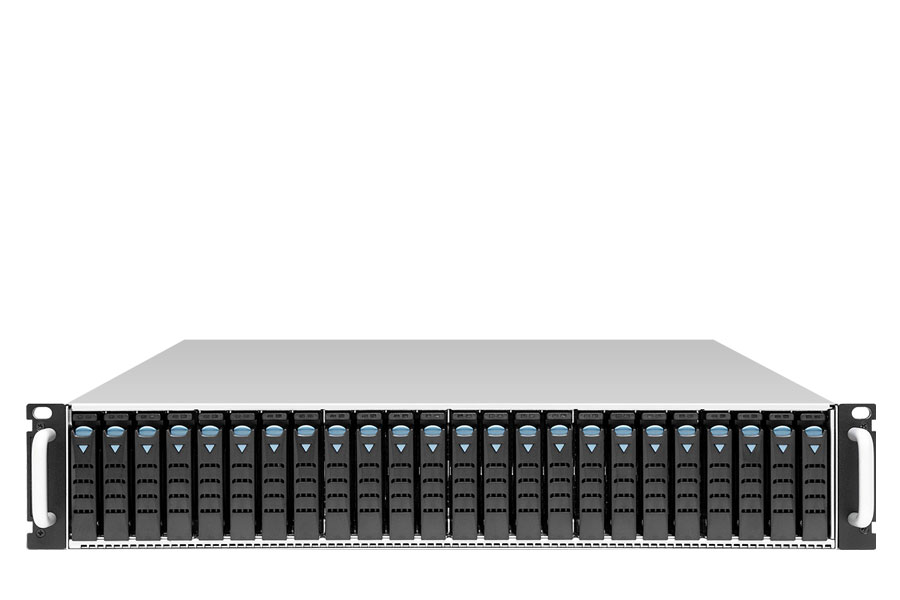

J2024-07-04X

J2024-07-04X

AIC 2U 24Bays Single SAS Expander JBOD

  • Ruggedized design (Internal board to board connection)
  • Tool-less design
  • Hot-swap expander modules, drives, PSU, fans
  • Short-depth
  • Clear front panel LED indicators
  • Optimized thermal solution
  • BMC onboard

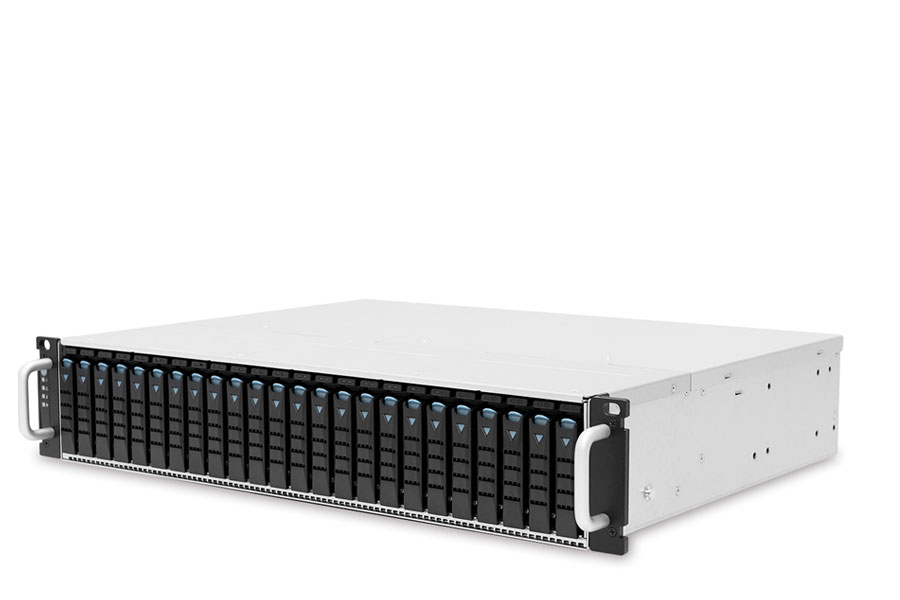

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

Enterprise-Class HDD/SSD ▼
Qty / Pick Option Price
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
WARRANTY ▼
Qty / Pick Option Price
*1 Year Parts Replacement Warranty
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000

Technical Specifications

Detailed Specification
General
Number of Expander:
Single
Dual(Optional)
Expander Chip:
LSI SAS4X40
Host/Expansion Interface:
4 x Mini SAS HD (SFF-8674) per expander module (backward compatible with SFF-8644 SAS12G)

Drives Supported
Drive Interface :
24Gb &12Gb SAS if using dual expanders
24Gb & 12Gb SAS + 6Gb SAS/SATA if using single expander
Form Factor: SFF 2.5"

Administration / Management
Admin/Firmware Upgrade:
In-band & Serial port interface
IEM port
LED Indicators, Audible Alarm:
Yes

Hot swap & Redundancy
Drive Bays: 24 hot swap
Cooling:
2 x 60x56mm hot swap fans
Power Supply (options):
800W 1+1 hot swap redundant power supply 80+ Platinum
800W 1+1 hot swap redundant power supply 80+ Titanium(Optional)
Power Entry: Dual AC Inlet
Expander Modules: Dual expanders (Optional)

Electrical & Environment
Universal A/C Input:
100~127V~,50/60Hz, 7.0A
200~240V~,50/60Hz, 3.5A
Operating Environment:
Temperature : 0ºC to 35ºC
Relative humidity: 20% to 80%
Non-operating Environment:
Storage temperature : -20° ~ 60°C
System relative humidity: 10% - 90%

Physical Specification
Dimensions (W x D x H):
mm: 438 x 345 x 87.5
inches: 17.2 x 13.6 x 3.4
