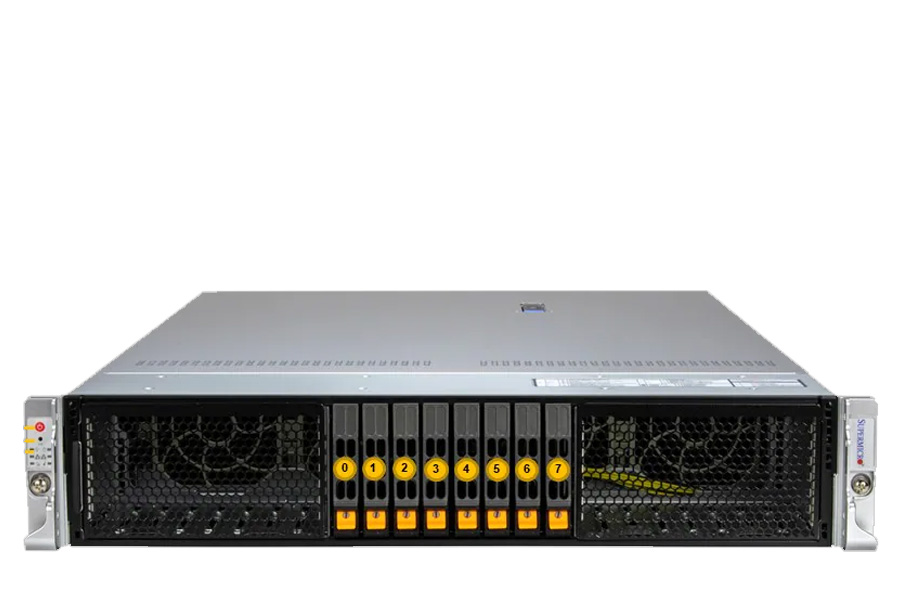

SYS-222H-TN

SYS-222H-TN

Supermicro 2U 8Bays Dual Processor Rackmount Server

  • Dual Intel® Xeon® 6 6700 series processors with E-cores
  • 32 DIMM slots supporting up to 2TB of memory
  • Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots with support for double-width GPU/Accelerator cards
  • Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
  • 8x 2.5" hot-swap NVMe/SATA/SAS drive bays with optional configurations for 16x/24x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe drive slots; Optional RAID support via storage add-on card
  • Virtualization, Software-defined Storage, High Performance Computing, Cloud Computing, Enterprise Server

Storage configuration notice:
8x 2.5" Drives

2x M.2 drive
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 2 DIMMs, 1 Storage Device HDD/HDS/M.2 and 1 NIC) NIC requirement can be either AIOM or PCIe card.

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

CPU ▼
Qty / Pick Option Price
Intel® Xeon® 6 6700E Series Processors 6710E (2.40 GHz 250W)
Intel® Xeon® 6 6700E Series Processors 6731E (2.20 GHz 250W)
Intel® Xeon® 6 6700E Series Processors 6740E (2.40 GHz 250W)
Intel® Xeon® 6 6700E Series Processors 6746E (2.00 GHz 250W)
Intel® Xeon® 6 6700E Series Processors 6756E (1.80 GHz 225W)
Intel® Xeon® 6 6700E Series Processors 6766E (1.90 GHz 250W)
Intel® Xeon® 6 6700E Series Processors 6780E (2.20 GHz 330W)
MEMORY ▼
Qty / Pick Option Price
Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Enterprise-Class HDD/SSD ▼
Qty / Pick Option Price
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
NETWORK CARD ▼
Qty / Pick Option Price
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
OPERATING SYSTEM ▼
Qty / Pick Option Price
*Please contact our sales for more operating system options
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Microsoft Windows Server 2025 Standard 64-bit-1User
WARRANTY ▼
Qty / Pick Option Price
*1 Year Parts Replacement Warranty
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
GPU/Coprocessor ▼
Qty / Pick Option Price
*No GPU
NVIDIA L40S 48GB GDDR6 GPU Card
NVIDIA A100 80GB HBM2e GPU Card
NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB
NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB
NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB
NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB
NVIDIA L40 48GB GDDR6 GPU Card
NVIDIA H100 80GB HBM2e GPU Card
NVMe M.2 ▼
Qty / Pick Option Price
*No NVMe M.2 Drives
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB
Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB
Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB
Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB

Technical Specifications

Processor
CPU:
Dual Socket E2 (LGA-4710)
Intel® Xeon® 6 6700 series processors with E-cores

Core Count:
Up to 144C/144T; Up to 108MB Cache per CPU

Note:
Supports up to 330W TDP CPUs (Air Cooled)
Supports up to 330W TDP CPUs (Liquid Cooled)​

Max GPU Count:
Up to 4 double-width or 8 single-width GPU(s)
Memory
Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM
Chassis
2U Rackmount Chassis
Dimensions
Height:
3.5" (88 mm)
Width:
17.3" (438.4 mm)
Depth:
29.73" (755.2 mm)
Drive Bays
Drive Bays Configuration:
Default: Total 8 bay(s)
8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bay(s)
Option A: Total 16 bay(s)
16 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bay(s)
Option B: Total 24 bay(s)
24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bay(s)
(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)


M.2:
2 M.2 PCIe 5.0 x2 NVMe slot(s) (M-key 2280/22110)
Expansion Slots
PCI-Express (PCIe) Configuration
Option A
4 PCIe 5.0 x16 FH/10.5"L double-width slot(s)
1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
1 PCIe 5.0 x8 AIOM slot(s) (OCP 3.0 compatible)
Option B
8 PCIe 5.0 x8 (in x16) FH/10.5"L slot(s)
1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
1 PCIe 5.0 x8 AIOM slot(s) (OCP 3.0 compatible)
(For more details on PCIe slot configuration options, please contact us)


CXL Support:
Up to 4 CXL 2.0 x16/x8 devices
Power Supply
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL):
73.5 x 40 x 265 mm

AC Input:
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)

+12V:
Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)

12V SB:
Max: 2.1A / Min: 0A

Output Type:
Backplanes (gold finger)
Onboard Devices
NVMe:
NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)

Chipset:
System on Chip

Network Connectivity:
Via AIOM
Front Panel
LED:
HDD activity
LAN1 activity
LAN2 acticity
Power Fail
Power status
System information (overheat/UID)

Buttons:
Power On/Off
UID button
Input / Output
LAN:
1 RJ45 1 GbE Dedicated BMC LAN port(s)

USB:
2 USB 3.0 port(s) (rear)
2 USB 3.0 port(s) (Header)

Video:
1 VGA port(s)
Cooling
Fans:
4x 8cm heavy duty fans with optimal fan speed control

Air Shroud:
2 Air Shroud(s)

Liquid Cooling:
Direct to Chip (D2C) Cold Plate (optional)
BIOS
BIOS Type:
AMI 64MB SPI Flash
Operating Environment
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Detailed Specification
Management
Software:
SuperCloud Composer
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power configurations:
Power-on mode for AC power recovery
ACPI Power Management

Security
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown

PC Health Monitoring
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
