Home / Products / SYS-112C-TN
Please Inquire
SYS-112C-TN

SYS-112C-TN

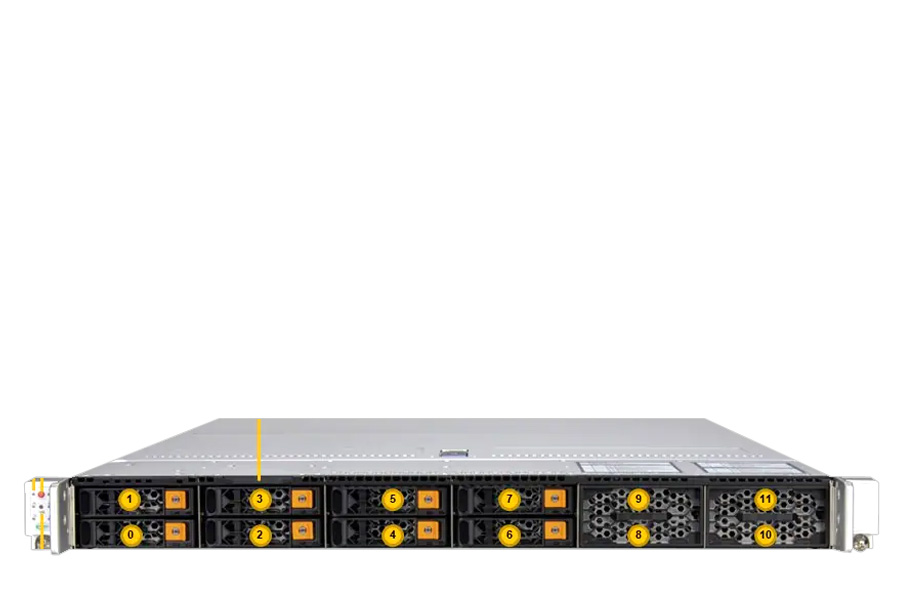

Supermicro 1U 8Bays Single Processor Rackmount Server

  • All-in-one platform for cloud data centers, based on the OCP Data Center Modular Hardware System (DC-MHS) with flexible I/O and storage configurations
  • Based on Modular Scalable DeNsity Optimized HPM Form Factor (M-SDNO)
  • Support DC-SCM module with OpenBMC
  • Single Intel® Xeon® 6 6700 series processor with E-cores
  • 16 DIMM slots supporting up to 1TB of memory (6700E series CPU)
  • Support FH DPU and single slot GPU
  • Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).
  • Breeze through high throughput workloads with PCIe 5.0 NVMe drive support
  • Trusted Platform Module (TPM) 2.0 onboard
  • Virtualization, HPC, CDN, Edge Nodes, Cloud Computing, Data Center Optimized, Storage Headnode

Storage configuration notice:
8x 2.5" Drives

2x M.2 drive
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 1 CPU, 1 DIMM, 1 Storage Device HDD/HDS/M.2 and 1 NIC) NIC requirement can be either AIOM or PCIe card.

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

CPU ▼
Qty / Pick Option Price
Intel® Xeon® 6 6700E Series Processors 6710E (2.40 GHz 250W)
Intel® Xeon® 6 6700E Series Processors 6731E (2.20 GHz 250W)
Intel® Xeon® 6 6700E Series Processors 6740E (2.40 GHz 250W)
Intel® Xeon® 6 6700E Series Processors 6746E (2.00 GHz 250W)
Intel® Xeon® 6 6700E Series Processors 6756E (1.80 GHz 225W)
Intel® Xeon® 6 6700E Series Processors 6766E (1.90 GHz 250W)
Intel® Xeon® 6 6700E Series Processors 6780E (2.20 GHz 330W)
MEMORY ▼
Qty / Pick Option Price
Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Enterprise-Class HDD/SSD ▼
Qty / Pick Option Price
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
NETWORK CARD ▼
Qty / Pick Option Price
*No Network Card
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
OPERATING SYSTEM ▼
Qty / Pick Option Price
*Please contact our sales for more operating system options
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Microsoft Windows Server 2025 Standard 64-bit-1User
WARRANTY ▼
Qty / Pick Option Price
*1 Year Parts Replacement Warranty
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
NVMe M.2 ▼
Qty / Pick Option Price
*No NVMe M.2 Drives
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB
Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB
Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB
Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB

Technical Specifications

Processor
CPU:
Single Socket E2 (LGA-4710)
Intel® Xeon® 6 6700 series processors with E-cores
Core Count:
Up to 144C/144T; Up to 108MB Cache
Note:
Supports up to 350W TDP CPUs (Air Cooled)

GPU
Max GPU Count:
Up to 2 single-width GPU(s)
CPU-GPU Interconnect:
PCIe 5.0 x16 CPU-to-GPU Interconnect
Memory
Slot Count: 16 DIMM slots/8 Channels
Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 1TB 5200MT/s ECC DDR5 RDIMM
Chassis
1U Rackmount Chassis
Dimensions
Height:
1.7" (43 mm)
Width:
17.2" (437 mm)
Depth:
29.4" (747 mm)
Drive Bays
Drive Bays Configuration:
Default: Total 8 bay(s)
8 front hot-swap 2.5" PCIe 5.0 NVMe/SAS*/SATA* drive bay(s)
Option A: Total 12 bay(s)
8 front hot-swap 2.5" PCIe 5.0 NVMe*/SAS*/SATA* drive bay(s)
4 front hot-swap 2.5" SAS*/SATA* drive bay(s)
(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please contact us for details)


M.2:
2 M.2 PCIe 5.0 x2 NVMe slot(s) (M-key 2280(default)/22110; VROC required for RAID)
Expansion Slots
Default
2 PCIe 5.0 x16 FHHL slot(s)
1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
Power Supply
2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL):
73.5 x 40 x 185 mm

AC Input:
800W: 100-127Vac / 50-60Hz
1000W: 200-240Vac / 50-60Hz

+12V:
Max: 66.7A (100Vac-127Vac)
Max: 83A (200Vac-240Vac)

12V SB:
Max: 2.1A

Output Type:
Backplanes (gold finger)

Certification:
Titanium Level
Onboard Devices
NVMe:
NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)

Chipset:
System on Chip

Network Connectivity:
Via Slim-AIOM
Front Panel
LED:
HDD activity
LAN1 activity
LAN2 activity
Power Failed LED
Power status
System information

Buttons:
Power On/Off button
UID button
Input / Output
LAN:
1 RJ45 1 GbE Dedicated BMC LAN port(s)

USB:
2 USB 3.2 Gen1 Type-A port(s) (rear)

Video:
1 Mini-DP port(s) (Rear)

TPM:
1 TPM header
Cooling
8 Counter-Rotating PWM 40x40x56mm Fan(s)
BIOS
BIOS Type:
AMI 32MB SPI Flash EEPROM
Operating Environment
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)
Detailed Specification
Management
Software:
SuperCloud Composer
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power configurations:
ACPI/APM Power Management

Security
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown

PC Health Monitoring
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
