| SYS-821GE-TNHR (8U air w/H200) | ||
| SMC Product ID | SMC Mat Descr | Qty |

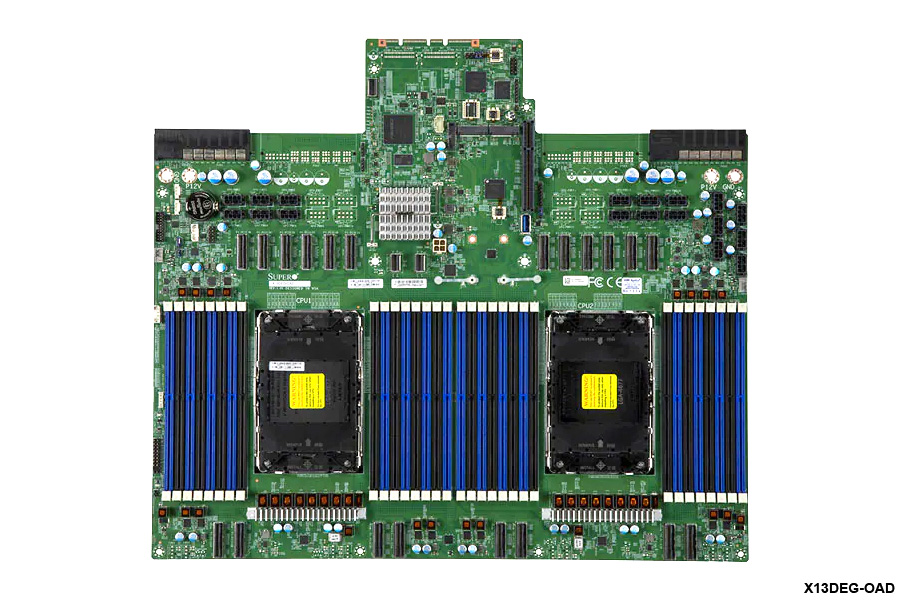

| SYS-821GE-TNHR | 8U X13 8GPU (Rear I/O), X13DEG-OAD, CSE-GP801TS | 1 |
| EWCSC | 0% 3 YRS LABOR, 3 YRS PARTS, 1 YR CRS UNDER LIMITED WRNTY | 1 |
| P4X-EMR8568Y+-SRN59-XCC | 8568Y+ 2P 48C2.3G350W(40/2.2,36/2.3/300)300MS512 1xDS.I.Q.DL | 2 |
| MEM-DR564L-CL02-ER56 | 64GB DDR5-5600 2Rx4 (16Gb) LP ECC RDIMM | 32 |
| HDS-MMN-MTFDKBA960TFR1BC | Micron 7450 PRO 960GB NVMe PCIe 4.0 M.2 22x80mm 3D TLC, | 2 |
| HDS-IUN0-SSDPF2KX038T1 | IntelD7-P5520 3.84TB NVMe PCIe4.0 X4 3DTLCU.2 15mm<2DWPD | 8 |
| AOC-CX766003N-SQ0 | 900-9X766-003N-SQ0 1-p NDR 400G IB/ETH OSFP Crypto Disabled | 10 |
| SKT-1333L-0001-LTS | SOCKET E LGA4677, E1A XCC CARRIER, DG 1.0, NO SHIM, BLK HSG | 2 |
| SFT-DCMS-SINGLE | SMC System Management Software Suite Node License | 1 |
| AOC-STGS-I2T-O | Std LP 2-port 10G RJ45, Intel X550 (Retail Pack) | 1 |
| AOM-DP801-PCIE-P | NIC Riser board(After Mid-Plane) for Delta-Next GPU Syst | 1 |
| AOM-DP801-SW-P | NIC adaptor board with PLX switch for Delta-Next GPU sys | 1 |
| CBL-MCIO-1342LFM5B4-E | 2 MCIO x8 (LF/STR to STR),42Y/41Wcm,32AWG,RoHS | 1 |
| CBL-MCIO-1348LFM5B3-E | 2 MCIO x8 (LF/STR to STR),48B/44Wcm,32AWG,RoHS | 1 |
| CBL-PWEX-1142-40 | MicroHi,(2x4 to 2x4),PH3.0,40CM,8A/pin,18AWG,RoHS | 1 |

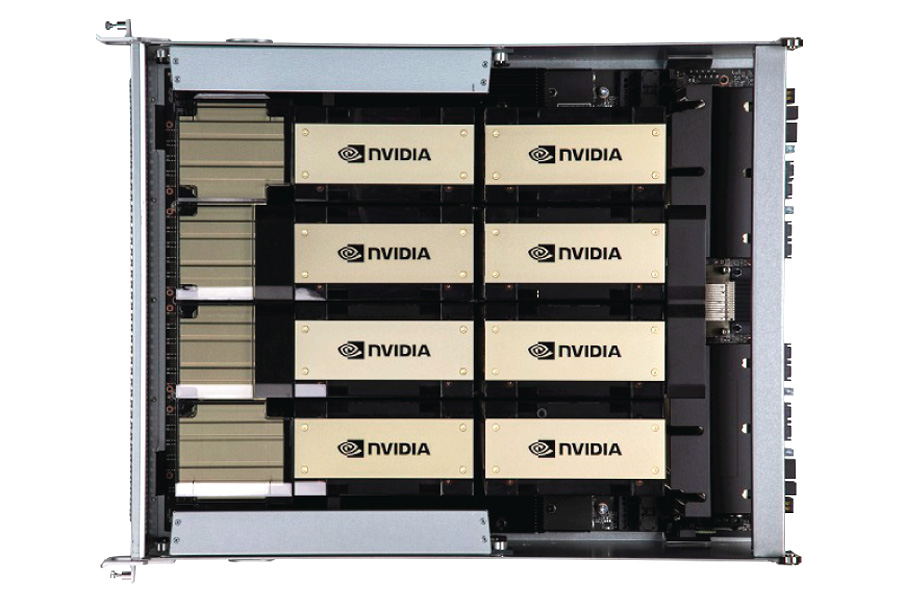

| GPU-NVHGX-H200-8141 | NVIDIA DELTA-NEXT (HGX) GPU Baseboard, 8 H200 141GB SXM5 | 1 |
| MC0037 | ASSEMBLY FEE | 1 |
| OSNBD3 | 3 YR ONSITE NBD SERVICE | 1 |

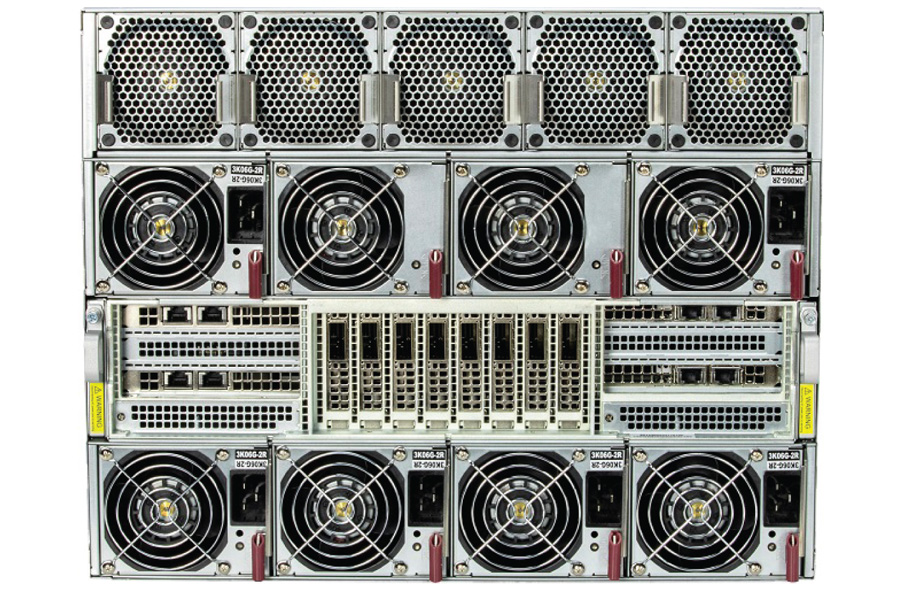

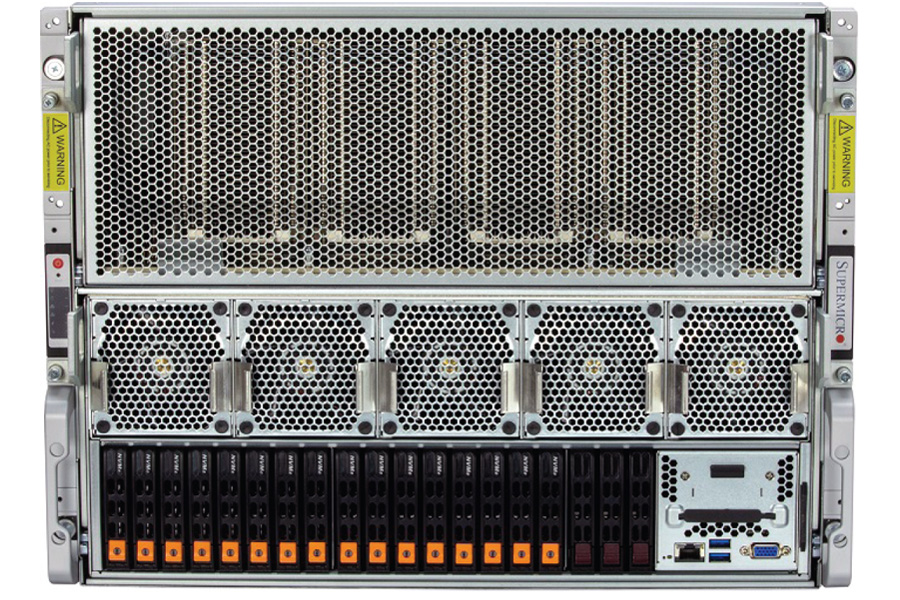

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | CPU:
Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Core Count: Up to 64C/128T; Up to 320MB Cache per CPU Note: Supports up to 350W TDP CPUs (Air Cooled) Supports up to 385W TDP CPUs (Liquid Cooled) Max GPU Count: Up to 8 onboard GPU(s) Supported GPU: NVIDIA SXM: HGX H100 8-GPU (80GB) CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: NVIDIA® NVLink® with NVSwitch™ Certification: NVIDIA CERTIFIED |
|---|---|
| Memory | Memory:
Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM Memory Voltage: 1.1V |
| Chassis | 8U Rackmount Chassis
|
| Dimensions | Height:
14" (355.6 mm) Width: 17.2" (437 mm) Depth: 33.2" (843.28 mm) |
| Drive Bays | Drive Bays Configuration:
Default: Total 15 bay(s) 12 front hot-swap 2.5" NVMe drive bay(s) 3 front hot-swap 2.5" SATA drive bay(s) Option A: Total 19 bay(s) 12 front hot-swap 2.5" NVMe drive bay(s) 4 front hot-swap 2.5" NVMe drive bay(s) 3 front hot-swap 2.5" SATA drive bay(s) (NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 NVMe slot(s) (M-key) |
| Expansion Slots | PCI-Express (PCIe) Configuration:
Default 8 PCIe 5.0 x16 LP slot(s) 2 PCIe 5.0 x16 FHHL slot(s) |
| Power Supply | 1x 3000W Redundant Titanium Level power supply
Dimension (WxHxL): 106.5 x 82.1 x 245.5 mm +12V: Max: 91.66A / Min: 0A (200Vac-240Vac) 12V SB: Max: 3A / Min: 0A AC Input: 3000W: 207-240Vac / 50-60Hz Output Type: Backplanes (gold finger) |
| Onboard Devices | Chipset:
Intel® C741 Network Connectivity: 2 RJ45 10GbE with Intel® X550-AT2 (optional) 2 SFP28 25GbE with Broadcom® BCM57414 (optional) 2 RJ45 10GbE with Intel® X710-AT2 (optional) NVMe |
| Front Panel | LED:
Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED Buttons: Power On/Off button System Reset button |
| Input / Output | Video:
1 VGA port(s) |
| Cooling | Fans:
10 heavy duty fans with optimal fan speed control Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional) |
| BIOS | BIOS Type:
AMI 32MB SPI Flash EEPROM |
