GC68AB8056

GC68AB8056

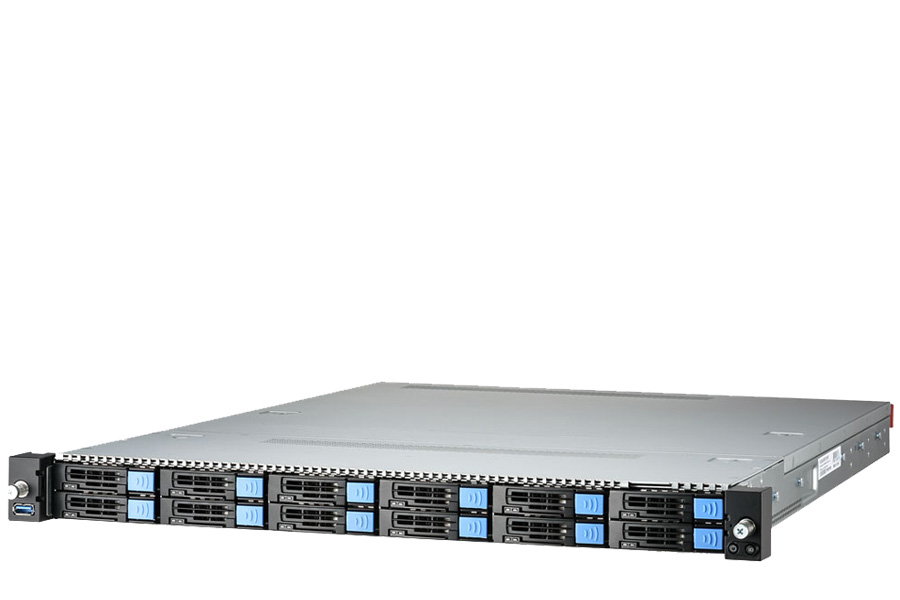

Mitac/Tyan​ 1U 12Bays Single Processor Rackmount Server

  • 1S AMD Genoa / Bergamo / Genoa X CPU
  • 24 DIMM slots w/ DDR5 4800 memory support
  • 12 NVMe U.2 hot swap, tool less drive bays
  • PCIe 5.0 x16 OCP v3.0 LAN mezzanine slot
  • 2 NVMe M.2 slots for boot drives

Storage configuration notice:
12x 2.5" HDD
2x M.2

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

CPU ▼
Qty / Pick Option Price
AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)
AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)
AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)
AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)
AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)
AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)
AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)
AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)
AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)
AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)
AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)
AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)
AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)
AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)
AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)
AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)
AMD EPYC 4th Gen Processor 9554P (3.10GHz,360W)
AMD EPYC 4th Gen Processor 9654P (2.40GHz,360W)
MEMORY ▼
No options configured for this category.
NETWORK CARD ▼
Qty / Pick Option Price
*No Network Card
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
NVIDIA 900-9X766-003N-SQ0 1-Port ConnectX-7 400G Network Adapter
Supermicro AOC-STGS-I2T-O x550-AT2 2-Port 10GbE PCI-E 3.0 Ethernet Card
Supermicro AOC-A100G-M2CM ConnectX-6 Dx 100GbE Network Card
Broadcom BCM957508-N2100G Dual-Port 100 Gb/S (QSFP56/28) Network Adapter
OPERATING SYSTEM ▼
Qty / Pick Option Price
*Please contact our sales for more operating system options
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Microsoft Windows Server 2025 Standard 64-bit-1User
WARRANTY ▼
Qty / Pick Option Price
*1 Year Parts Replacement Warranty
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
NVMe M.2 ▼
Qty / Pick Option Price
*No NVMe M.2 Drives
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB
Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB
Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB
Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB
NVMe U.2/U.3 ▼
Qty / Pick Option Price
*No NVMe U.2/U.3 Drives
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

Technical Specifications

Processor
Q'ty / Socket Type:
(1) AMD Socket SP5

Supported CPU Series:
(1) AMD EPYC™ 9004 Series Processor

Thermal Design Power Wattage:
Max up to 360W* (cTDP)
Memory
Supported DIMM Qty:
(24) DIMM slots

DIMM Type / Speed:
RDIMM / RDIMM-3DS DDR5 3600 MHz (2DPC)

Capacity:
Up to 3,072GB RDIMM/3DS RDIMM DDR5 3600 memory

Memory channel:
12 Channels per CPU

Memory voltage:
1.1V
Chassis
1U Rackmount Chassis
Dimensions
Dimension (D x W x H):
26.77" x 17.26" x 1.69"
680mm x 438.5mm x 43mm
Drive Bays
Q'ty / Type:
(12) 2.5" hot-swap NVMe HDD/SSDs with (4) 2.5" hot-swap SATA 6Gb/s

Front Drive Bay Interface:
(12) NVMe with (4) SATA 6Gb/s / SAS 12Gb/s ports

Front Drive Backplane Support:
SAS 12Gb/s /SATA 6Gb/s /NVMe
Expansion Slots
PCIe:
(2) PCIe Gen 5 x16 slots

Pre-installed TYAN Riser Card (PCIe Gen.5):
(1) M7136G68-L16-1F riser card for (1) FH/HL PCIe Gen.5 x16 slot (Left) / (1) M7136G68-R16-1F riser card for (1) FH/HL PCIe Gen.5 x16 slot (Right)

Others:
(1) PCIe Gen.5 x16 OCP 3.0 mezzanine slot
Power Supply
Type:
Slim 1U

Input Range:
AC 100-240V/12-6A

Frequency:
50/60 Hz

Output Watts:
850 Watts

Efficiency:
80 plus Platinum

Redundancy:
1+1

Serviceability:
Hot-swap
Onboard Devices
LAN
Q'ty / Port:
(1) GbE dedicated for IPMI
PHY:
Realtek RTL8211F

Storage SATA
Connector:
(1) SFF-TA-1016 (MCIO 8x) for (4) SATA ports
Controller:
Direct from AMD EPYC CPU

Storage NVMe
Connector (M.2):
(2) 22110/2280 (by PCIe Gen 4 interface)
Connector (U.2):
(6) SFF-TA-1016 (MCIO 8x) for (12) front NVMe

Graphic
Connector type:
D-Sub 15-pin
Resolution:
Up to 1920x1200
Chipset:
Aspeed AST2600
Front Panel
Buttons:
(1) PWR w/ LED / (1) ID w/ LED

LEDs:
(1) ID / (1) PWR

I/O Ports:
(1) USB 3.2 Gen.1 port
Input / Output
USB:
(1) USB3.2 Gen.1 conn. (Type-A) / (1) USB3.2 Gen.1 header / (1) USB3.2 Gen.1 port (@ front) / (2) USB3.2 Gen.1 ports (@ rear)

COM:
(1) DB-9 COM port

VGA:
(1) D-Sub 15-pin port

RJ-45:
(1) GbE port dedicated for IPMI

Button:
UID Button / Power Button
Cooling
Fan:
(3) 4028 fans / (3) 4056 fans

Air Duct:
Tailored Air Duct
BIOS
Brand / ROM size:
AMI / 64MB

Feature:
Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.3/PnP/Wake on LAN / ACPI 6.2 / ACPI sleeping states S0, S5
Operating Environment
Operating Temp.:
10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp.:
- 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity:
90%, non-condensing at 35° C
Detailed Specification
TPM (Optional)
TPM Support:
Please refer to our TPM supported list.
Interface:
SPI

System Monitoring
Chipset:
Aspeed AST2600
Temperature:
Monitors temperature for CPU & system environment
Voltage:
Monitors voltage for CPU, memory, chipset & power supply
LED:
Over temperature warning indicator / Fan & PSU fail LED indicator / Over voltage warning indicator
Others:
Watchdog timer support

Server Management
Onboard Chipset:
Onboard Aspeed AST2600
AST2600 iKVM Feature:
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2600 IPMI Feature:
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
