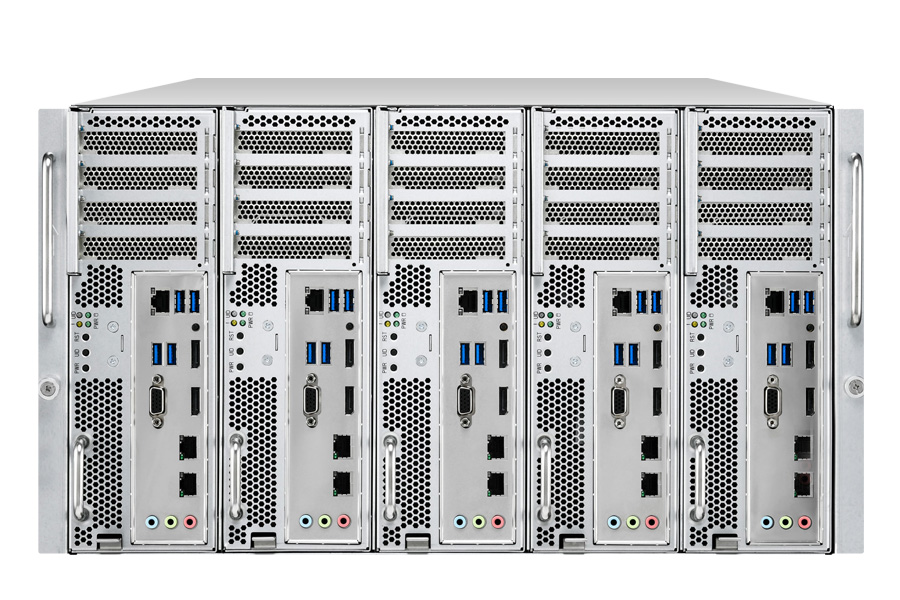

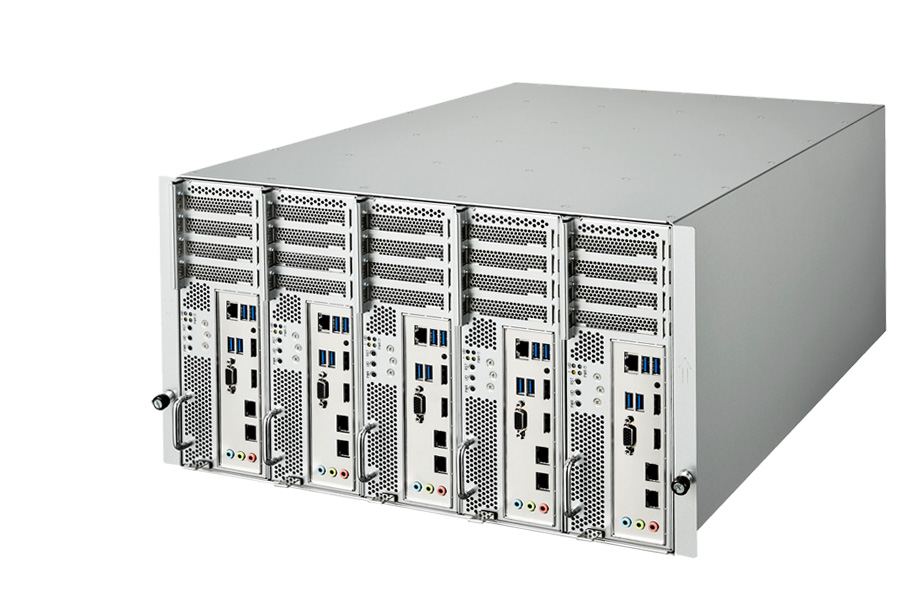

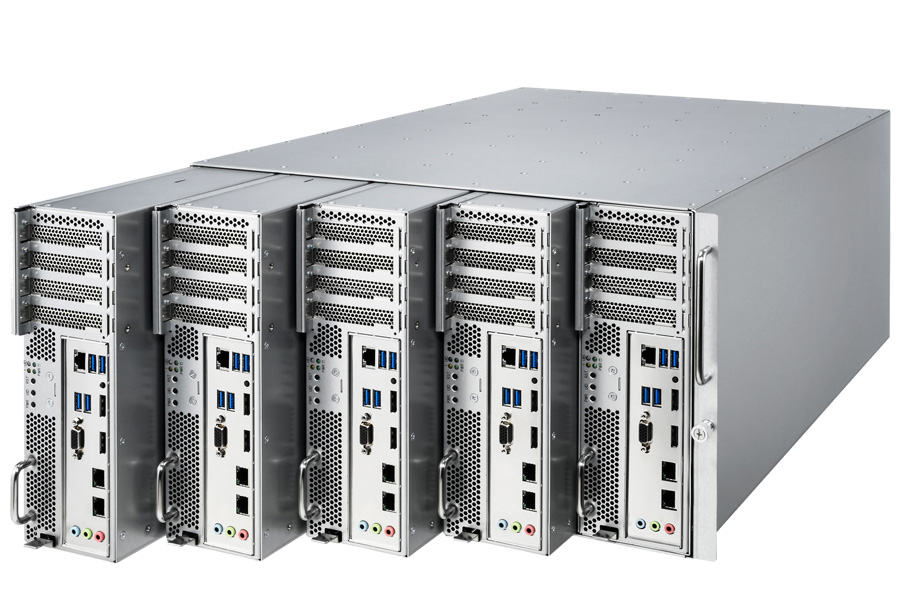

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | (per node)
Q'ty / Socket Type:
(1) AMD Socket AM5 Supported CPU Series: (1) AMD Ryzen 7000 Series Processor / (1) AMD EPYC™ 4005/4004 Series Processor Configurable Thermal Design Power Wattage: Max up to 105W (TDP) |
|---|---|
| Memory | (per node)
Supported DIMM Qty:
(4) DIMM slots DIMM Type / Speed: DDR5 ECC UDIMM & non-ECC 5600 Capacity: Up to 192GB UDIMM Memory channel: 2 Channels per CPU Memory voltage: 1.1V |
| Chassis | 6U Rackmount Chassis
|
| Dimensions | Dimension (D x W x H):
26.85" x 17.60" x 10.44" 682mm x 447mm x 265.3mm |
| Expansion Slots | (per node)
PCIe: (1) PCIe Gen.4 x4 slot / (1) PCIe Gen.4 x8 slot ( w/ x4 link) / (1) PCIe Gen.5 x16 slot |
| Power Supply | (per node)
Type: CRPS Input Range: AC 100-127V/10A / AC 200-240V/5A Frequency: 50-60 Hz Output Watts: 800 Watts Efficiency: 80 plus Titanium Redundancy: 1+1 |
| Onboard Devices | LAN (per node)
Q'ty / Port:
(2) GbE ports
Controller:
Intel I210
PHY:
Realtek RTL8211F
Storage NVMe (per node)
Connector:
(M.2) (2) 2280 (by PCIe.4 interface)
Graphic (per node)
Connector type:
D-Sub 15-pin
Resolution:
Up to 1920x1200
Chipset:
Aspeed AST2600
|
| Front Panel | Buttons:
(1) PWR w/ LED / (1) RST LEDs: (1) PWR / (1) HDD / (1) Warning I/O Ports: (4) USB 3.2 Gen.1 ports / (1) VGA port / (2) Display ports / (1) Line in / Line out / MIC / (3) RJ-45 |
| Input / Output | (per node)
USB: (4) USB3.2 Gen.1 ports VGA: (2) Display ports / (1) D-Sub 15-pin port Audio: (1) Line in / Line out / MIC RJ-45: (2) GbE ports Button: ID Button / Power Button / Reset Button |
| Cooling | (2) easy-swap 8038 fans are pre-installed / per node
|
| BIOS | (per node)
Brand / ROM size: AMI / 32MB Feature: Console Redirection / ACPI S0, S5. S3 |
| Operating Environment | Operating Temp.:
10° C ~ 35° C (50° F~ 95° F) Non-operating Temp.: - 40° C ~ 70° C (-40° F ~ 158° F) In/Non-operating Humidity: 90%, non-condensing at 35° C |
| Detailed Specification | TPM (Optional)
TPM Support: Please refer to our TPM supported list. Interface: SPI System Monitoring Chipset: Aspeed AST2600 Temperature: Monitors temperature for CPU & memory & system environment Voltage: Monitors voltage for CPU, memory, chipset & power supply LED: Over temperature warning indicator / Fan & PSU fail LED indicator Server Management Onboard Chipset: Onboard Aspeed AST2600 AST2600 iKVM Feature: 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub AST2600 IPMI Feature: IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
