3015A-I

3015A-I

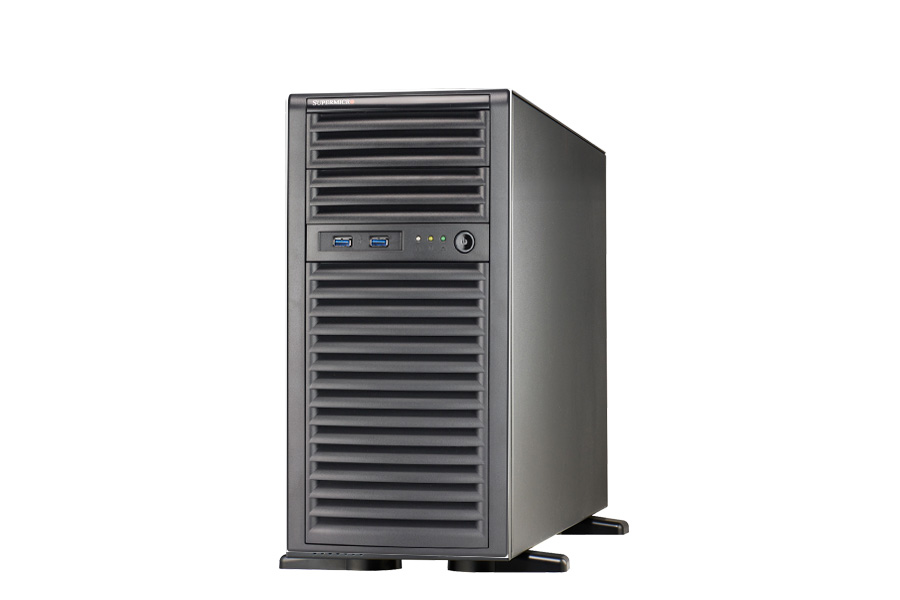

Supermicro 4U/Workstation 4Bays Single Processor AMD Rackmount Server

  • AMD EPYC™ 4004 / 4005 or Ryzen™ 7000 / 9000 series LGA1718 up to 170W TDP Processors
  • 4 Dual channel ECC/Non-ECC DDR5 unbuffered DIMM slots supporting up to 192GB memory
  • 2 PCIe 5.0 x16 (16/NA or 8/8) high-throughput slots and 2 PCIe 5.0x4 M.2 slots
  • Dual 1GbE LAN (Intel® I210-AT)
  • 2D/3D Content Creation, Email/Firewall/Application erver, Designed for small and medium businesses

Storage configuration notice:
External:
4x 3.5" Hot-swap Drive Bays
M.2:
2x M.2

To maintain quality and integrity, this product is sold only as a completely-assembled system.

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

CPU ▼
Qty / Pick Option Price
AMD EPYC 4005 Series Processor 4245P (3.90GHz,65W)
AMD EPYC 4004 Series Processor 4124P (3.80GHz,65W)
AMD EPYC 4004 Series Processor 4244P (3.80GHz,65W)
AMD EPYC 4004 Series Processor 4344P (3.80GHz,65W)
AMD EPYC 4004 Series Processor 4364P (4.50GHz,105W)
AMD EPYC 4004 Series Processor 4464P (3.70GHz,65W)
AMD EPYC 4004 Series Processor 4484PX (4.40GHz,120W)
AMD EPYC 4004 Series Processor 4564P (4.50GHz,170W)
AMD EPYC 4004 Series Processor 4584PX (4.20GHz,120W)
AMD EPYC 4005 Series Processor 4345P (3.80GHz,65W)
AMD EPYC 4005 Series Processor 4465P (3.40GHz,65W)
AMD EPYC 4005 Series Processor 4545P (3.00GHz,65W)
AMD EPYC 4005 Series Processor 4565P (4.30GHz,170W)
AMD EPYC 4005 Series Processor 4585PX (4.30GHz,170W)
MEMORY ▼
Qty / Pick Option Price
16G DDR5 5600MHz ECC UDIMM
32G DDR5 5600MHz ECC UDIMM
Enterprise-Class HDD/SSD ▼
Qty / Pick Option Price
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
NETWORK CARD ▼
Qty / Pick Option Price
*No Network Card
*Please contact our sales rep for special requirements
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
NVIDIA 900-9X766-003N-SQ0 1-Port ConnectX-7 400G Network Adapter
Supermicro AOC-STGS-I2T-O x550-AT2 2-Port 10GbE PCI-E 3.0 Ethernet Card
Supermicro AOC-A100G-M2CM ConnectX-6 Dx 100GbE Network Card
Broadcom BCM957508-N2100G Dual-Port 100 Gb/S (QSFP56/28) Network Adapter
OPERATING SYSTEM ▼
Qty / Pick Option Price
*Please contact our sales for more operating system options
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Microsoft Windows Server 2025 Standard 64-bit-1User
WARRANTY ▼
Qty / Pick Option Price
*1 Year Parts Replacement Warranty
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
GPU/Coprocessor ▼
Qty / Pick Option Price
*No GPU
NVIDIA L40S 48GB GDDR6 GPU Card
NVIDIA A100 80GB HBM2e GPU Card
NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB
NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB
NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB
NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB
NVIDIA L40 48GB GDDR6 GPU Card
NVIDIA H100 80GB HBM2e GPU Card
NVIDIA H200 141GB HBM3e GPU Card
NVIDIA A10 24GB GDDR6 PCIe 4.0 Passive Cooling GPU
NVMe M.2 ▼
Qty / Pick Option Price
*No NVMe M.2 Drives
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB
Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB
Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB
Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB

Technical Specifications

Processor
CPU:
Single processor(s)
AMD EPYC™ 4004 / 4005 or AMD Ryzen™ 7000 / 9000 Series Processors

Core Count:
Up to 16C/32T

Note:
Supports up to 170W TDP CPUs (Air Cooled)

GPU
Max GPU Count:
Up to 1 double-width GPU

Supported GPU:
NVIDIA PCIe: RTX 2000 Ada, RTX 4070, RTX 4000 Ada Generation, RTX A4000, RTX A2000, RTX 6000 Ada Generation
AMD PCIe: Radeon Pro W7500, Radeon Pro W7800
Memory
Memory:
Slot Count: 4 DIMM slots
Max Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM

Memory Voltage:
1.1V
Chassis
Mid-tower workstation Server
Dimensions
Height:
14.25" (362 mm)
Width:
7.25" (184 mm)
Depth:
16.75" (425 mm)
Drive Bays
Drive Bays Configuration:
Default: Total 4 bays
4 front fixed 3.5" SATA drive bays
Option A: Total 4 bays
4 front fixed 2.5" SATA drive bays

M.2:
2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)

Peripheral Bays:
2 5.25" peripheral bays
Expansion Slots
PCI-Express (PCIe) Configuration:
Default
1 PCIe 5.0 x16 FHFL slot
Option A
2 PCIe 5.0 x8 FHFL slots
Power Supply
1x 668W Platinum Level (92%) power supply
Dimension (WxHxL):
150 x 86 x 185 mm

Input:
100-240Vac
668W: 100-240Vac / 50-60Hz

+12V:
Max: 54A / Min: 0.2A (100Vac-240Vac)
Max: 54A (100Vdc-240Vdc)

5V SB:
Max: 2A / Min: 0A

Output Type:
24pin ATX
Onboard Devices
SATA:
SATA (6Gbps) ; RAID 0/1 support

NVMe:
NVMe; RAID 0/1 support(Native)

Chipset:
AMD B650

Network Connectivity:
1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
2 RJ45 1GbE with Intel® I210-AT
Front Panel
LED:
HDD activity LED
Network activity LEDs
Power LED
System Overheat LED

Buttons:
Power On/Off button

Port:
USB 3.0 Port(s)
Input / Output
Video:
1 VGA port
1 HDMI 2.0b port
1 DisplayPort 1.4a port

Audio:
Rear Audio
Cooling
Fans:
1x 90mm Fan(s)
1x 80mm Fan(s)

Air Shroud:
1 Air Shroud
BIOS
BIOS Type:
AMI 32MB SPI Flash
Operating Environment
ROHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Detailed Specification
Management
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power configurations:
ACPI 6.0 Power Management

Security
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Supply Chain Security: Remote Attestation
Runtime BMC Protections

PC Health Monitoring
Voltage:
+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
