Home / Products / 3015MR-H8TNR
Please Inquire
3015MR-H8TNR

3015MR-H8TNR

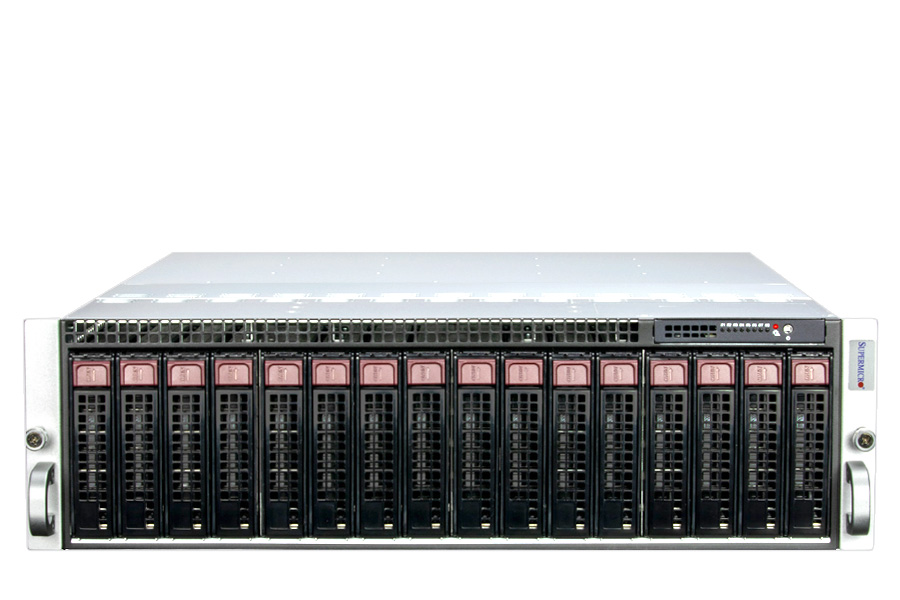

Supermicro 3U 8-Node 16Bays Single Processor AMD Rackmount MicroCloud Server

  • Single Socket AM5 (LGA-1718) AMD EPYC™ 4005/4004 or Ryzen™ 7000 / 9000 Series Processor up to 170W with air cooling
  • AMD Knoll - Integrated I/O Controller Hub
  • 8 sets of up to 192GB ECC/non ECC UDIMM; DDR5 5200MHz, in 4 DIMM sockets
  • 8 sets of 1 PCIe 5.0 x8 (in x16) LP slots + 1 Micro-LP slot
  • 8 sets of 2 front NVMe U.2/ SAS/ SATA3 drive bays with optional kits
  • 2200W Redundant 80+ Titanium Level high-efficiency power supplies
  • Cloud Computing, Web/Collocation Services, Web Cache, CDN, Video Streaming, Social Networking, Downloads, Corporate - WINS, DNS, Print, Login

Storage configuration notice:
External:
2x 2.5" U.2 Drive per node
M.2:
1x M.2 per node

To maintain quality and integrity, this product is sold only as a completely-assembled system.

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

CPU ▼
Qty / Pick Option Price
AMD EPYC 4005 Series Processor 4245P (3.90GHz,65W)
AMD EPYC 4004 Series Processor 4124P (3.80GHz,65W)
AMD EPYC 4004 Series Processor 4244P (3.80GHz,65W)
AMD EPYC 4004 Series Processor 4344P (3.80GHz,65W)
AMD EPYC 4004 Series Processor 4364P (4.50GHz,105W)
AMD EPYC 4004 Series Processor 4464P (3.70GHz,65W)
AMD EPYC 4005 Series Processor 4345P (3.80GHz,65W)
AMD EPYC 4005 Series Processor 4465P (3.40GHz,65W)
AMD EPYC 4005 Series Processor 4545P (3.00GHz,65W)
MEMORY ▼
Qty / Pick Option Price
16G DDR5 5600MHz ECC UDIMM
32G DDR5 5600MHz ECC UDIMM
NETWORK CARD ▼
Qty / Pick Option Price
*No Network Card
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
NVIDIA 900-9X766-003N-SQ0 1-Port ConnectX-7 400G Network Adapter
Supermicro AOC-STGS-I2T-O x550-AT2 2-Port 10GbE PCI-E 3.0 Ethernet Card
Supermicro AOC-A100G-M2CM ConnectX-6 Dx 100GbE Network Card
Broadcom BCM957508-N2100G Dual-Port 100 Gb/S (QSFP56/28) Network Adapter
OPERATING SYSTEM ▼
Qty / Pick Option Price
*Please contact our sales for more operating system options
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Microsoft Windows Server 2025 Standard 64-bit-1User
WARRANTY ▼
Qty / Pick Option Price
*1 Year Parts Replacement Warranty
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
NVMe M.2 ▼
Qty / Pick Option Price
*No NVMe M.2 Drives
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB
Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB
Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB
Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB
NVMe U.2/U.3 ▼
Qty / Pick Option Price
*No NVMe U.2/U.3 Drives
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

Technical Specifications

Processor
(per Node)
CPU:
Single Socket AM5 (LGA-1718)
AMD EPYC™ 4005/4004 Series Processor

Core Count:
Up to 16C/32T; Up to 128MB Cache

Note:
Supports 65W - 170W TDP CPUs (Air Cooled)
Air Cooled CPUs with TDP over 120W only supported under specific conditions. Contact a our representative for details.


GPU (per Node)
Max GPU Count:
Up to 1 single-width GPU

Supported GPU:
NVIDIA PCIe: T4, L4, A2
Memory
(per Node)
Memory:
Slot Count: 4 DIMM slots
Max Memory (1DPC): Up to 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM
Max Memory (2DPC): Up to 192GB 3600MT/s ECC/non-ECC DDR5 UDIMM

Memory Voltage:
1.1V
Chassis
3U Rackmount Chassis
Dimensions
Height:
5.21" (132 mm)
Width:
17.26" (438 mm)
Depth:
23.2" (589 mm)
Drive Bays
(per Node)
Drive Bays Configuration:
Default: Total 2 bays
2 front fixed 3.5"/2.5" NVMe/SAS*/SATA* drive bays
(*SAS/SATA support may require additional storage controller and/or cables)

M.2:
1 M.2 NVMe/SATA slot (M-key 2280/22110)
Expansion Slots
(per Node)
PCI-Express (PCIe) Configuration:
Default
1 PCIe 5.0 x8 (in x16) LP slot
1 PCIe 5.0 x8 MicroLP slot
Power Supply
2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL):
76 x 40 x 336 mm

Total Output Power:
(for CCC only)
(for UL/cUL use only)

Input:
1200W: 100-127Vac
1200W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
1980W: 220-230Vac / 50-60Hz
2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
2200W: 230-240Vac
2090W: 230-240Vac / 50-60Hz
2090W: 230-240Vdc / 50-60Hz (for CCC only)

+12V:
Max: 100A / Min: 0A (100Vdc-127Vdc)
Max: 100A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
Max: 183.3A / Min: 0A (220Vac-240Vac)
Max: 174.17A / Min: 0A (230Vac-240Vac)
Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
Max: 183.33A / Min: 0A (230Vdc-240Vdc)

5V SB:
Max: 1A / Min: 0A

Output Type:
Backplanes (gold finger)
Onboard Devices
(per Node)
NVMe:
NVMe; (Native)

Chipset:
AMD Knoll - Integrated I/O Controller Hub

Network Connectivity:
No NIC option supported
Front Panel
LED:
8 Individual Node Status Indicators
Power Failure

Buttons:
Power On/Off
Input / Output
(per Node)
USB:
2 USB 2.0 ports
1 Type-C port(front)
Video:
1 port
TPM:
1 TPM Onboard/port 80
Cooling
Fans:
4 Heavy Duty 8cm Fan(s)

Air Shroud:
8 Air Shrouds
BIOS
BIOS Type:
AMI 32MB SPI Flash EEPROM
Operating Environment
ROHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)
Detailed Specification
Management
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power configurations:
Power-on mode for AC power recovery
ACPI 6.0 Power Management

PC Health Monitoring
Temperature:
Monitoring for CPU and chassis environment
CPU:
Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN:
Fan speed control, Dual Cooling Zone
