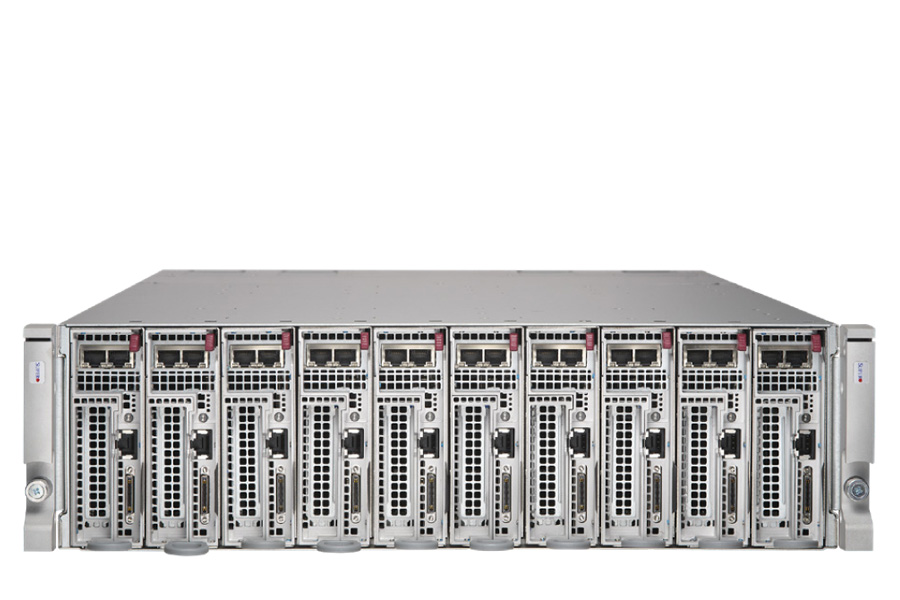

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | (per Node)
CPU: Single Socket AM5 (LGA-1718) AMD EPYC™ 4005/4004 Series Processor Core Count: Up to 16C/32T; Up to 128MB Cache Note: Supports 65W - 170W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 120W only supported under specific conditions. Contact a Supermicro representative for details. GPU (per Node) Max GPU Count: Up to 1 single-width GPU Supported GPU: NVIDIA PCIe: L4, A2 |
|---|---|
| Memory | (per Node)
Memory: Slot Count: 4 DIMM slots Max Memory (1DPC): Up to 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM Max Memory (2DPC): Up to 192GB 3600MT/s ECC/non-ECC DDR5 UDIMM Memory Voltage: 1.1V |
| Chassis | 3U Rackmount Chassis
|
| Dimensions | Height:
5.16" (131 mm) Width: 17.68" (449 mm) Depth: 30.51" (775 mm) |
| Drive Bays | (per Node)
Drive Bays Configuration: Default: Total 4 bays 2 internal fixed 2.5" PCIe 5.0 NVMe drive bays 2 internal fixed 2.5" SATA drive bays M.2: 1 M.2 NVMe slot (M-key 2280/22110) |
| Expansion Slots | (per Node)
PCI-Express (PCIe) Configuration: Default 1 PCIe 5.0 x16 LP slot 1 PCIe 5.0 x4 MicroLP slot |
| Power Supply | 4x 2000W Redundant (3 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL): 73.5 x 40 x 203 mm Input: 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 220-240Vac 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vdc 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 230-240Vdc / 50-60Hz (for China only) +12V: Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac) 12V SB: Max: 3.5A / Min: 0A Max: 3.5A Output Type: Backplanes (gold finger) |
| Onboard Devices | (per Node)
NVMe: NVMe; (Native) Chipset: System on Chip Network Connectivity: No NIC option supported |
| Front Panel | Buttons:
Power On/Off |
| Input / Output | (per Node)
USB: 2 USB 2.0 ports Video: 1 port TPM: 1 TPM Onboard/port 80 |
| Cooling | Fans:
5 Heavy Duty 8cm Fan(s) Air Shroud: 10 Air Shrouds |
| BIOS | BIOS Type:
AMI 32MB SPI Flash EEPROM |
| Operating Environment | ROHS:
RoHS Compliant Environmental Spec.: Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
| Detailed Specification | Management
Software:
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power configurations:
Power-on mode for AC power recovery
ACPI 6.0 Power Management
Security
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
PC Health Monitoring
Temperature:
Monitoring for CPU and chassis environment
CPU:
Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN
Fan:
speed control, Dual Cooling Zone
|
