$3,887.00
SB102-SU

SB102-SU

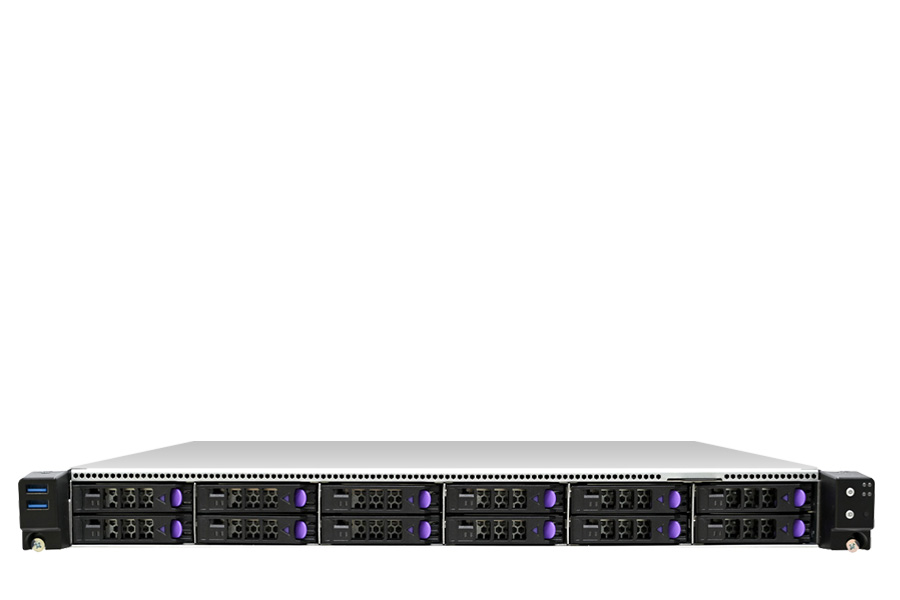

AIC 1U 12Bays Dual Processor Rackmount Server

  • 1U all-flash server solution
  • 12 x 2.5” front hot-swappable PCIe Gen5 NVMe bays
  • Supports Intel® Xeon® 6 Scalable Processors for highest every performance and improved power efficiency
  • Support DDR5 RDIMM and PCIe Gen5 extensions
  • Onboard Baseboard Management Controller for system management and IPMI control
  • Dedicated BMC management port
  • Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions

Storage configuration notice:
External:
12x 2.5" Hot-swap Drive
Internal:
2x M.2

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

CPU ▼
Qty / Pick Option Price
Intel® Xeon® 6 6700E Series Processors 6710E (2.40 GHz 250W)
Intel® Xeon® 6 6700E Series Processors 6731E (2.20 GHz 250W)
Intel® Xeon® 6 6700E Series Processors 6740E (2.40 GHz 250W)
Intel® Xeon® 6 6700E Series Processors 6746E (2.00 GHz 250W)
Intel® Xeon® 6 6700E Series Processors 6756E (1.80 GHz 225W)
Intel® Xeon® 6 6700E Series Processors 6766E (1.90 GHz 250W)
Intel® Xeon® 6 6700E Series Processors 6780E (2.20 GHz 330W)
Intel® Xeon® 6 6700P Series Processors 6730P (2.50 GHz 250W)
Intel® Xeon® 6 6700P Series Processors 6736P (2.00 GHz 205W)
Intel® Xeon® 6 6700P Series Processors 6737P (2.90 GHz 270W)
Intel® Xeon® 6 6700P Series Processors 6740P (2.10 GHz 270W)
Intel® Xeon® 6 6700P Series Processors 6745P (3.10 GHz 300W)
Intel® Xeon® 6 6700P Series Processors 6747P (2.70 GHz 330W)
Intel® Xeon® 6 6700P Series Processors 6760P (2.20 GHz 330W)
Intel® Xeon® 6 6700P Series Processors 6767P (2.40 GHz 350W)
Intel® Xeon® 6 6700P Series Processors 6787P (2.00 GHz 350W)
MEMORY ▼
Qty / Pick Option Price
Samsung 32GB DDR5 6400MHz ECC RDIMM Memory
Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Samsung 96GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Samsung 128GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Samsung 64GB DDR5 6400MHz ECC RDIMM Memory
Samsung 96GB DDR5 6400MHz ECC RDIMM Memory
NETWORK CARD ▼
Qty / Pick Option Price
*No Network Card
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
NVIDIA 900-9X766-003N-SQ0 1-Port ConnectX-7 400G Network Adapter
Supermicro AOC-STGS-I2T-O x550-AT2 2-Port 10GbE PCI-E 3.0 Ethernet Card
Supermicro AOC-A100G-M2CM ConnectX-6 Dx 100GbE Network Card
Broadcom BCM957508-N2100G Dual-Port 100 Gb/S (QSFP56/28) Network Adapter
OPERATING SYSTEM ▼
Qty / Pick Option Price
*Please contact our sales for more operating system options
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Microsoft Windows Server 2025 Standard 64-bit-1User
WARRANTY ▼
Qty / Pick Option Price
*1 Year Parts Replacement Warranty
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
NVMe M.2 ▼
Qty / Pick Option Price
*No NVMe M.2 Drives
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB
Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB
Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB
Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB
NVMe U.2/U.3 ▼
No options configured for this category.

Technical Specifications

Processor
Processor Support:
Dual Intel® Xeon® 6 6700E/6500P/6700P series CPU (TDP 350W)
Please contact Technical Support for more info/details about optimized CPUs and specialized system

UPI Speeds:
24GTs

Socket Type:
Socket E2 (LGA 4710 Socket)
Memory
Total 32 memory slots; 8 channel per CPU (2DPC)
DDR5 6400MHz(1DPC) 5200MHz(2DPC) 8000MHz(1DPC MCR) by 6700P/6500P series;
DDR5 6400MHz(1DPC) 5200MHz(2DPC 2Rx4 RDIMM only) by 6700E series;
DDR5 6400MHz(1DPC) 5200MHz(2DPC) 8000MHz(1DPC MCR) by Clearwater Forest
Chassis
1U Rackmount Chassis
Dimensions
(W x D x H)
mm: 438 x 820 x 43.75
inches: 17.2 x 32.2 x 1.72
Drive Bays
External:
12 x 2.5" hot-swap (PCIe Gen5 NVMe)

Internal:
2 x M.2/M-Key/22110/2280 (PCIe Gen4)

Backplane
Front: 3 x 8-port 2.5" Gen5 Tri-mode
Expansion Slots
2x PCIe Gen5 X16 slots (HHHL)
1x PCIe Gen5 X16 cable CEM (HHHL)
1x OCP 3.0 bay (PCIe Gen5 X16 width)
Power Supply
2000W 1+1 CRPS 80+ Platinum/Titanium by CPU/NVMe supporting wattage SKU options
Onboard Devices
SATA:
2 x SATA3 7-pin by ASM1062R (support RAID 0/1)
12 x SATA3 by 3 x Mini-SAS connectors (power by ASM1164)

BMC:
Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor
Baseboard Management Controller
Intelligent Platform Interface 2.0 (IPMI 2.0)
iKVM, Media Redirection, IPMI over LAN, Serial over LAN
HTML5
Redfish

Network Controllers:
Realtek RTL8211FS 1GbE for BMC dedicated management port
2 x Intel® I210 GbE ethernet controller
Graphics :
Integrated VGA support by ASPEED AST2600
Resolution up to 1920x1200 @60Hz 32bpp
Front Panel
Power button, ID button, Reset button, 2 x USB 3.0
Input / Output
Rear I/O
LAN:
2 x RJ45 connectors for dual port GbE
1 x RJ45 connector (for BMC management port)

USB:
2 x USB 3.0 Type-A

Video Output:
1 x DB-15 VGA connector
1 x Mini display port

Serial Port:
1 x DB-15 VGA connector
1 x Mini display port
Cooling
8x 4028mm easy swap fans + liquid cooling without pump
BIOS
BIOS Type:
AMI UEFI BIOS

BIOS Features:
ACPI
PXE
WOL
AC loss recovery
IPMI 2.0 KCS mode interface
SRIOV
SMBIOS
TPM
Serial console redirection
PCIe hotplug
Operating Environment
Storage temperature: -10°C(14°F) ~ 60°C(140°F)
Operating temperature: 0°C(32°F) ~ 35°C(95°F)
Storage operating humidity: 5%~95% non-condensing
Detailed Specification
Riser Card (included)
1x RC-PE1U42-TY
1x RC-PE1U43-TY

System Management
IPMI 2.0
KVM over IP
Media redirection
Temperature, fan, voltage, PSU sensor monitor
System temperature
System ID / System fail indicator
Remote power on/off/reset
SEL message alarm through mail
SNMP support
