EB201-ID

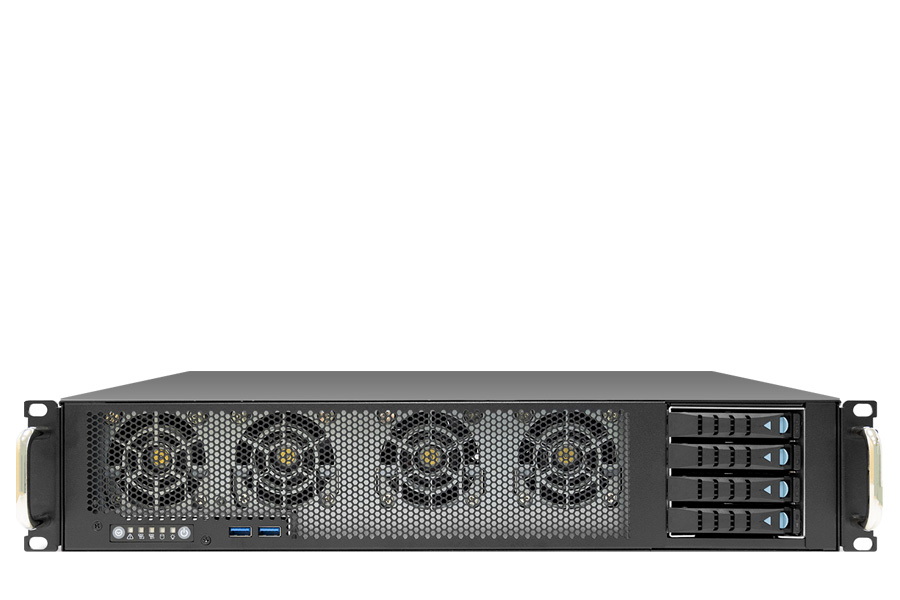

EB201-ID

AIC 2U 4Bays Dual Processor Rackmount Server

  • 2U edge server
  • Supports Intel® Xeon® 6 Scalable processors
  • Short-depth design for space critical applications
  • Easy maintain riser PCIe cards

Storage configuration notice:
External:
4x 2.5" Hot-swap Drive Bays

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

CPU ▼
Qty / Pick Option Price
Intel® Xeon® 6 6700E Series Processors 6710E (2.40 GHz 250W)
Intel® Xeon® 6 6700E Series Processors 6731E (2.20 GHz 250W)
Intel® Xeon® 6 6700E Series Processors 6740E (2.40 GHz 250W)
Intel® Xeon® 6 6700E Series Processors 6746E (2.00 GHz 250W)
Intel® Xeon® 6 6700E Series Processors 6756E (1.80 GHz 225W)
Intel® Xeon® 6 6700E Series Processors 6766E (1.90 GHz 250W)
Intel® Xeon® 6 6700E Series Processors 6780E (2.20 GHz 330W)
MEMORY ▼
Qty / Pick Option Price
Samsung 32GB DDR5 6400MHz ECC RDIMM Memory
Samsung 64GB DDR5 6400MHz ECC RDIMM Memory
Samsung 96GB DDR5 6400MHz ECC RDIMM Memory
Enterprise-Class HDD/SSD ▼
Qty / Pick Option Price
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
NETWORK CARD ▼
Qty / Pick Option Price
*No Network Card
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
NVIDIA 900-9X766-003N-SQ0 1-Port ConnectX-7 400G Network Adapter
Supermicro AOC-STGS-I2T-O x550-AT2 2-Port 10GbE PCI-E 3.0 Ethernet Card
Supermicro AOC-A100G-M2CM ConnectX-6 Dx 100GbE Network Card
Broadcom BCM957508-N2100G Dual-Port 100 Gb/S (QSFP56/28) Network Adapter
OPERATING SYSTEM ▼
Qty / Pick Option Price
*Please contact our sales for more operating system options
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Microsoft Windows Server 2025 Standard 64-bit-1User
WARRANTY ▼
Qty / Pick Option Price
*1 Year Parts Replacement Warranty
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000

Technical Specifications

Processor
Processor Support:
Intel® Xeon® 6 processors 6500/6700 series CPU
Please contact Technical Support for more info/details about optimized CPUs and specialized system
Memory
DDR5
6400MHz (1DPC RDIMM)
8000MHz (1DPC MCR)

Total 16 memory slots; 8 slots per CPU (1DPC)
Supports up to 4TB (3DS RDIMM)
Chassis
2U Rackmount Chassis
Dimensions
(W x D x H)
mm: 438 x 450 x 88
inches: 17.2 x 17.7 x 3.5
Drive Bays
External:
4 x 2.5" hot-swap (SATA/SAS/NVMe)
Expansion Slots
3 x PCIe X16 slots (HHHL)
Power Supply
800W 1+1 redundant power supply 80+ Platinum/Titanium
Onboard Devices
SATA:
2 x SATA 7-pin connectors with ASM1062R SATA 6Gbps Controller (Supports RAID 0, RAID 1, SPAN)

IPMI:
Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor
Baseboard Management Controller
Intelligent Platform Interface 2.0 (IPMI 2.0)
iKVM, Media Redirection, IPMI over LAN, Serial over LAN
SMASH support

Network Controllers:
2 x 10G Base-T/1GbE RJ45 connectors with Broadcom BCM57416 + BCM5720L co-design

Graphics:
Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor
PCIe VGA/2D Controller
1920x1200@60Hz 32bpp
Front Panel
System power on/off
System ID
System reset
2 x USB 3.0 Type A

LEDs
Power status
System alert
LAN activity
Drive activity
System ID
Input / Output
Rear I/O
LAN:
2 x 10G Base-T/1GbE RJ45 connectors with BCM57416/BCM5720L
1 x dedicated BMC management port with RJ45 connector

USB:
2 x USB 3.0 Type-A connectors

Video Output:
1 x DB-15 VGA connector

Serial Port:
1 x COM connector (by Audio Jack)
Cooling
4x 60x38mm easy swap fans
BIOS
BIOS Type:
AMI / SPI (Serial Peripheral Interface) FLASH interface

BIOS Features:
ACPI
PXE
WOL
AC loss recovery
IPMI 2.0 KCS interface
SMBIOS
Serial console redirection
BIOS boot specification
BIOS recovery mode
SRIOV
TPM
Operating Environment
Storage temperature: -10°C(14°F) ~ 60°C(140°F)
Operating temperature: 0°C(32°F) ~ 35°C(95°F)
Storage operating humidity: 5%~95% non-condensing
Detailed Specification
System Management
IPMI 2.0
KVM over IP
Media redirection
Temperature, fan, voltage, PSU sensor monitor
System temperature
SNMP support
System ID / System fail indicator
Remote power on/off/reset
SEL message alarm through mail
Intel NM
