G293-Z42-AAP1

G293-Z42-AAP1

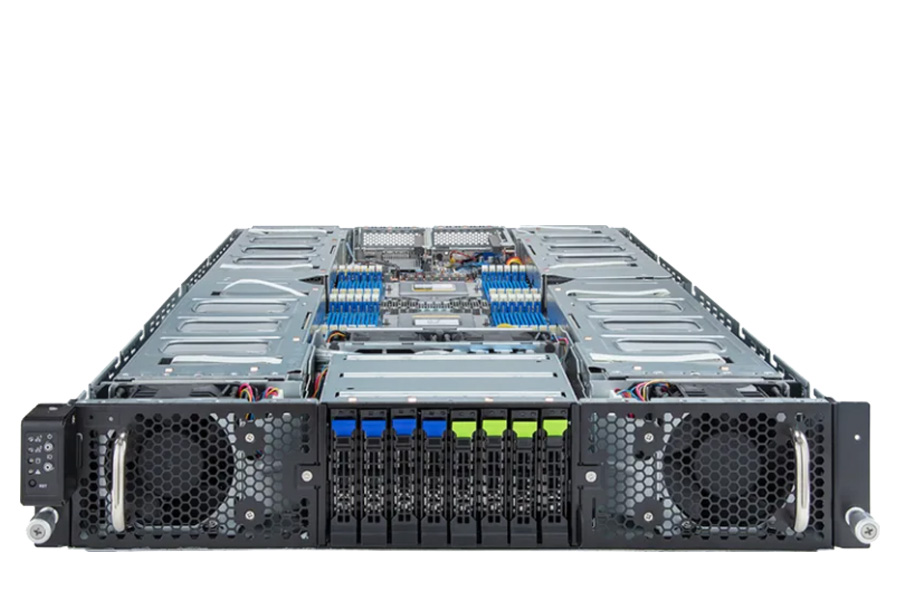

Gigabyte 2U 8Bays Dual AMD Processor up to 8GPU Rackmount Server

  • NVIDIA-Certified Systems™ - Data Center Servers
  • Supports up to 8 x Dual slot Gen5 GPUs
  • Dual AMD EPYC™ 9005/9004 Series Processors
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 2 x 10Gb/s LAN ports via Broadcom® BCM57416
  • 4 x 2.5" Gen5 NVMe/SATA/SAS hot-swap bays
  • 4 x 2.5" SATA/SAS hot-swap bays
  • 8 x FHFL PCIe Gen5 x16 slots for GPUs
  • 2 x LP PCIe Gen5 x16 slots for add-in cards
  • Dual 3000W 80 PLUS Titanium redundant power supply

Storage configuration notice:
External:
8x 2.5" Hot-swap Drive Bays
Internal:
2x M.2

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

CPU ▼
Qty / Pick Option Price
AMD EPYC 5th Gen Processor 9015 (3.6GHz,125W)
AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)
AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)
AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)
AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)
AMD EPYC 5th Gen Processor 9115 (2.6GHz,125W)
AMD EPYC 5th Gen Processor 9135 (3.65GHz,200W)
AMD EPYC 5th Gen Processor 9255 (3.2GHz,200W)
AMD EPYC 5th Gen Processor 9335 (3.00GHz,210W)
MEMORY ▼
Qty / Pick Option Price
Samsung 32GB DDR5 6400MHz ECC RDIMM Memory
Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Samsung 96GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Samsung 128GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Samsung 64GB DDR5 6400MHz ECC RDIMM Memory
Samsung 96GB DDR5 6400MHz ECC RDIMM Memory
Enterprise-Class HDD/SSD ▼
Qty / Pick Option Price
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
OPERATING SYSTEM ▼
Qty / Pick Option Price
*Please contact our sales for more operating system options
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Microsoft Windows Server 2025 Standard 64-bit-1User
WARRANTY ▼
Qty / Pick Option Price
*1 Year Parts Replacement Warranty
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
GPU/Coprocessor ▼
Qty / Pick Option Price
*No GPU
NVIDIA L40S 48GB GDDR6 GPU Card
NVIDIA A100 80GB HBM2e GPU Card
NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB
NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB
NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB
NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB
NVIDIA L40 48GB GDDR6 GPU Card
NVIDIA H100 80GB HBM2e GPU Card
NVIDIA H200 141GB HBM3e GPU Card
NVIDIA A10 24GB GDDR6 PCIe 4.0 Passive Cooling GPU
(Optional) Enterprise-Class HDD/SSD ▼
Qty / Pick Option Price
*No Hard Drive
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
NVMe M.2 ▼
Qty / Pick Option Price
*No NVMe M.2 Drives
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB
Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB
Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB
Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB

Technical Specifications

Processor
CPU:
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors

Dual processor, TDP up to 210W
At 30°C ambient, cTDP up to 240W

If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket:
2 x LGA 6096
Socket SP5
Memory
24 x DIMM slots
DDR5 memory supported
12-Channel memory per processor

AMD EPYC™ 9005:
RDIMM: Up to 6400 MT/s

AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
Chassis
2U Rackmount Chassis
Drive Bays
Front hot-swap:
4 x 2.5" Gen5 NVMe/SATA/SAS [1]
4 x 2.5" SATA/SAS [1]
(NVMe from CPU_1)
(SATA from CPU_1)

SAS card is required to support SAS drives.
Expansion Slots
Riser Card CRSG622 x 2:
4 x FHFL x16 (Gen5 x16), from PEX89048, for GPUs

Riser Card CRSG623 x 2:
4 x FHFL x16 (Gen5 x16), from PEX89048, for GPUs

Riser Card CRSG01F x 2:
2 x LP x16 (Gen5 x16), from CPU_0

Note:
Maximum GPU dimensions (LxWxH): 285 x 111.5 x 39.5mm.
The system is only validated with a uniform GPU model.
Power Supply
Dual 3000W 80 PLUS Titanium redundant power supply

AC Input:
100-127V~/ 15.5A, 50-60Hz
200-220V~/ 15.5A, 50-60Hz
220-240V~/ 15.5A, 50-60Hz

DC Input: (Only for China)
240Vdc/ 15.5A

DC Output:
Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A

Max 2600W/ 200-220V~
+12.2V/ 213A
+12Vsb/ 3A

Max 3000W/ 220-240V~ or 240Vdc Input
+12.2V/ 245A
+12Vsb/ 3A

The system power supply requires C19 power cord.
Onboard Devices
LAN:
Rear:
2 x 10Gb/s LAN (1 x Broadcom® BCM57416)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video:
Integrated in ASPEED® AST2600
1 x VGA port
Input / Output
Front I/O:
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

Rear I/O:
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
Cooling
System Fans
8 x 80x80x38mm (18,300rpm)
Operating Environment
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Included Items
System Management
ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
