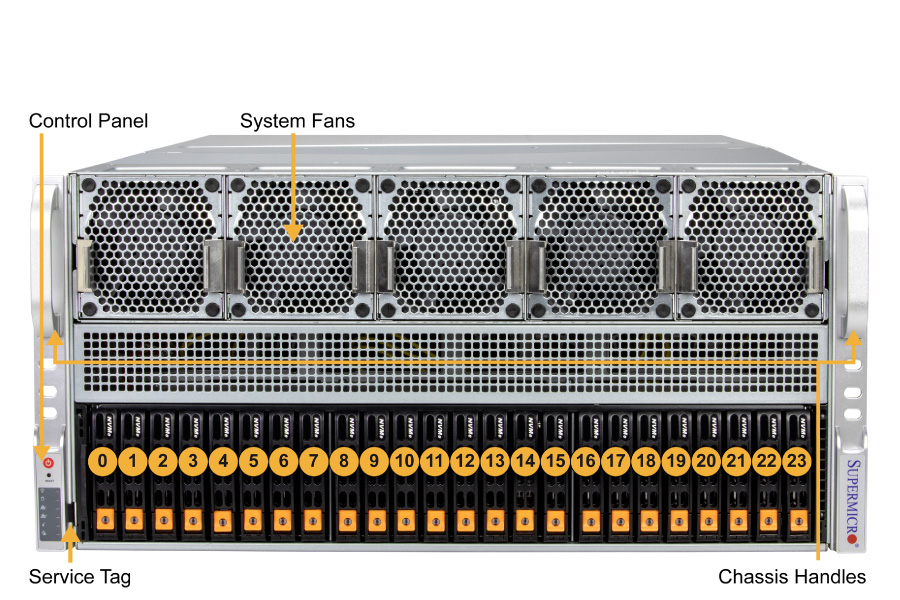

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | CPU:
Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores Core Count: Up to 128C/256T; Up to 504MB Cache per CPU Note: Supports up to 500W TDP CPUs (Air Cooled) GPU Max GPU Count: Up to 2 quad-width or 2 triple-width or 8 double-width or 10 single-width GPUs Supported GPU: NVIDIA PCIe: H100 NVL, NVIDIA RTX PRO™ 6000 Blackwell Server Edition, H200 NVL (141GB), L40S, L4 View GPU Options CPU-GPU Interconnect: PCIe 5.0 x16 Switch Dual-Root GPU-GPU Interconnect: NVIDIA® NVLink® Bridge (optional) Certification: Nvidia Certified |
|---|---|
| Memory | Memory:
Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM Memory Voltage: 1.1V |
| Chassis | 5U Rackmount Chassis
|
| Dimensions | Height:
8.75" (222.5 mm) Width: 17.2" (438 mm) Depth: 31" (786.1 mm) |
| Drive Bays | Drive Bays Configuration
Default: Total 24 bays
24 front hot-swap 2.5" PCIe 5.0 NVMe drive bays
M.2:
2 M.2 NVMe slots (M-key)
|
| Expansion Slots | PCI-Express (PCIe) Configuration
Default
13 PCIe 5.0 x16 FHFL slots
M.2:
2 M.2 PCIe 5.0 x4 NVMe slots (B+M-key)
|
| Power Supply | 6x 2700W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL): 73.5 x 40 x 203 mm Input: 2700W: 200-240Vac 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) +12V: Max: 225A / Min: 0A (200Vac-240Vac) Max: 225A / Min: 0A (240Vdc-240Vdc) 12V SB: Max: 3.5A / Min: 0A Max: 4A / Min: 0A Output Type: Backplanes (gold finger) |
| Onboard Devices | Chipset:
System on Chip Network Connectivity: 2 RJ45 10GbE with Intel® X710-AT2 |
| Front Panel | LED:
Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED Buttons: Power On/Off button System Reset button |
| Input / Output | LAN:
2 RJ45 10 GbE LAN ports (Intel® I350) USB: 2 USB 3.0 Type-A ports(Rear) Video: 1 VGA port |
| Cooling | Fans:
10 heavy duty fans with optimal fan speed control Air Shroud: 1 Air Shroud |
| BIOS | BIOS Type:
AMI 32MB SPI Flash EEPROM |
| Operating Environment | Environmental Spec.
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
| Detailed Specification | Management
Software: SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! Power configurations: Power-on mode for AC power recovery ACPI Power Management Security Hardware: Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant Features: Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown PC Health Monitoring CPU: Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator FAN: Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors |
