$10,701.00
F2026-01-G5

F2026-01-G5

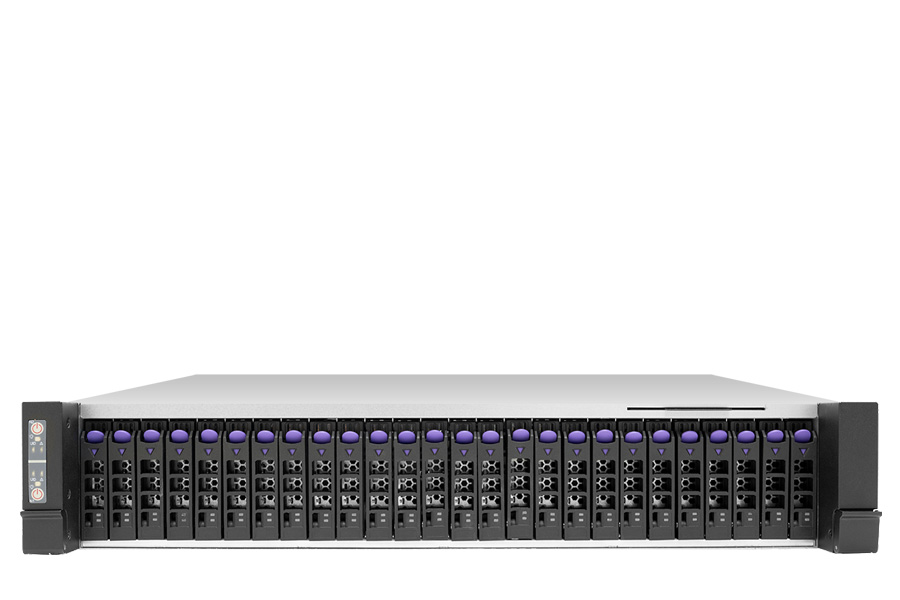

AIC 2U 26Bays JBOF

  • 2U high-availability support 26 x hot swap Gen5 U.2 dual port drives
  • Broadcom 89144 PCIe Gen5 switch base bridge board
  • Supports dual controllers up to 8 x PCIe Gen5 x16 slots
  • Designed for low latency and high performance applications
  • PCIe Gen5 interface to support NVMe over fabrics (3rd party cards)
  • Fully redundant, fault-tolerant system supporting hot swap design for easy maintence and management
  • Intelligent Enclosure Managment with IPMI 2.0 compliance
  • Tool-less tray design

Storage configuration notice:
External:
26x 2.5" Hot-swap Drive Bays

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

WARRANTY ▼
Qty / Pick Option Price
*1 Year Parts Replacement Warranty
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
NVMe U.2/U.3 ▼
Qty / Pick Option Price
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

Technical Specifications

Detailed Specification
General
Number of Controller:
2

PCIe Switch:
Broadcom PEX 89144

Host/Expansion Interface:
4 x PCIe Gen5 x16 per canister
8 x PCIe Gen5 x16 per system
Supports up to 4 DPUs

Drives Supported
Drive Interface:
SFF-8639
Form Factor:
U.2

Administration / Management
Admin/Firmware Upgrade:
BMC with IPMI 2.0 compliance
LED Indicators:
Yes

Hot swap & Redundancy
Disk Drive:
26
Cooling:
7 x 4056 PWM fans per canister
Total 14 fans

Power Supply:
3200W 1+1 hot swap redundant 80+ Titanium

Power Entry:
Dual AC Inlet

Controller:
Dual

Electrical & Environment
Universal A/C Input:
100~240V AC Full Range

Operating Environment:
Temperature 0ºC to 35ºC
Relative humidity 20% to 80%

Non-operating Environment:
Storage temperature : -20° to 60°C
System relative humidity : 10% to 90%

Dimensions (W x D x H):
mm:
438 x 750 x 88
inches:
17.2 x 29.5 x 3.5
