W775-V10-L01

W775-V10-L01

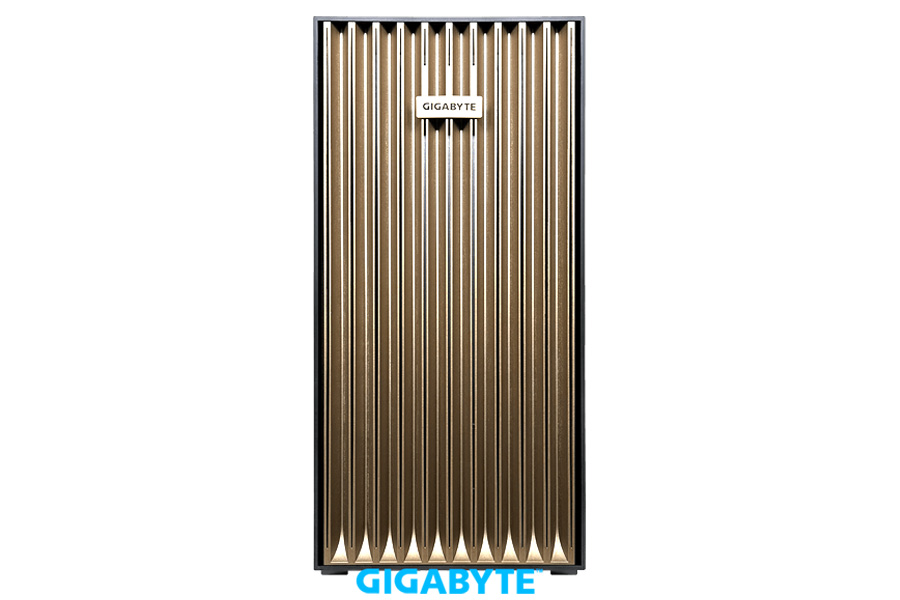

Gigabyte NVIDIA GB300 Grace™ Blackwell Ultra Desktop Superchip AI Workstation

  • 1x NVIDIA Blackwell Ultra GPU
  • 1x NVIDIA Grace-72 Core Neoverse V2 CPU
  • 252 GB HBM3E GPU memory with 7.1 TB/s total bandwidth
  • 496 GB LPDDR5X CPU memory with up to 396 GB/s bandwidth
  • 2x 400 Gb/s QSFP ports via NVIDIA ConnectX®-8 SuperNIC™
  • 1x 10 Gb/s LAN port via Marvell AQC113
  • 4x M.2 slots with PCIe Gen5 x4 interface
  • 1x PCIe Gen5 x16 slots
  • 2x PCIe Gen5 x8 slots
  • Single 1600W ATX 80 PLUS Gold power supply

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

No configuration menus found for this product.

Technical Specifications

Processor
NVIDIA Grace™ CPU:
496 GB of LPDDR5X memory with ECC
396 GB/s memory bandwidth

NVIDIA Blackwell Ultra GPU:
252 GB HBM3E
7.1 TB/s memory bandwidth

Superchip:
NVIDIA GB300 Grace™ Blackwell Ultra Desktop Superchip:
1x NVIDIA Grace™ CPU
1x NVIDIA Blackwell Ultra GPU
Connected with NVIDIA NVLink™-C2C
Chassis
Workstation
Dimensions
WxHxD
218mm x 519.5mm x 726.3mm
Drive Bays
Internal M.2:
2x M.2 (2240/2260/2280), PCIe Gen5 x4, from CPU
2x M.2 (2240/2260/2280), PCIe Gen6 x4, from ConnectX-8
Expansion Slots

Slot_3: PCIe x16 (Gen5 x8)
Slot_2: PCIe x8 (Gen5 x8)
Slot_1: PCIe x8 (Gen5 x8)
1 x M.2 (2230), E-key (Wi-Fi), PCIe Gen2 x1, from ConnectX-8
Power Supply
Single 1600W ATX 80 PLUS Gold power supply

The system power supply requires C19 power cord.

Note:
220-240V AC input is recommended for optimized user experience.
Onboard Devices
LAN:
2x 400 Gb/s QSFP (1 x NVIDIA ConnectX®-8 SuperNIC™)
1x 10 Gb/s LAN (1 x Marvell AQC113)
1x 10/100/1000 Mbps Management LAN

Video:
Integrated in onboard BMC
1 x Mini-DP

Audio:
Realtek® ALC4080 Audio Codec
Front:
2x Audio jacks (Audio out/Mic)
Rear:
3x Audio jacks (Audio in/Audio out/Mic)
Input / Output
Front I/O:
1x USB 3.2 Gen2 port (Type-C)
2x USB 3.2 Gen1 ports (Type-A)
2x Audio jacks (Audio out/Mic)
1x Power button with LED
1x Reset button with storage activity LED

Rear I/O:
4x USB 3.2 Gen2 ports (Type-A)
1x Micro USB port (USB-to-UART)
1x Mini-DP
2x QSFP ports
1x RJ45 port
1x MLAN port
2x Wi-Fi antenna ports
3x Audio jacks (Audio in/Audio out/Mic)
Cooling
System Fans:
3x 120x120x25mm
Operating Environment
Operating temperature: 10°C to 35°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)

Note:
To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 45°C.
Included Items
OS Compatibility:
NVIDIA DGX OS

Packaging Content:
1x W775-V10-L01
1x Superchip liquid cooling kit
