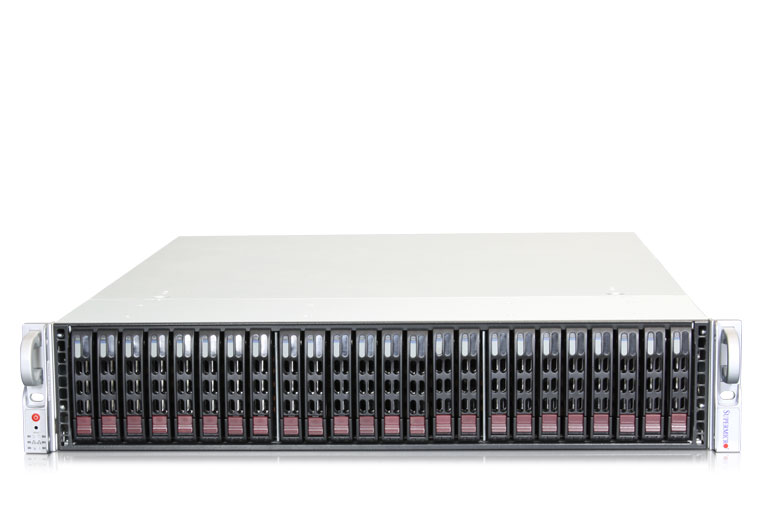

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | CPU:
Intel® Atom™ D525 processor System Bus: DMI |
|---|---|
| Memory | (per node)
Memory Capacity: Two 204-pin SO-DIMM sockets Up to 4GB unbuffered non-ECC DDR3 800MHz SO-DIMM (Single Channel) Memory Type: DDR3 800MHz unbuf., non-ECC SO-DIMM DIMM Sizes: 2 GB, 1 GB, 512 MB, 256 MB Memory Voltage: 1.5V only |
| Chassis | 2U Rackmount
|
| Dimensions | Height:
3.47" (88mm) Width: 17.25" (438mm) Depth: 26.75" (679mm) Gross Weight: 85 lbs (38.6kg) Available Colors: Black |
| Drive Bays | 24x 2.5" Hot-swap SATA drive bays total
Enterprise SATA HDD only recommended |
| Power Supply | 720W (1+1) Redundant high-efficiency power supply with PMBus
AC Input: 100-240 V, 50-60 Hz, 4-9 Amp DC Output: 3 Amp @ +5V standby 59 Amp @ +12V With Power Distributor: +5V: 30 Amp Certification: 80+ Gold Certified |
| Onboard Devices | Chipset:
Intel ICH9R Express Intel 82574L SATA: 6x SATA (3 Gbps) RAID 0, 1, 5, 10 support (Windows) RAID 0, 1, 10 support (Linux) IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Nuvoton WPCM450 BMC Network Controllers: High Performance Intel® 82574L Dual Port Gigabit LAN Virtual Machine Device Queues High efficient I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI) VGA: Matrox G200eW 16MB DDR2 Super I/O: Nuvoton W83627DHG UBE |
| Front Panel | (per hot-swap tray)
Buttons: Power On/Off button LEDs: Power status LED Network activity LED System overheat/fan fail/power fail LED |
| Input / Output | (per node)
Serial ATA: 3x SATA ports (3Gbps) through hot-plug slot, with RAID 0, 1, 5 1x SATA port onboard USB: 6 USB 2.0 ports (2 rear + 4 via 2 headers) LAN: 2x RJ45 LAN port IPMI: Integrated IPMI 2.0 with shared LAN DOM: 1x DOM (Disk on Module) power connector Others: 2x COM port headers ready TPM 20-pin header ready |
| Cooling | 4x 80mm heavy duty fans with PWM fan speed controls
|
| BIOS | BIOS Type:
AMI BIOS, 8Mb SPI Flash ROM BIOS Features: Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 1.0 / 2.0 / 3.0 USB Keyboard support SMBIOS 2.3 |
| Operating Environment | RoHS:
RoHS Compliant Environmental Spec.: Operating Temperature: 10°to 35°C (50°to 95°F) Non-operating Temperature: -40°to 70°C (-40°to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5 to 95% (non-condensing) |
| Included Items | Motherboard / Chassis:

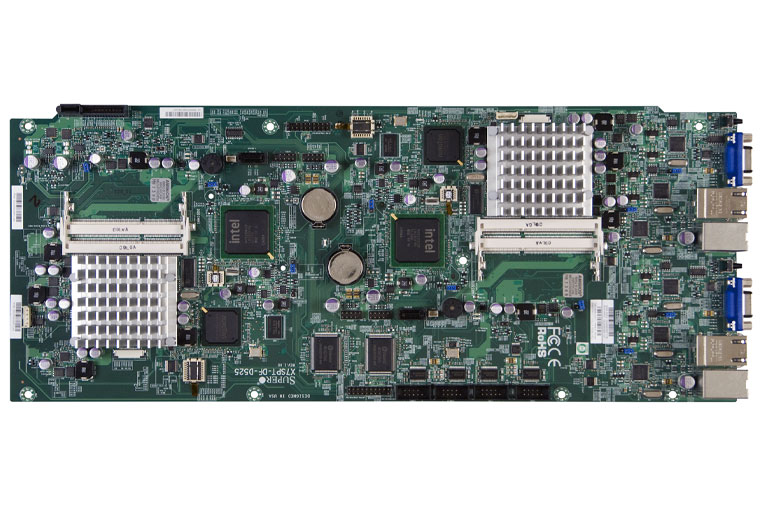

4x MBD-X7SPT-DF-D525+ 1x CSE-217HO-R720B Backplane: 4x BPN-ADP-6SATA3 Backplane: 1x BPN-SAS-217HQ CD: 1x CDR-X7-UP Power Supply: 2x PWS-721P-1R Drive Tray(s): 24x MCP-220-00047-0B Rails: 1 set MCP-290-00053-0N |
