DM1W-6500F

DM1W-6500F (15 Pcs in Stock)

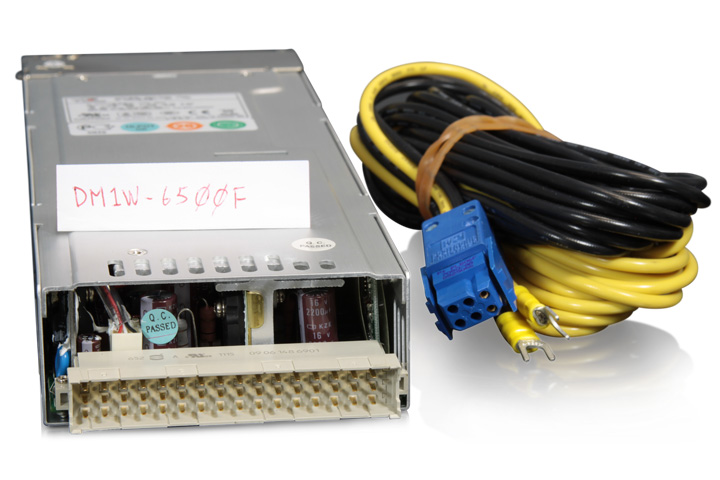

Zippy 500W DC to DC Single Power Supply Module for Housing M1W4-6D50F

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

No configuration menus found for this product.

Technical Specifications

Detailed Specification
Brand:
Zippy

Model:
DM1W-6500F

Type:
DC to DC Single power supply module
Support Zippy DM2W6500F & ZIP-DM1W4-6D50F power supply

Rating:
500W

Voltage:
-36V - -72 VDC

Input Current:
15A (RMS) for -48VDC

Inrush Current:
30A Max

Hold up time:
1.6ms min. at full load & -48VDC input Voltage

Efficiency:
71% Typical at DC-48 input, full Load

Over voltage protection:
Yes

Overload protection:
Yes

Over Current Protection:
Yes

Short Circuit Protection:
Yes

MTBF:
100,000 hours

EMI Noise Filter:
FCC Class A, CISPR22 Class A

Cooling:
Two 38 x 38 x 28 mm DC Fans

Dimension:
3.87"(W) x 1.57"(H) x 10.44"(D)

Conditon:
New
