R2W-6500P-R

R2W-6500P-R (1 Pc in Stock)

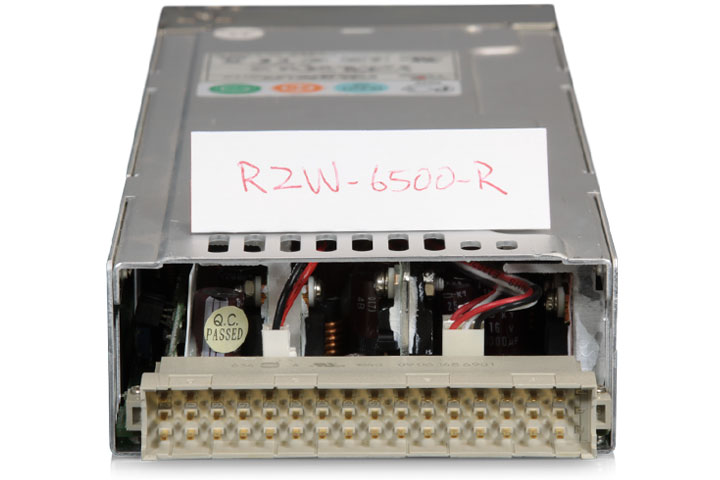

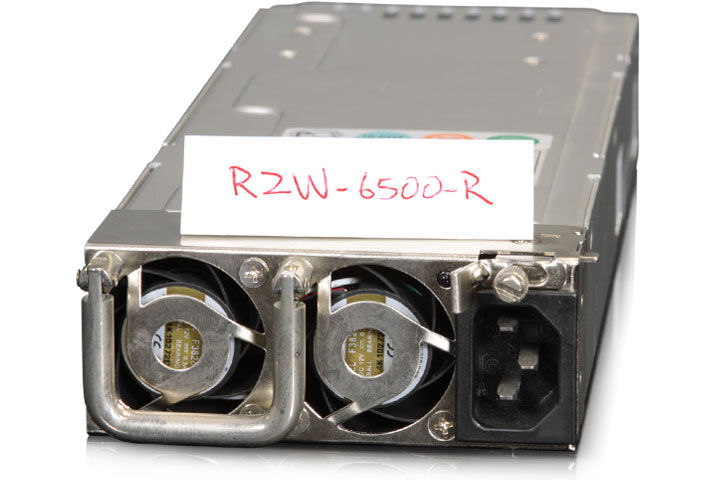

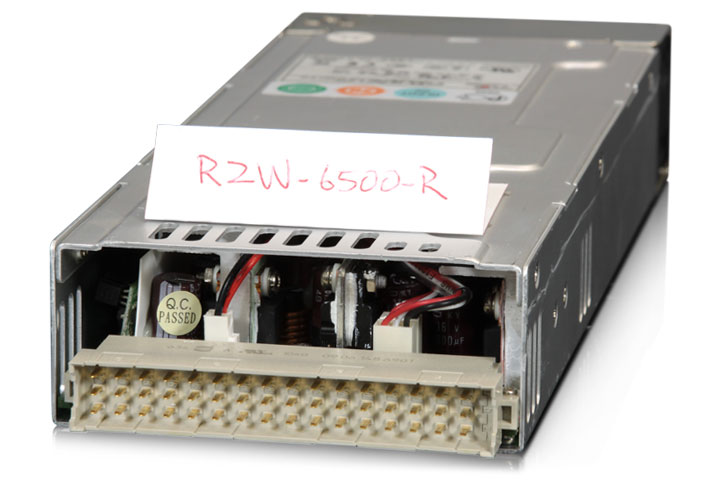

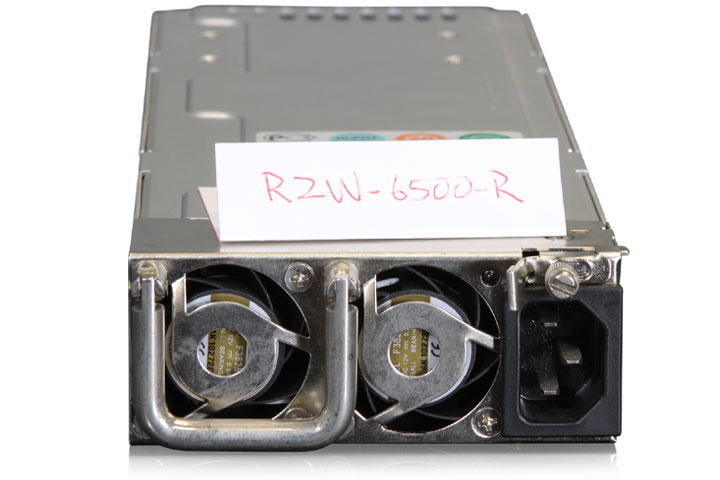

Zippy 500W R2W-6500P-R Single Power Supply

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

No configuration menus found for this product.

Technical Specifications

Detailed Specification
Brand:
EMACS/Zippy

Model:
M1W-6500P

Type:
Single power supply module
Support Zippy M2W6500F & Zippy M1W46D50F power supply

Rating:
500W(max)

Output:
+5V @ 30A,+12V @ 32A, +3.3V @ 0-24A, -5V @ 0-0.7A,
-12V @ 0-0.7A, +5VSB 0-2A, +5V and 3.3V Total Max 43A

TEMPERATURE RANGE:
OPERATING 0°C---40°C

Over voltage protection:
Yes

Overload protection:
Yes

Over Current Protection:
Yes

Short Circuit Protection:
Yes

COOLING:
2x  38mm DC FAN

Dimension:
3.87"(W) x 1.57"(H) x 10.44"(D)

Conditon:
New
