LSI-9260-4I

LSI-9260-4I (1 Pc in Stock)

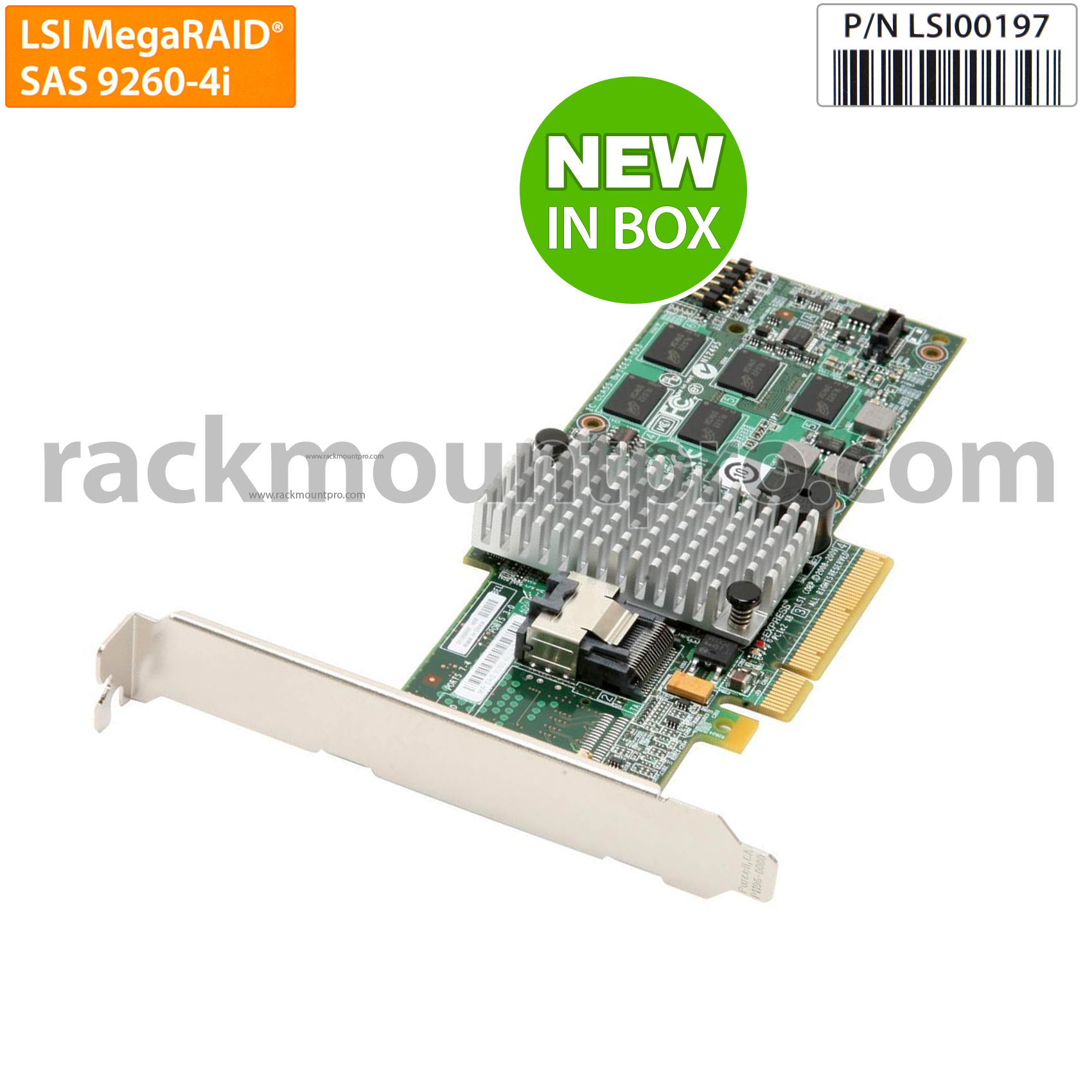

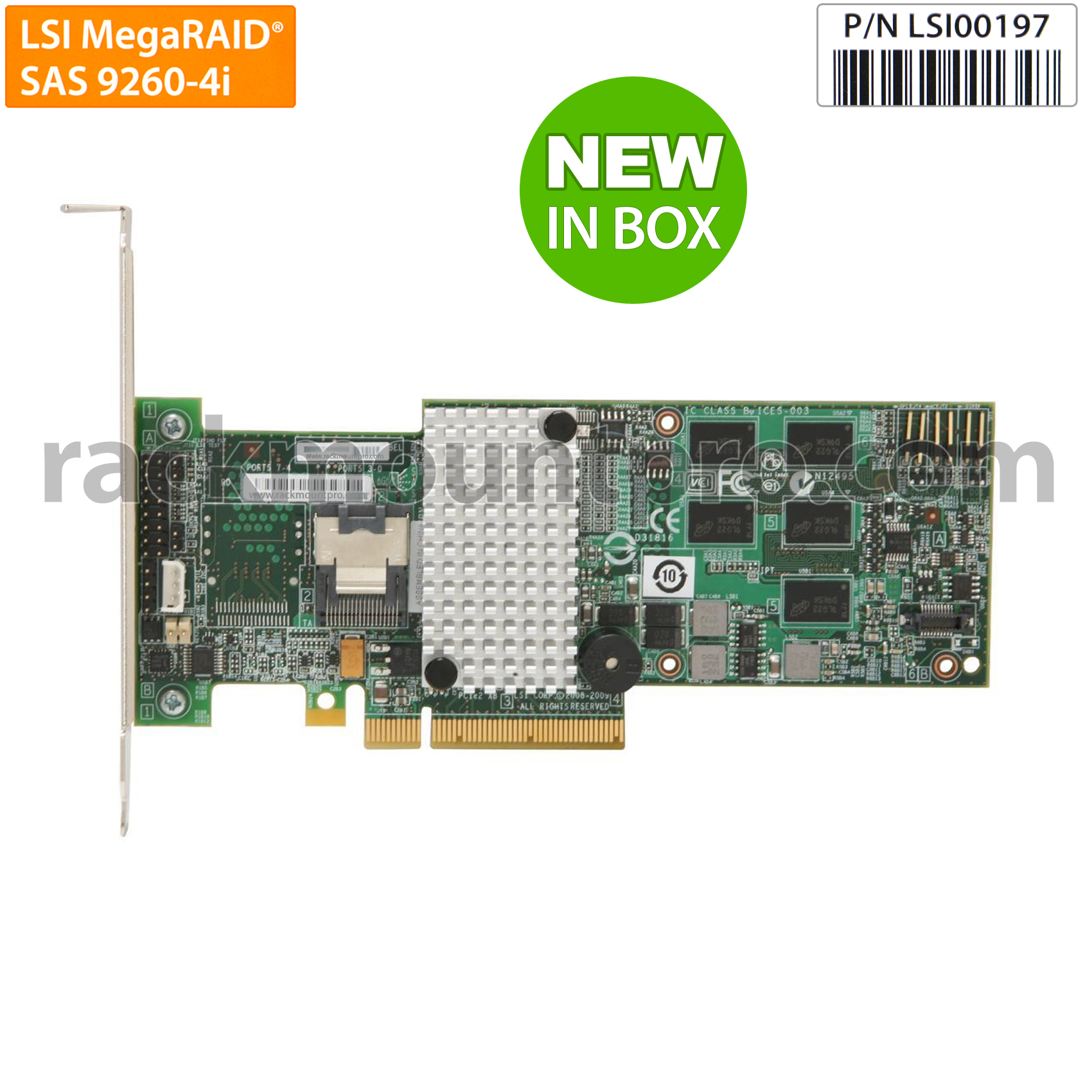

LSI LSI00197 9260-4i 6Gb/s 4-Port PCIe 2.0 512MB Cache MegaRAID Controller Card NEW

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

No configuration menus found for this product.

Technical Specifications

Detailed Specification
Brand:
LSI

Model:
SAS 9260-4i (LSI00197)

Type:
SAS / SATA

Interface:
4 Ports PCI-Express host interface

Connectors:
1 X internal Mini SAS (SFF-8087)

Transfer Rate:
6 Gb/s throughput per port

Cache Memory:
512MB DDR II Cache 800MHz

RAID:
Raid 0/ 1/ 5/ 6/ 50/ 60

Bus Interface:
PCI-Express 2.0 x8

SAS Processor:
LSISAS2108ROC

Drives Supported:
32 (Max)

Software MyStorage:
Drive monitoring, HBA management, drive topology

OS Support:
  • Microsoft Windows Server 2003/2008 (32-bit, 64-bit) (x86 and AMD64) XP, Win 7
  • Red Hat Linux RHEL 3
  • Novell NetWare 5.1 and 6.5
  • SuSE Linux/SLES
  • Sun SPARC Solaris 2.6 thru 2.10

MTFB:
>200,000 Hours

Bracket:
Full Height and Low-Profile

PCI Form Factor:
6.6 x 2.7 (Low-Profile)
