$1,099.00
WX-428

WX-428

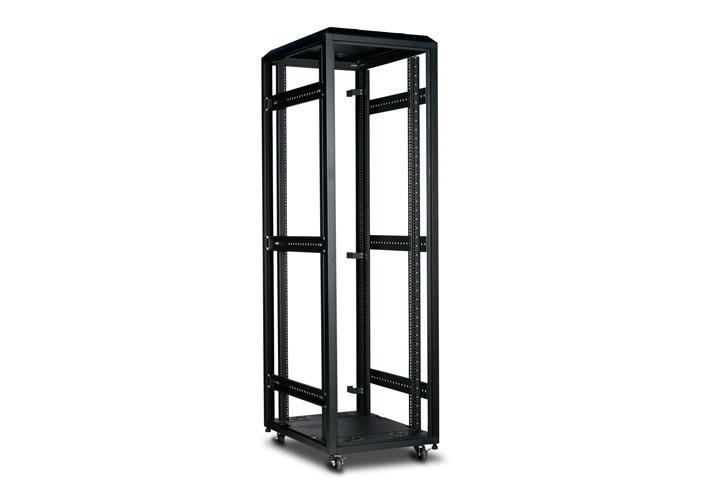

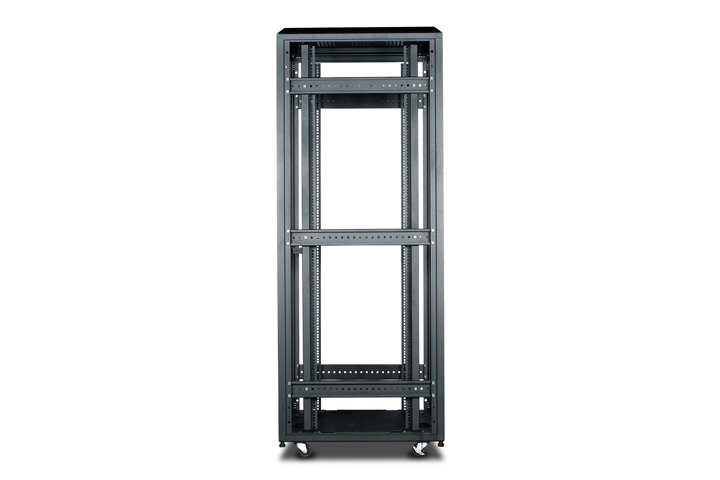

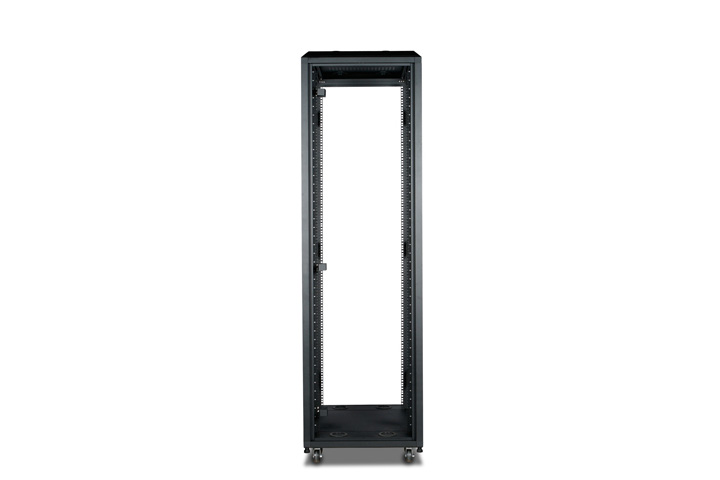

42U 4-Post 31.5" (800mm) Open Frame Rack

  • Universal Fit Most of Rackmount Chassis and Equipment

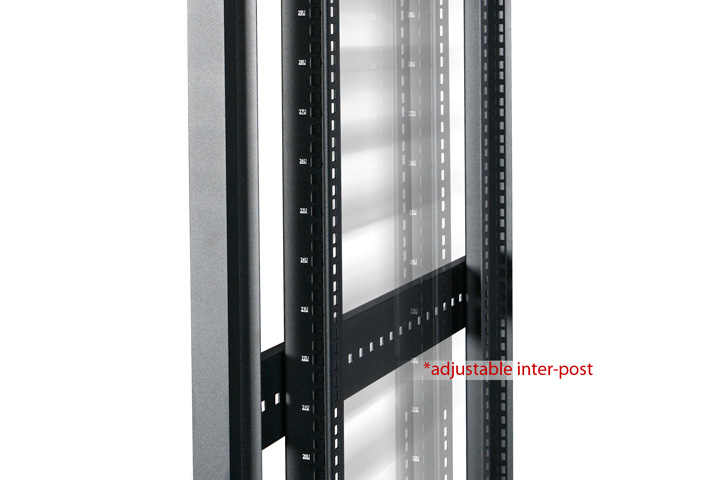

  • Fully Adjustable Rails. Mounting Rails are Horizontally Adjustable to Ensure the Best
  • Fit of Rack-mount Chassis
  • Optional Side Panels
  • Optional Front/Rear Doors
  • Locking Mechanism Design on Casters
  • Comes with M5 Mounting Screws and Cage Nuts

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

No configuration menus found for this product.

Technical Specifications

Detailed Specification
Model Number:
WX-428
RoHS Compliance Version:
Yes
Form Factor:
42U
Material:
Horizontal Rails:SPCC t:2.0mm
Vertical Rails:SPCC t:2.0mm

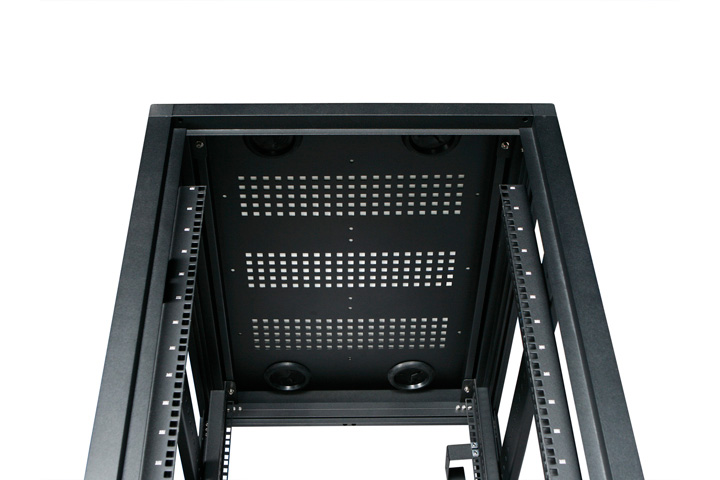

Top Panel:SPCC t:1.2mm
Color:
Black (RAL9011)
Loading Capacity:
2200 lbs
Supported Chassis Depth:
29" and under
Internal Dimensions:
Height: 75"
Depth: outer post-to-post 26.5" max
Dimensions (WxHxD):
23.50" x 82.50" x 31.50"
597 mm x 2,096 mm x 800 mm
Notes:

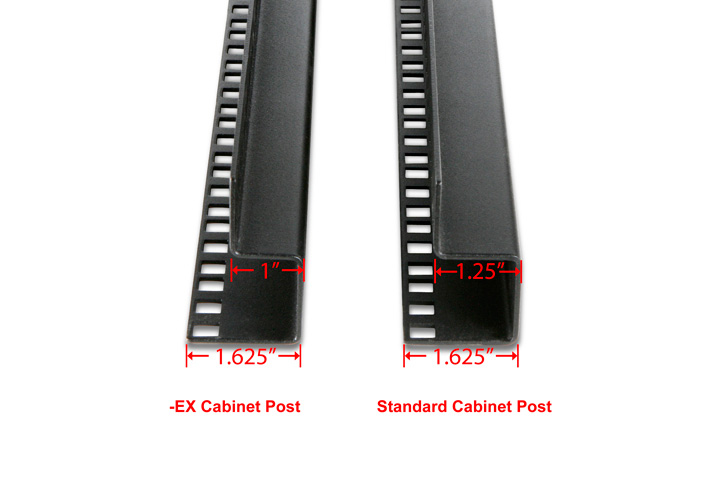

- for HP/ DELL/ IBM servers equipped with sliding rails, please contact sales person for availability of model number WX-428-EX.
- HTS code: 8473.30.5100 (ECCN is not applicable).
- make sure sliding rails minimum mounting depth is within the cabinet's internal maximum mounting depth 26.5".
