Home / Products / WO45AB
$562.00
WO45AB

WO45AB

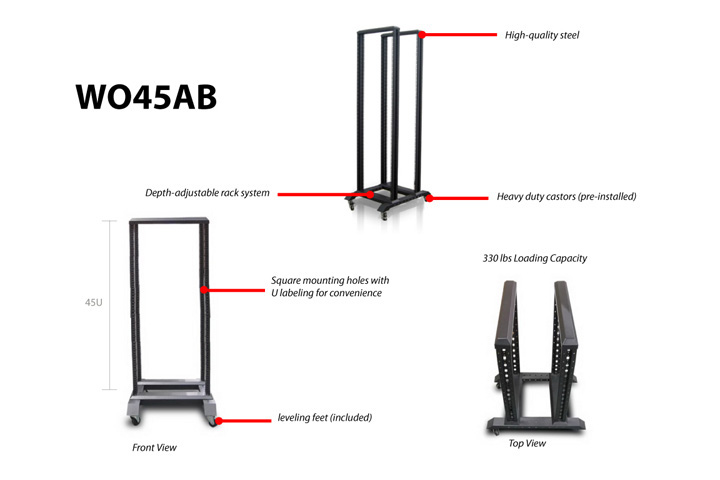

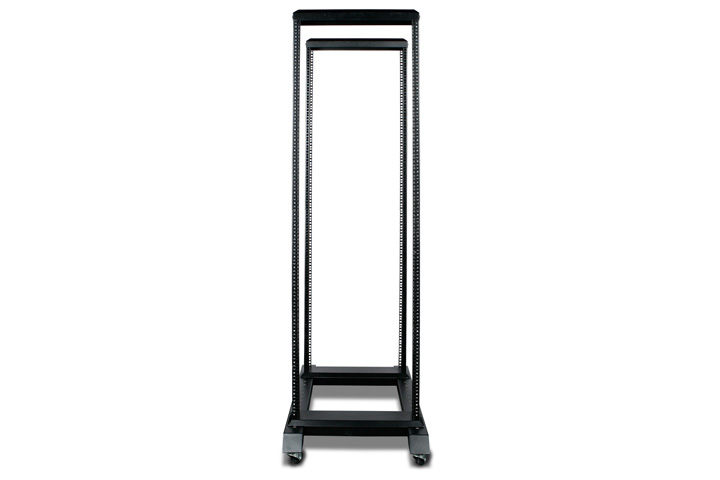

45U 4 Post 39.37" (1000mm) Open Frame Rack

  • Open Frame Construction Enables Quick Access to Rackmount System
  • Max Air Flow and Temperature Control by Central AC or by Room
  • Easy to Transport with Rolling Caster
  • Manufactured in Accordance with ANSI / EIARS-310-D, IEC297-2, DIN41491 (PART 1), DIN41494 (PART7) and GB / T3047.2-921 Standards
  • Modular Design, Easily Assemble and Disassemble For Logistic and Relocation of Cabinet to Enable Cost-Effective Solution
  • Locking Mechanism Design on Casters
  • Comes with M6 Mounting Screws and Cage Nuts

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

Configure Options

No configuration menus found for this product.

Technical Specifications

Detailed Specification
Model Number:
WO45AB
RoHS Compliance Version:
Yes
Form Factor:
45U
Loading Capacity:
330 lbs
Supported Chassis Depth:
31" and under
Internal Dimensions:
Depth: Outer post-to-post:31" max/ 9.5" min
Hole-to-hole:27" max/ 5.5" min
Dimensions (WxHxD):
23.62" x 84.10" x 39.37"
600 mm x 2,136 mm x 1,000 mm
Notes:
- comes with 40 sets of M6 hex screws and cage nuts.
- HTS code: 8473.30.5100 (ECCN is not applicable).
