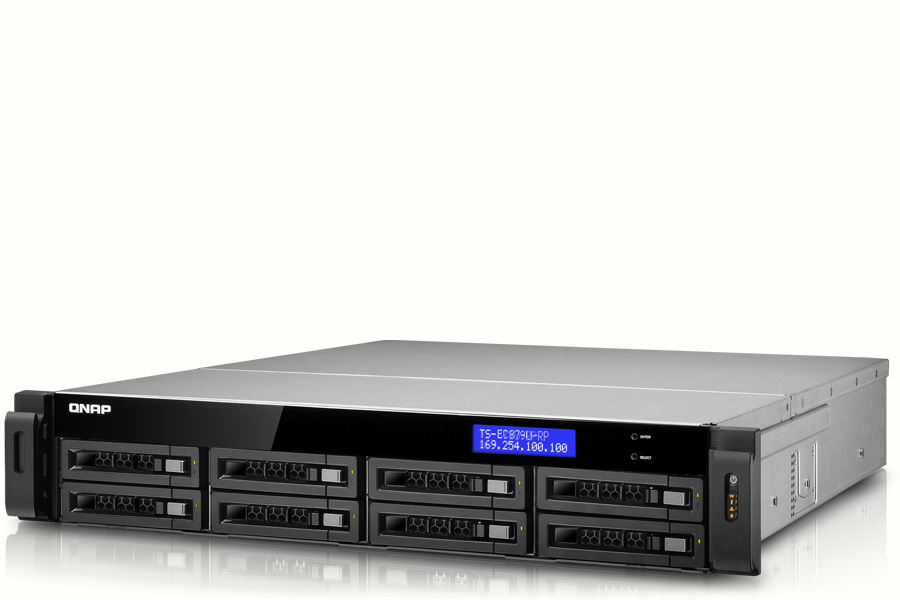

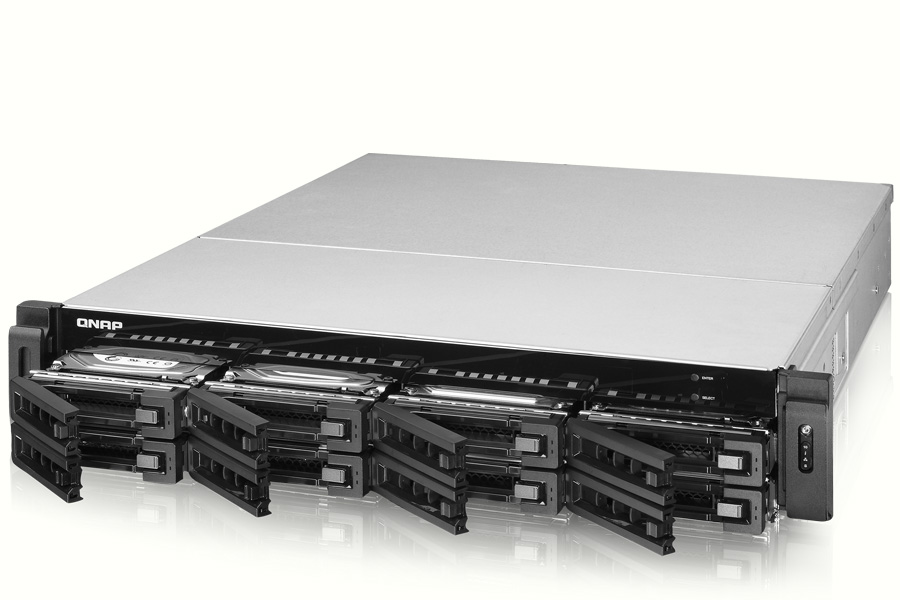

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| Processor | Quad Core Intel® Xeon® E3-1225 v2 Processor 3.2 GHz
|
|---|---|
| Memory | System memory: 4 GB DDR3 ECC RAM
Memory module pre-installed: 4 GB x1 Total memory slots: 4 Memory expandable up to: 32 GB (8GB x4) Note: When upgrading RAM to more than 28GB, the original 4GB RAM modules must be removed. Flash Memory:
512MB DOM
|
| Chassis | 2U Rackmount
|
| Dimensions | 3.46"(H) x 17.28"(W) x 20.47"(D)
|
| Drive Bays | 8x hot-swappable and lockable tray
support 8x 3.5” or 2.5” SATA 6Gb/s, SATA 3Gb/s hard drive or SSD |
| Expansion Slots | 2 (for network and storage expansion)
|
| Power Supply | Input: 100-240V AC, 47-63Hz
Output: 300W |
| Front Panel | Select Button
Enter Button
Power Button
LED Indicators:
Status, 10 GbE, LAN, eSATA, hard drives
|
| Input / Output | LAN Port:
4 x Gigabit RJ-45 Ethernet port (Optional dual-port 10 Gb and 1 Gb network card are supported) USB: 2x USB 3.0 port (rear) 4x USB 2.0 port (rear) Support USB printer, pen drive, USB hub, and USB UPS etc. eSATA: 2 (rear)
|
| Cooling | 3x 6 cm smart cooling fan
|
| Detailed Specification | Sound Level (dB):
Standby: 54.57 dB In operation: 54.6 dB (with 8 x 1TB hard drives installed) Power Consumption (W): Sleep mode: 68W In Operation: 132W (with 8 x 1TB hard drives installed) Temperature: 0~40˚C Relative Humidity: 5~95% RH non-condensing, wet bulb: 27˚C |
